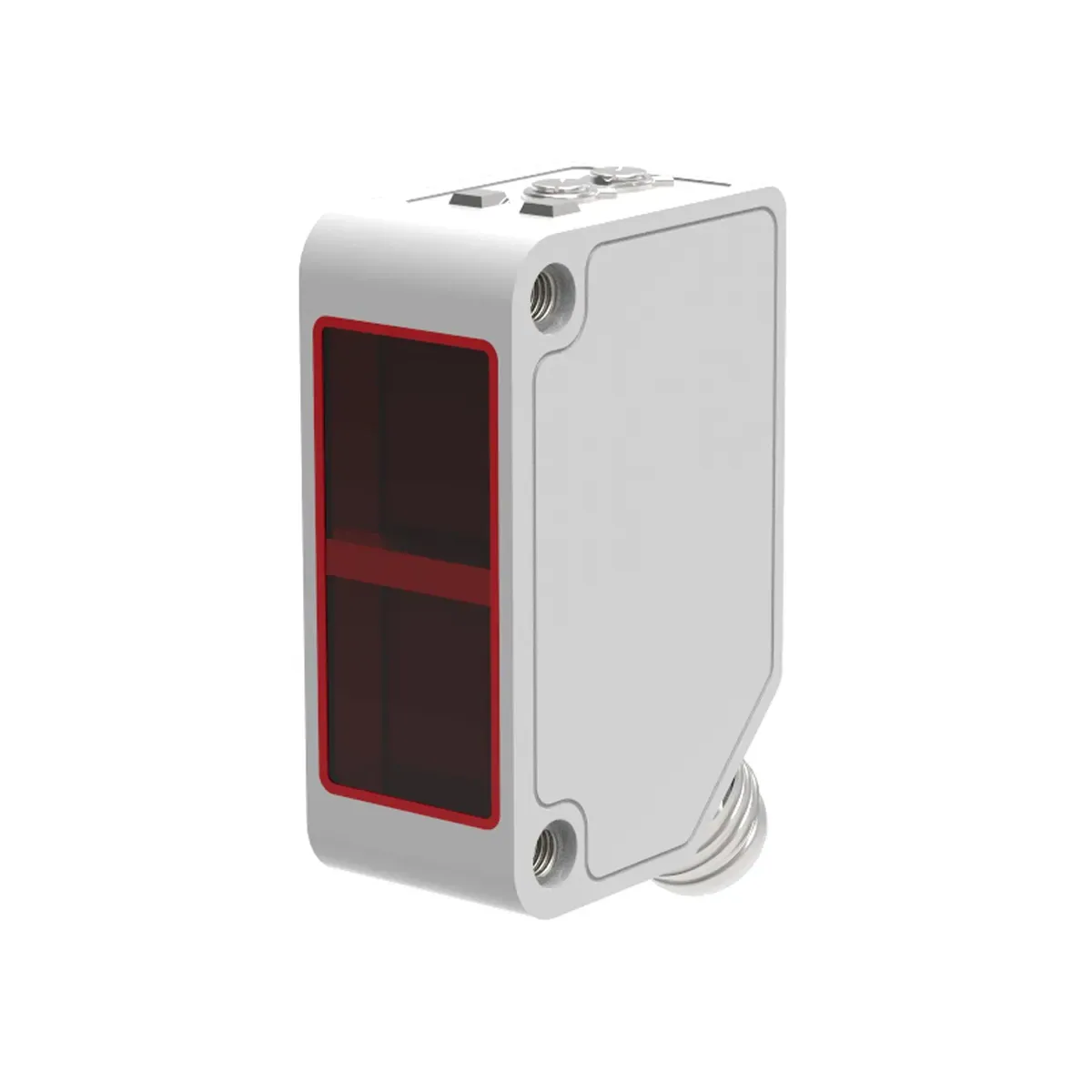

Lanbao PSFT-BC30DPB 30cm Sensing Range, Output PNP NO+NC, Diameter Prismatic Diffuse Reflective Photoelectric Sensor

Lanbao PSFT-BC30DPB 30cm Sensing Range, Output PNP NO+NC, Diameter Prismatic Diffuse Reflective Photoelectric Sensor

Lanbao PSFT-BC30DPB 30cm Sensing Range, Output PNP NO+NC, Diameter Prismatic Diffuse Reflective Photoelectric Sensor, is a Lanbao-brand product in the diffuse reflective category. Product code is PSFT-BC30DPB. Lanbao PSFT-BC30DPB 30 cm Diffuse Reflective Photoelectric Sensor, PNP Transistor Output (NO + NC), 10–30V DC, 1 kHz, IP67 Lanbao PSFT-BC30DPB is an industrial photoelectric sensor with a prismatic optical head, operating on the Diffuse Reflective (reflector-free, reads light reflected directly from the object) principle. Provides stable presence detection, largely independent of color and surface, up to 30 cm. The built-in IR LED light source supports stable signal generation by increasing the receiver's immunity to ambient light and surface interference. PNP transistor (sourcing output) outputs (NO + NC) can be used simultaneously in PLC and DC panels for both primary triggering and inverse-logic monitoring. 1 kHz switching speed offers a fast and reliable triggering band in the short-range reflective sensor class. Technical Specifications Detection Distance: 0–300 mm ( 30 cm / 0.3 m, reflectorless, off the object ) Detection Principle: Diffuse Reflective ( No reflector required ) Model / SKU: PSFT-BC30DPB Output: PNP transistor, NO + NC , 1 kHz Supply / Connection: 10–30V DC, wired connection Light Source: IR LED Protection Rating: IP67 Operating Temperature: −25°C … +55°C Use Environment: Conveyors, production lines, machine automation, PLC/DC panel digital inputs Applications Detection of opaque products, packages and objects up to 30 cm Presence and position control in machine automation PNP sourcing (sourcing input) digital input triggering on PLCs Simultaneous status monitoring and inverse scenario control with NO/NC dual logic Technical Information The sensor is of the Diffuse (reflection off the object) class; no reflector is used. Detection is done in reflective mode (receiver and transmitter in the same housing) through a single housing. It is a PNP (sourcing output) and is connected to the PLC as a sourcing input. At 30 cm, the correct mounting is the axial light-reading position directly off the object. NO + NC offers dual logic control and monitoring from a single sensor. Provides single-sided reflective sensing; it is not a through-beam system. Advantages: Lanbao PSFT-BC30DPB is a compact sensor offering stable, repeatable optical detection without a reflector up to 30 cm. PNP NO + NC dual transistor output enables both triggering and inverse-logic monitoring from a single device, increasing logic flexibility in PLC and DC panel applications. 1 kHz fast switching produces a reliable, noise-free digital signal in short-range object detection. IR LED optical technology provides strong immunity to ambient light and bright-surface interference. IP67 protection makes the sensor resistant to dust, moisture and water, providing high reliability in harsh industrial field conditions. 10–30V DC wide supply compatibility allows direct integration with PLC and DC control systems without needing an additional interface.
