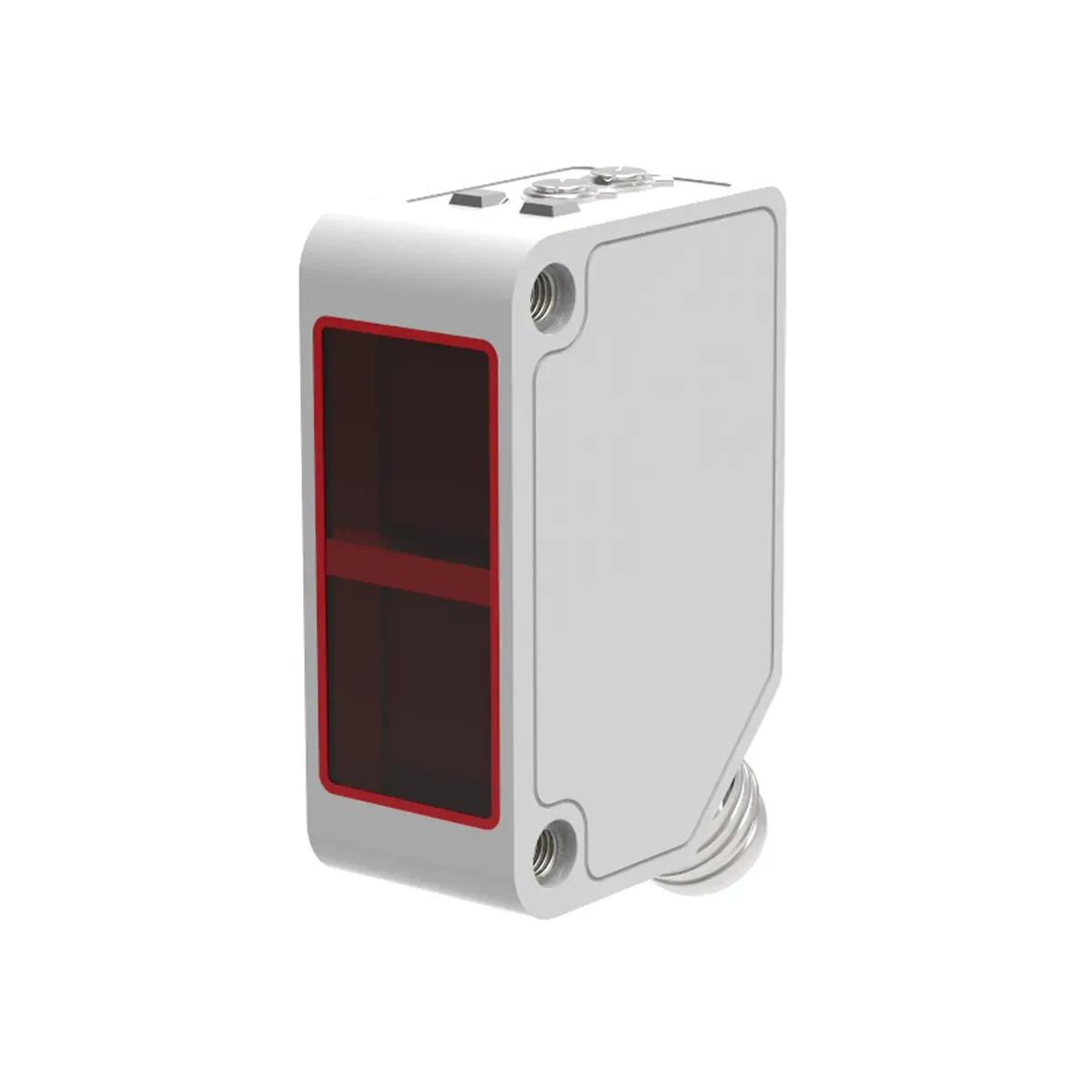

Lanbao PSFT-BC30DPB-E1 30cm Sensing Range, Output PNP NO+NC, Diameter Prismatic Diffuse Reflective Photoelectric Sensor

Lanbao PSFT-BC30DPB-E1 30cm Sensing Range, Output PNP NO+NC, Diameter Prismatic Diffuse Reflective Photoelectric Sensor

Lanbao PSFT-BC30DPB-E1 30cm Sensing Range, Output PNP NO+NC, Diameter Prismatic Diffuse Reflective Photoelectric Sensor is a Lanbao brand product in the diffuse reflective category. Product code is PSFT-BC30DPB-E1. Lanbao PSFT BC30DPB E1 30 cm Diffuse Reflective Photoelectric Sensor, PNP Output (NO + NC), 10-30V DC, 1 kHz, IP67 Lanbao PSFT-BC30DPB-E1 is an industrial photoelectric sensor with a prismatic optical head, operating on the Diffuse Reflective (reflector-free, reads reflection directly from the object) principle. Provides stable presence detection, independent of color and surface, up to 30 cm. The built-in IR LED light source supports stable reading of the returning light. PNP transistor outputs (NO + NC) can be used simultaneously in PLC and DC panels for primary triggering and inverse-logic status monitoring. 1 kHz switching speed offers a reliable triggering band in fast automation applications. Technical Specifications Detection Distance: 0-300 mm ( 30 cm / 0.3 m, off the object ) Detection Principle: Diffuse Reflective (reflection off the object, no reflector required) Model / SKU: PSFT-BC30DPB-E1 Output: PNP transistor ( NO + NC ), 1 kHz Supply / Connection: 10-30V DC, wired Light Source: IR LED Protection Rating: IP67 Operating Temperature: −25°C … +55°C Use Environment: Production lines, conveyors, machine and PLC/DC panel automation Applications Detection of opaque products and objects up to 30 cm Presence/position control in machine automation PNP sourcing input triggering and NO/NC status monitoring on PLCs DC automation lines requiring ambient light and optical noise immunity Technical Information The sensor is of the Diffuse Reflective class, is not reflector-based and does not require a reflector. At 30 cm, correct use is axial light-reading mounting directly off the object. PNP (sourcing output), connected to the PLC as a sourcing input. The NO + NC dual signal provides logic control and monitoring at the same time. The E1 series is a revised series with improved background and optical noise immunity. Advantages: Lanbao PSFT-BC30DPB-E1 provides reliable triggering in repetitive automation lines with high stability in short-range optical detection, independence from surface and color, and fast switching at 1 kHz. PNP NO + NC dual output offers both primary logic control and inverse-state monitoring from a single sensor. IR LED light source provides strong immunity to ambient light and surface reflection noise. IP67 protection makes the sensor resistant to dust, moisture and water, improving reliability in industrial field use. 10-30V DC supply range offers directly compatible integration with PLC and DC panel systems without the need for an additional interface.
