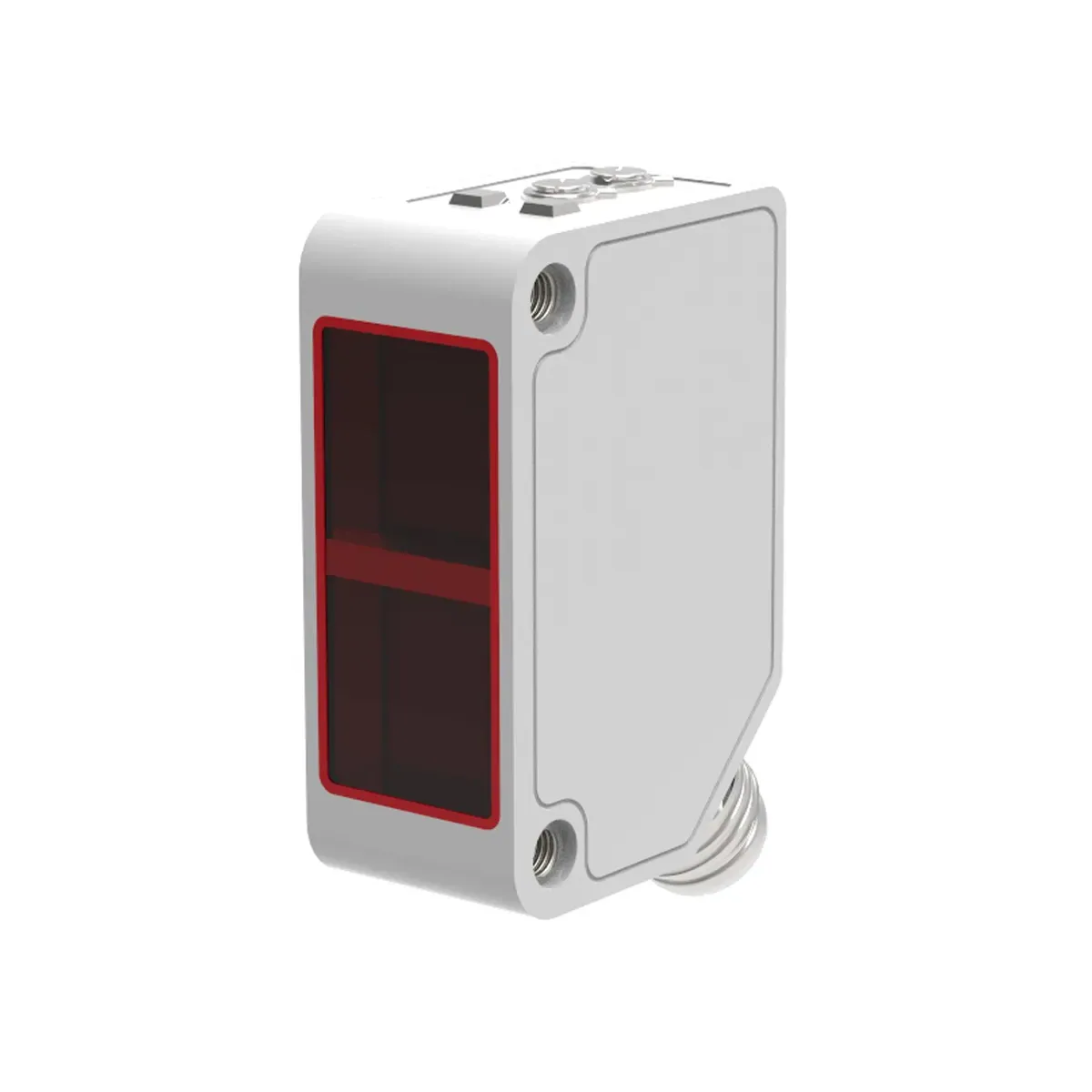

Lanbao PSFT-BC80DNB 80cm Detection, Output NPN NO+NC, Diameter Prismatic Diffuse Reflective Photoelectric Sensor

Lanbao PSFT-BC80DNB 80cm Detection, Output NPN NO+NC, Diameter Prismatic Diffuse Reflective Photoelectric Sensor

Lanbao PSFT-BC80DNB 80cm Detection, Output NPN NO+NC, Diameter Prismatic Diffuse Reflective Photoelectric Sensor, is a Lanbao-brand product in the diffuse reflective category. Product code is PSFT-BC80DNB. Lanbao PSFT BC80DNB 80 cm Diffuse Reflective Photoelectric Sensor, NPN Output (NO + NC), 10-30V DC, 1 kHz, IP67 Lanbao PSFT BC80DNB is an industrial optical photoelectric sensor operating on the Diffuse Reflective principle. Provides highly stable presence detection directly off the object up to 80 cm. The built-in IR LED light source supports stable, noise-free signal reading at the receiver. The NPN (sinking output) NO + NC dual transistor output can be used simultaneously in PLC and DC panels for normal triggering and inverse logic status monitoring. 1 kHz switching speed offers reliable digital triggering on fast automation lines. Technical Specifications Detection Distance: 0-800 mm (80 cm / 0.8 m, reflectorless, off the object) Detection Principle: Diffuse Reflective (reflection off the object, no reflector required) Model / SKU: PSFT-BC80DNB Output: NPN transistor (NO + NC), 1 kHz Supply / Connection: 10-30V DC, wired Protection Rating: IP67 Operating Temperature: −25°C … +55°C Use Environment: Conveyors, production lines, position/presence control, machine and panel automation Applications Detection of opaque objects, products and packages up to 80 cm NPN sinking input triggering and NO/NC status monitoring on PLCs Presence and position control in machine automation DC automation applications requiring suppression of ambient light and surface noise Technical Information The sensor is of the Diffuse Reflective class, is not reflector-based and does not require a reflector. At 80 cm, correct use is axial detection directly off the object. The output is NPN (sinking output) type and is read as a sinking input on the PLC. Provides simultaneous logic control and status monitoring with NO + NC from a single sensor. 1 kHz switching is a high and reliable triggering band for the reflective class. Advantages (Bottom): Lanbao PSFT BC80DNB is a solution offering stable optical detection without a reflector up to 80 cm, independent of color and surface; thanks to its NPN NO + NC dual transistor output, it allows both main triggering and inverse logic status monitoring from a single device. 1 kHz switching speed produces a reliable, noise-free digital signal on fast automation lines. IR LED light source provides strong immunity to ambient light and surface reflection noise. IP67 protection rating makes the sensor resistant to dust, moisture and water, improving field reliability. 10-30V DC wide supply range offers directly compatible integration with PLC and DC control panels.
