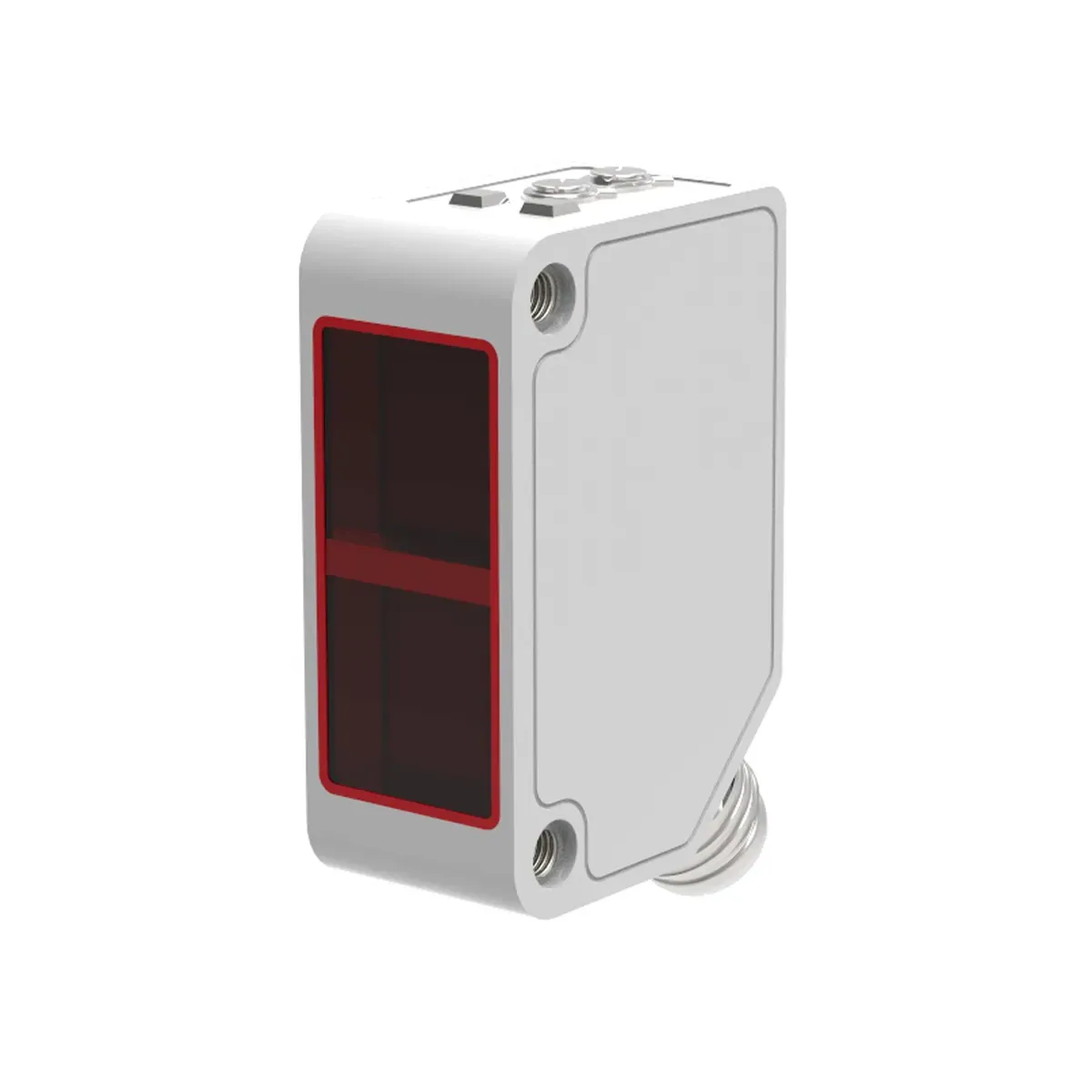

Lanbao PSFT-BC80DPB 80cm Sensing Range, Output PNP NO+NC, Diameter Prismatic Diffuse Reflective Photoelectric Sensor

Lanbao PSFT-BC80DPB 80cm Sensing Range, Output PNP NO+NC, Diameter Prismatic Diffuse Reflective Photoelectric Sensor

Lanbao PSFT-BC80DPB 80cm Detection, Output PNP NO+NC, Rectangular Diffuse Reflective Photoelectric Sensor, is a Lanbao-brand product in the diffuse reflective category. Product code is PSFT-BC80DPB. Lanbao PSFT BC80DPB 80 cm Diffuse Reflective Photoelectric Sensor, PNP Output (NO + NC), 10-30V DC, 1 kHz, IP67 Lanbao PSFT BC80DPB is an industrial optical photoelectric sensor operating on the Diffuse Reflective (reflector-free, reads reflection directly from the object) principle. Provides stable presence detection, independent of color and surface, up to 80 cm. The built-in IR LED light source supports stable, noise-free signal reading at the receiver. PNP transistor outputs (NO + NC) can be used simultaneously in PLC and DC panels for sourcing input triggering and inverse-logic status monitoring. 1 kHz switching speed offers reliable, repeatable digital triggering on fast automation lines. Technical Specifications Detection Distance: 0-800 mm (80 cm / 0.8 m, reflectorless, off the object) Detection Principle: Diffuse Reflective (reflection off the object, no reflector required) Model / SKU: PSFT-BC80DPB Output: PNP transistor (NO + NC), 1 kHz Supply / Connection: 10-30V DC, wired Protection Rating: IP67 Operating Temperature: −25°C … +55°C Use Environment: Conveyors, production lines, machine and panel automation, PLC/DC digital inputs Applications Detection of opaque objects, products and packages up to 80 cm Presence and position control in machine automation PNP sourcing input triggering and NO/NC status monitoring on PLCs DC automation scenarios requiring fast switching and ambient light immunity Technical Information The sensor is of the Diffuse Reflective class, is not reflector-based and does not require a reflector. At 80 cm, correct use is axial light-reading mounting directly off the object. The output is PNP (sourcing output) type and connects to the PLC as a sourcing input. Provides simultaneous logic control and status monitoring with NO + NC from a single sensor. 1 kHz switching is a high and reliable triggering band for the reflective class. Advantages (Bottom): Lanbao PSFT BC80DPB is a compact field sensor offering stable optical detection without a reflector up to 80 cm, independent of color and surface, and reducing the need for additional interface hardware in PLC and DC panel automation. PNP NO + NC dual transistor output provides both primary triggering and inverse-logic monitoring from a single sensor. 1 kHz switching speed produces a reliable, noise-free digital signal on fast, repetitive automation lines. IR LED light source offers strong immunity to ambient light and bright-surface reflection noise. IP67 protection rating makes the sensor resistant to dust, moisture and water, providing high reliability in harsh field conditions. 10-30V DC supply range offers seamless integration directly compatible with industrial DC control and PLC digital input systems.
