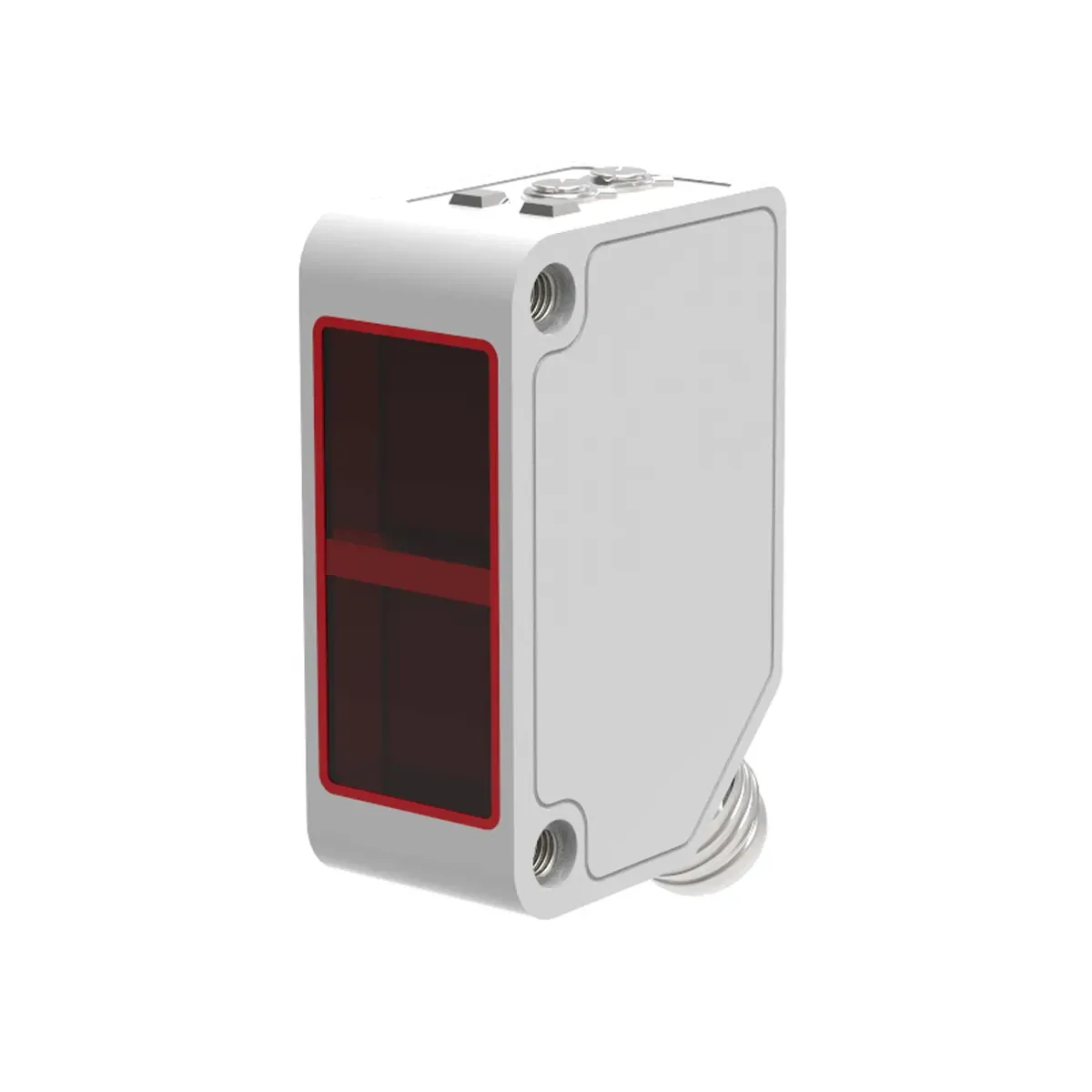

Lanbao PSFT-DC80DNB-E1 80cm Sensing Range, Output NPN NO+NC, Diameter Rectangular Diffuse Reflective Photoelectric Sensor

Lanbao PSFT-DC80DNB-E1 80cm Sensing Range, Output NPN NO+NC, Diameter Rectangular Diffuse Reflective Photoelectric Sensor

Lanbao PSFT-DC80DNB-E1 80cm Detection, Output NPN NO+NC, Diameter Rectangular Diffuse Reflective Photoelectric Sensor is a Lanbao brand product in the diffuse reflective category. Product code is PSFT-DC80DNB-E1. Lanbao PSFT DC80DNB E1 80 cm Diffuse Reflective Photoelectric Sensor, NPN Output (NO + NC), 10-30V DC, 1 kHz, IP67 Lanbao PSFT DC80DNB E1 is an industrial optical photoelectric sensor operating on the Diffuse Reflective (reflection from the object) detection principle. Provides stable and reliable presence detection directly off the object up to 80 cm. The built-in IR LED light source supports noise-free and stable reading of the light returning from the object. NPN transistor outputs (NO + NC) can be used simultaneously in PLC and DC control panels for sinking input triggering and inverse logic status monitoring. 1 kHz switching speed provides reliable digital triggering on fast automation lines. Technical Specifications Detection Distance: 0-800 mm ( 80 cm / 0.8 m, off the object ) Detection Principle: Diffuse Reflective (reflectorless, reflection off the object) Model / SKU: PSFT-DC80DNB-E1 Output Type: NPN transistor, NO + NC Switching Speed: 1 kHz Supply / Connection: 10-30V DC, wired Protection Rating: IP67 Operating Temperature: −25°C … +55°C Use Environment: Conveyors, production lines, machine automation, package/object detection, panel and PLC digital inputs Applications Detection of opaque products and objects up to 80 cm Presence and position control in machine automation NPN sinking input triggering + NO/NC status monitoring on PLCs DC automation applications requiring high switching speed and noise immunity Technical Information The sensor is of the Diffuse Reflective class and does not require a reflector. At 80 cm, the most stable operation is detection directly off the object. An NPN (sinking output) output is read as a sinking input by the PLC. Provides simultaneous NO + NC logic and status monitoring from a single sensor. The background suppression E1 belongs to the optical revision series and is optimized for stable reflective use. Advantages: This sensor offers stable detection by reflection from the object without a reflector up to 80 cm, and with NPN NO + NC dual output support allows both main triggering and inverse logic monitoring from a single device. 1 kHz switching speed produces a reliable, noise-free digital signal on fast automation lines. IR LED light source offers strong immunity to ambient light and surface reflection noise. IP67 protection rating makes the sensor resistant to dust, moisture and water, improving reliability in industrial field use. 10-30V DC wide supply range provides directly compatible integration with PLC and DC panel automation systems.
