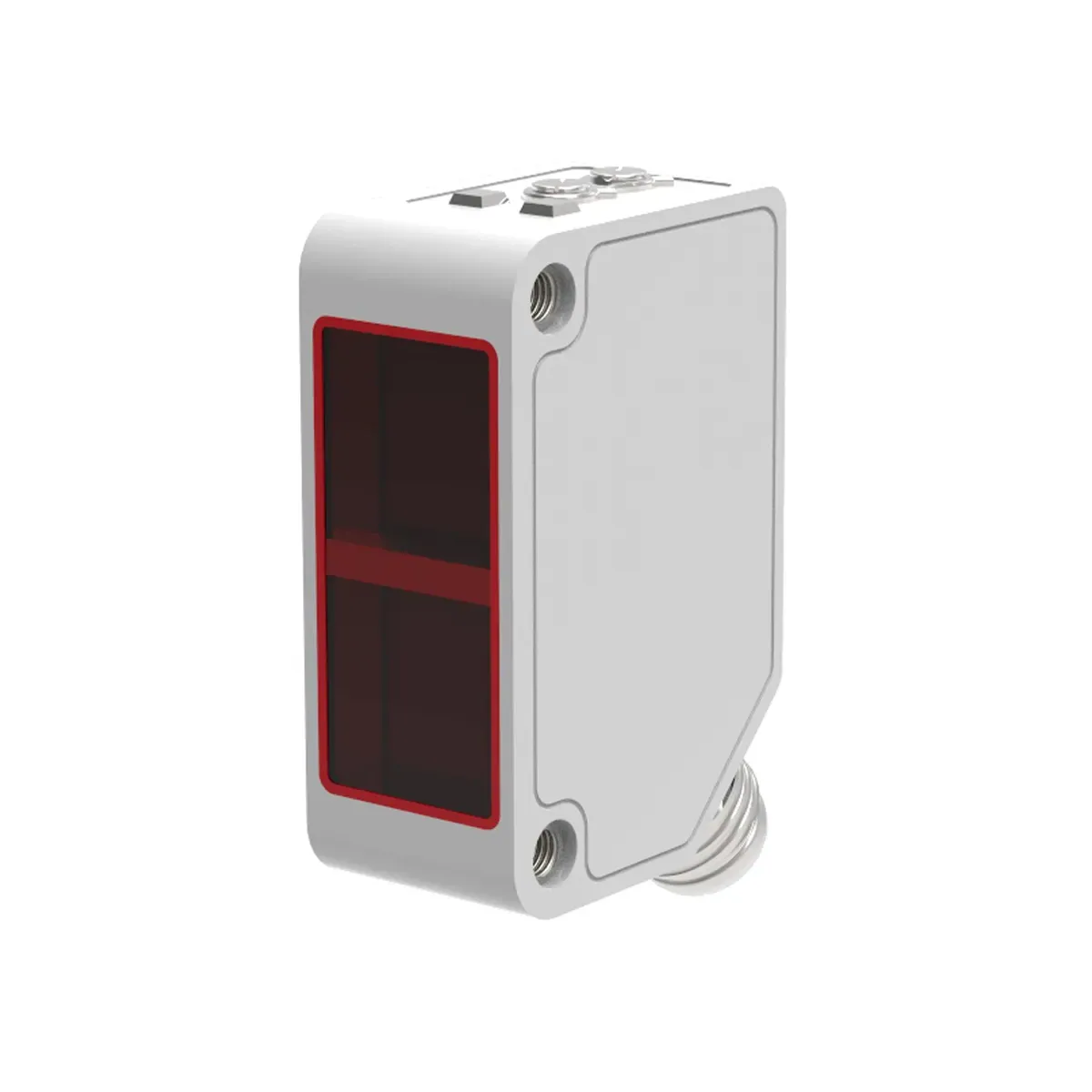

Lanbao PSFT-DC80DPB-E1 80cm Sensing Range, Output PNP NO+NC, Diameter Prismatic Diffuse Reflective Photoelectric Sensor

Lanbao PSFT-DC80DPB-E1 80cm Sensing Range, Output PNP NO+NC, Diameter Prismatic Diffuse Reflective Photoelectric Sensor

Lanbao PSFT-DC80DPB-E1 80cm Detection, Output PNP NO+NC, Diameter Rectangular Diffuse Reflective Photoelectric Sensor is a Lanbao brand product in the diffuse reflective category. Product code is PSFT-DC80DPB-E1. Lanbao PSFT DC80DPB E1 80 cm Diffuse Reflective Photoelectric Sensor, PNP Output (NO + NC), 10-30V DC, 1 kHz, IP67 Lanbao PSFT DC80DPB E1 is an industrial optical photoelectric sensor operating on the Diffuse Reflective (reflector-free, reads reflection directly from the object) principle. Provides stable presence detection, independent of color and surface, up to 80 cm. The IR LED light source in the transmitter supports noise-free and stable signal reading at the receiver. PNP NO + NC dual transistor output can be used simultaneously in PLC and DC panels for normal triggering (sourcing input) and inverse-logic status monitoring. 1 kHz switching speed offers a reliable digital triggering band in fast automation applications with high repetition. Technical Specifications Detection Distance: 0-800 mm (80 cm / 0.8 m, off the object) Detection Principle: Diffuse Reflective (reflection off the object, no reflector required) Model / SKU: PSFT-DC80DPB-E1 Output: PNP transistor (NO + NC), 1 kHz Supply / Connection: 10-30V DC, wired Protection Rating: IP67 Operating Temperature: −25°C … +55°C Use Environment: Conveyors, production lines, machine and panel automation, position/presence control, PLC/DC digital input systems Applications Detection of opaque objects, products and packages up to 80 cm Presence and position control in machine automation PNP sourcing input triggering and NO/NC status monitoring on PLCs DC automation scenarios requiring high switching speed and noise immunity Technical Information The sensor is of the Diffuse Reflective class, is not reflector-based and does not require a reflector. At 80 cm, correct use is axial light-reading mounting directly off the object. The output is PNP (sourcing output) type and connects as a sourcing input on the PLC. Provides simultaneous logic control and status monitoring with NO + NC from a single sensor. The E1 series is a revised series with improved background and optical noise immunity. Advantages: Lanbao PSFT DC80DPB E1 is a compact field sensor that offers stable detection without a reflector up to 80 cm, independent of color and surface, and reduces the need for additional hardware in panel and PLC automation. PNP NO + NC dual output provides both primary triggering and inverse-logic monitoring from a single device. 1 kHz switching produces a reliable, noise-free digital signal at high speed for the reflective class. IR LED light source offers strong immunity to ambient light and bright-surface reflection noise. IP67 protection rating makes the sensor resistant to dust, moisture and water, improving field reliability. 10-30V DC supply range provides seamless integration directly compatible with industrial DC control systems.
