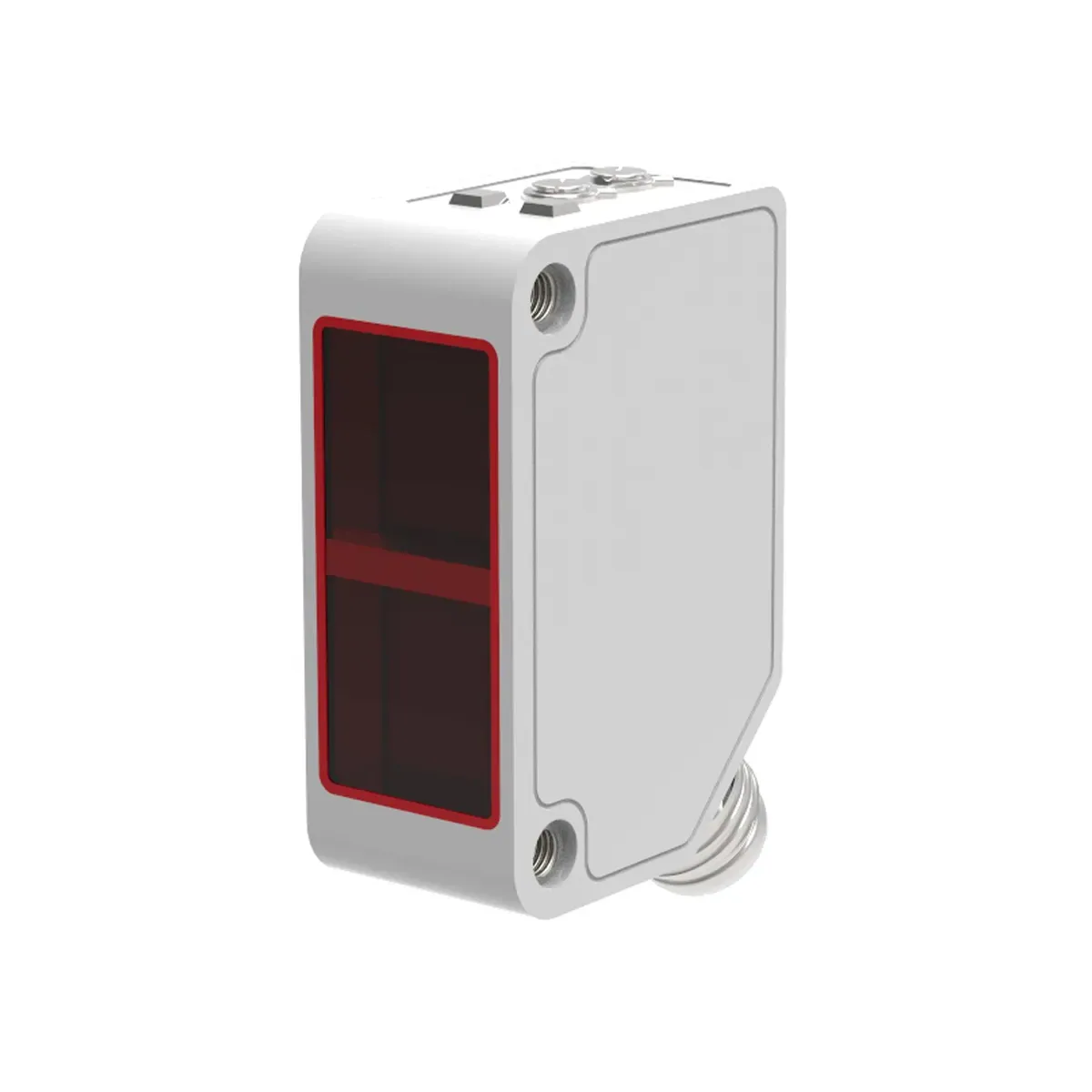

Lanbao PSFT-DM2DPB-E1 2mt Sensing Range, Output PNP NO+NC, Diameter Prismatic Retro-Reflective Photoelectric Sensor

Lanbao PSFT-DM2DPB-E1 2mt Sensing Range, Output PNP NO+NC, Diameter Prismatic Retro-Reflective Photoelectric Sensor

Lanbao PSFT-DM2DPB-E1 2mt Detection, Output PNP NO+NC, Diameter Rectangular Retro-Reflective Photoelectric Sensor is a Lanbao brand product in the rectangular photoelectric sensors category. Product code is PSFT-DM2DPB-E1. Lanbao PSFT-DM2DPB-E1 — 2 m Retro-Reflective Photoelectric Sensor, PNP Output (NO + NC), Prismatic Reflector, IP67 Lanbao PSFT-DM2DPB-E1, is an industrial photoelectric sensor that works on the retro-reflective detection principle (axial reflection back from the prismatic reflector) and provides highly stable object/presence detection up to 2 meters. When used with a prismatic reflector, the built-in IR light source provides strong immunity to ambient light, glossy surfaces and reflection noise. PNP transistor output logics (NO + NC / Normally Open + Normally Closed) are provided at the same time; this allows use in PLC or DC control panels both as primary triggering and as an inverse-logic safety/digital input signal. Technical Specifications Detection Principle: Retro-Reflective (retro-reflection off a prismatic reflector) Model / SKU: PSFT-DM2DPB-E1 Detection Distance: 0 – 200 cm ( 2 meters , with reflector) Output Type / Logic: PNP, NO + NC Switching Speed: ~500 Hz (stable and realistic speed for the retro-reflective sensor class) Supply / Connection: 10 – 30 V DC, wired Protection Rating: IP67 Operating Temperature: −25°C … +55°C Use Environment: Production lines, conveyors, package detection, position/presence control, barrier and panel/PLC digital input applications Applications Opaque package/product presence detection on conveyors and transport systems Gate, barrier and passage control with reflector PNP digital input triggering on PLCs Logic, status and safety signal monitoring with NO/NC dual output Advantages High axis tolerance during installation thanks to prismatic reflector compatibility Flexible automation integration with NO + NC dual logic output Superior resistance to dust, moisture and water with IP67 protection Long life and stable signal in industrial conditions ⚠️ Technical Information This sensor is a Retro-Reflective model and must be used together with a prismatic reflector. At a distance of 2 m, a stable signal is not expected without a reflector. Should be treated as a PNP input on the PLC side.
