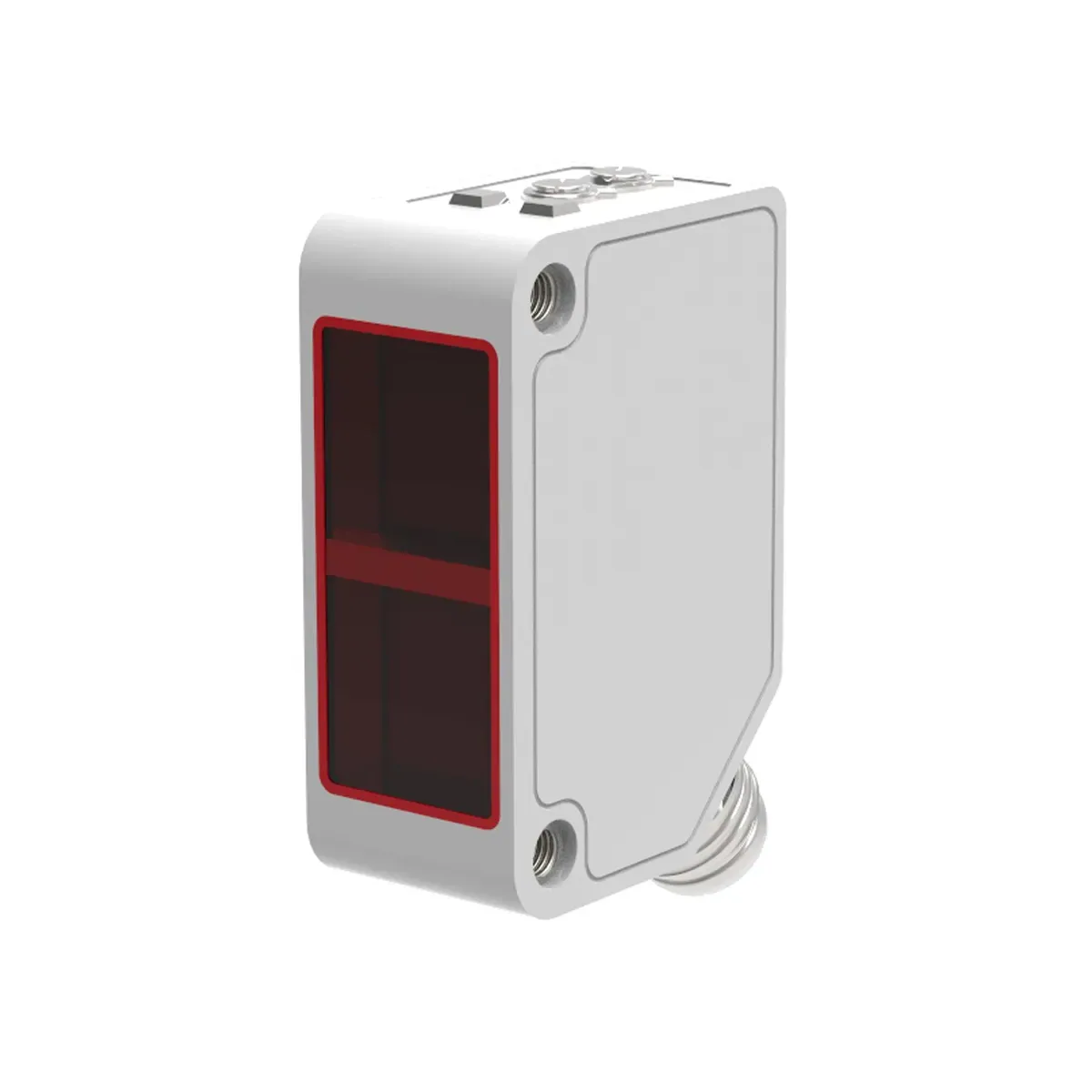

Lanbao PSFT-TM15DPB 15mt Sensing Range, Output PNP NO+NC, Diameter Prismatic Through-Beam Photoelectric Sensor

Lanbao PSFT-TM15DPB 15mt Sensing Range, Output PNP NO+NC, Diameter Prismatic Through-Beam Photoelectric Sensor

Lanbao PSFT-TM15DPB 15mt Detection, Output PNP NO+NC, Rectangular Through-Beam Photoelectric Sensor, is a Lanbao-brand product in the rectangular photoelectric sensors category. Product code is PSFT-TM15DPB. Lanbao PSFT-TM15DPB 15 m Through-Beam Photoelectric Sensor, PNP Output (NO + NC), 10-30V DC, IP67 Lanbao PSFT-TM15DPB is an industrial photoelectric sensor operating on the Through-Beam (separate transmitter and receiver) detection principle, providing long-range, stable presence detection up to 15 meters. In this model, the light source is sent from the transmitter and read directly on the axis by the receiver. This delivers the most reliable detection performance with minimal influence from changes in color, surface, brightness or ambient light. The PNP transistor outputs (NO + NC) on it provide both normal and inverse logic signals simultaneously in PLC and DC automation panels. Technical Specifications Detection Distance: 0-1500 cm ( 15 m , transmitter-receiver opposed mounting) Detection Principle: Through-Beam (opposed, separate transmitter + receiver) Model / SKU: PSFT-TM15DPB Output Logic: PNP, NO + NC Switching Speed: ~500 Hz (stable automation band for opposed photoelectric sensors) Supply / Connection: 10-30 V DC, wired connection Protection Rating: IP67 Operating Temperature: −25°C … +55°C Application Environment: Conveyors, production lines, packaging machines, gate/barrier automation, panel and PLC digital inputs Applications Detection of opaque products, packages and objects up to 15 m Gate, barrier and passage control automation PNP sourcing input triggering and NO/NC status monitoring on PLCs Applications requiring reliable signal and long-range noise immunity Most stable optical detection scenarios with transmitter-receiver axial mounting Advantages Most reliable detection performance with separate transmitter-receiver system Stable signal independent of color and surface Flexible logic control with NO + NC dual output Wide 10-30V DC supply range Suitable for harsh field conditions with IP67 housing durability Technical Information This sensor is of the Through-Beam (opposed) photoelectric class; the transmitter and receiver must be mounted opposite each other on the same axis. The output is PNP (sourcing output) type and connects to the PLC as a sourcing input. At a distance of 15 m, use without a reflector or single-sided use is not suitable; the correct use is a facing transmitter-receiver installation.
