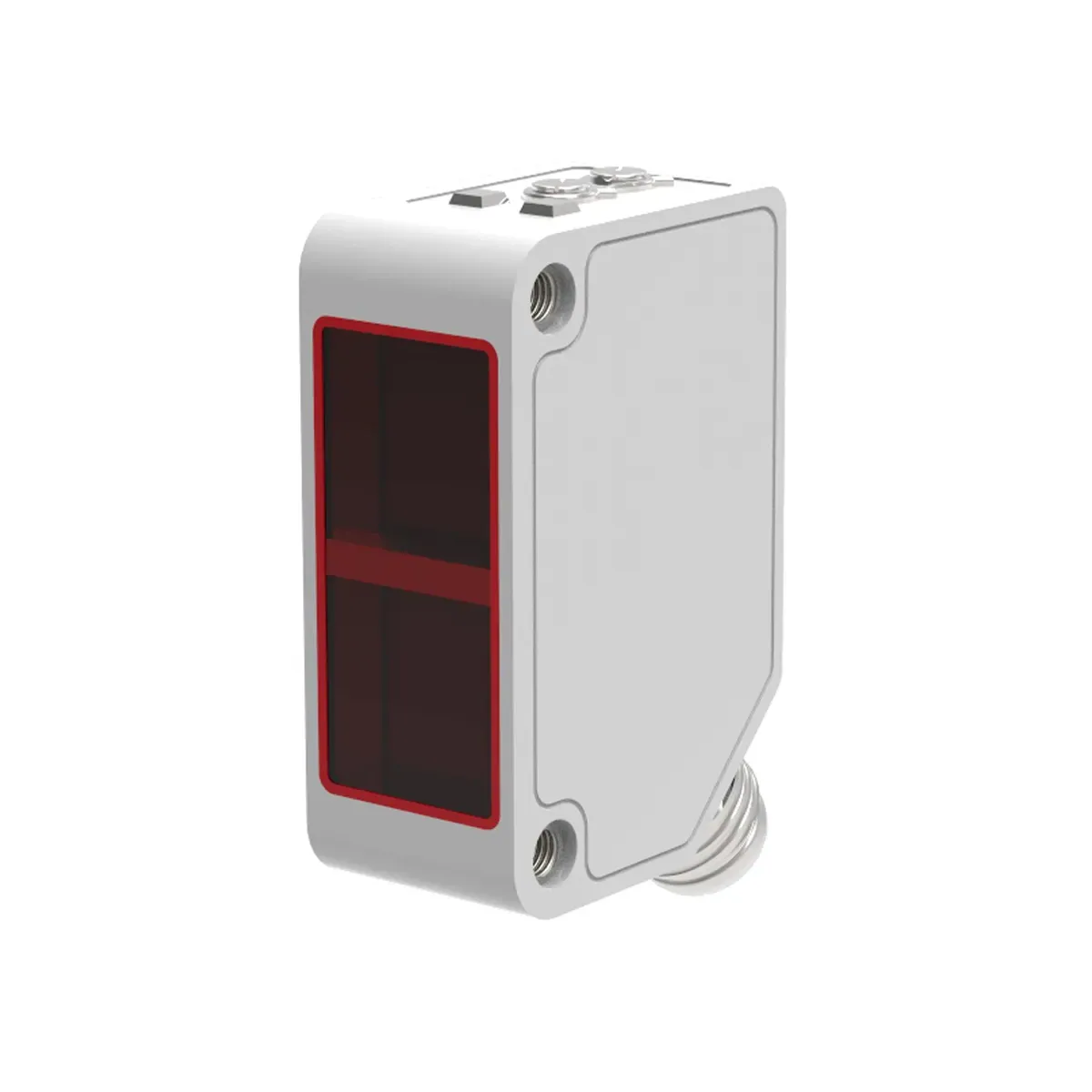

Lanbao PSFT-TM15DPB-E1 15mt Sensing Range, Output NPN NO+NC, Diameter Prismatic Through-Beam Photoelectric Sensor

Lanbao PSFT-TM15DPB-E1 15mt Sensing Range, Output NPN NO+NC, Diameter Prismatic Through-Beam Photoelectric Sensor

Lanbao PSFT-TM15DPB-E1 15mt Detection, Output NPN NO+NC, Diameter Rectangular Through-Beam Photoelectric Sensor is a Lanbao brand product in the rectangular photoelectric sensors category. Product code is PSFT-TM15DPB-E1. Lanbao PSFT-TM15DPB-E1 15 m Through-Beam Photoelectric Sensor, PNP Output (NO + NC), 10-30V DC, IP67 Lanbao PSFT-TM15DPB-E1, is a long-range optical photoelectric sensor whose transmitter and receiver units are mounted on opposite axes (through-beam). Offers the most stable, interference-resistant sensing performance up to 15 meters, independent of color and surface. The built-in IR LED light source is read directly by the receiver, which minimizes the influence of ambient light. The PNP transistor output logics (NO + NC) on the sensor can be used simultaneously in PLC and DC automation systems for monitoring normal and inverse logic signals. Technical Specifications Detection Distance: 0-1500 cm ( 15 m, opposed mounting ) Detection Principle: Through-Beam (separate transmitter + receiver) Model / SKU: PSFT-TM15DPB-E1 Output Logic: PNP, NO + NC Switching Speed: ~500 Hz Supply / Connection: 10-30 V DC, wired Protection Rating: IP67 Operating Temperature: −25°C … +55°C Application: Conveyors, packaging, gate/barrier, PLC digital input triggering Applications Detection of opaque products and packages up to 15 m Gate, barrier and passage automation PNP sourcing input triggering on PLCs Logic and status monitoring via NO/NC Advantages Most reliable signal independent of color and surface NO + NC dual output support 10-30V DC wide supply IP67 field durability Technical Information The sensor is of the Through-Beam (opposed) class; the transmitter and receiver must be mounted opposite each other on the same axis. The output is PNP (sourcing output) type and connects to the PLC as a sourcing input. At 15 m, single-sided use is not suitable; correct mounting is in the form of an opposed transmitter-receiver pair.
