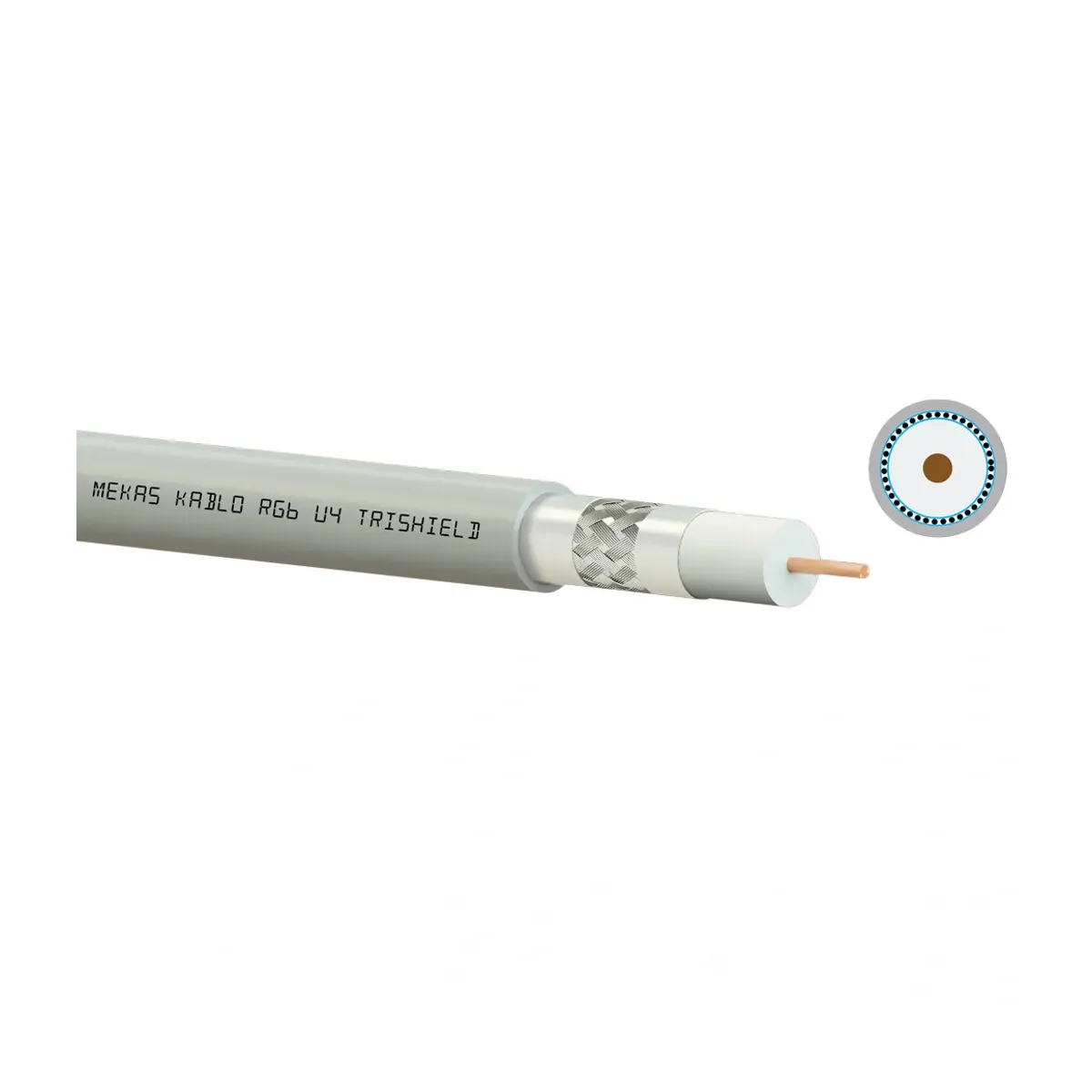

Mekas 1.02 mm RG6 U4 Halogen Free Coaxial Satellite Antenna TV Cable
- Brand: Mekas Kablo
- SKU: 50871
- MPN: 50871
- Price: 812.80 TRY + VAT · incl. VAT 975.36 TRY
- Availability: Made to order
- Satellite-TV Broadcast Cables
- Mekas Kablo Satellite-TV Broadcast Cables
- Selection guide: Satellite-TV Broadcast Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Mekas 1.02 mm RG6 U4 Halogen Free Coaxial Satellite Antenna TV Cable. Satellite-TV Broadcast Cables are used in panel control, intercom, coaxial and silicone heat-resistant lines. Technical data: Core Cross-Section 1.02mm2, Cable Type RG6 U4 - HFFR. The product is sold per meter; the minimum order is 50 meters. Stock code: 50871.
| Core Cross-Section | 1.02 mm² |
|---|---|
| Cable Type | RG6 U4 - HFFR |
| Insulation Material | Fiziksel Köpüklü PE (4,60 mm Ø) |
| Outer Sheath Material | HFFR |
| Outer Sheath Colour | Grey |
| Capacitance | 52 ± 2 pF/m |
| Impedance | 75 ± 3 Ω |
| Velocity of Propagation | %82 |
| Insulation Resistance | >2000 MΩ·km |
| Operating Temperature | -40 °C … +70 °C |
| Minimum Bending Radius | 10 x D |
| Attenuation (20 °C, max.) | 5 MHz: 2,80 dB/100 m; 200 MHz: 9,30 dB/100 m; 400 MHz: 13,70 dB/100 m; 800 MHz: 19,10 dB/100 m; 1000 MHz: 22,00 dB/100 m; 2150 MHz: 32,50 dB/100 m; 2400 MHz: 35,10 dB/100 m; 3000 MHz: 39,30 dB/100 m |
| Standards | EN 50117-2-4 |
| Flame Retardance / Fire Performance | EN 60332-1-2, EN 60754-1/2, EN 61034-2 |
| Cable Shield | AL-PES Bant %100 - Alüminyum Tel Örgü |
