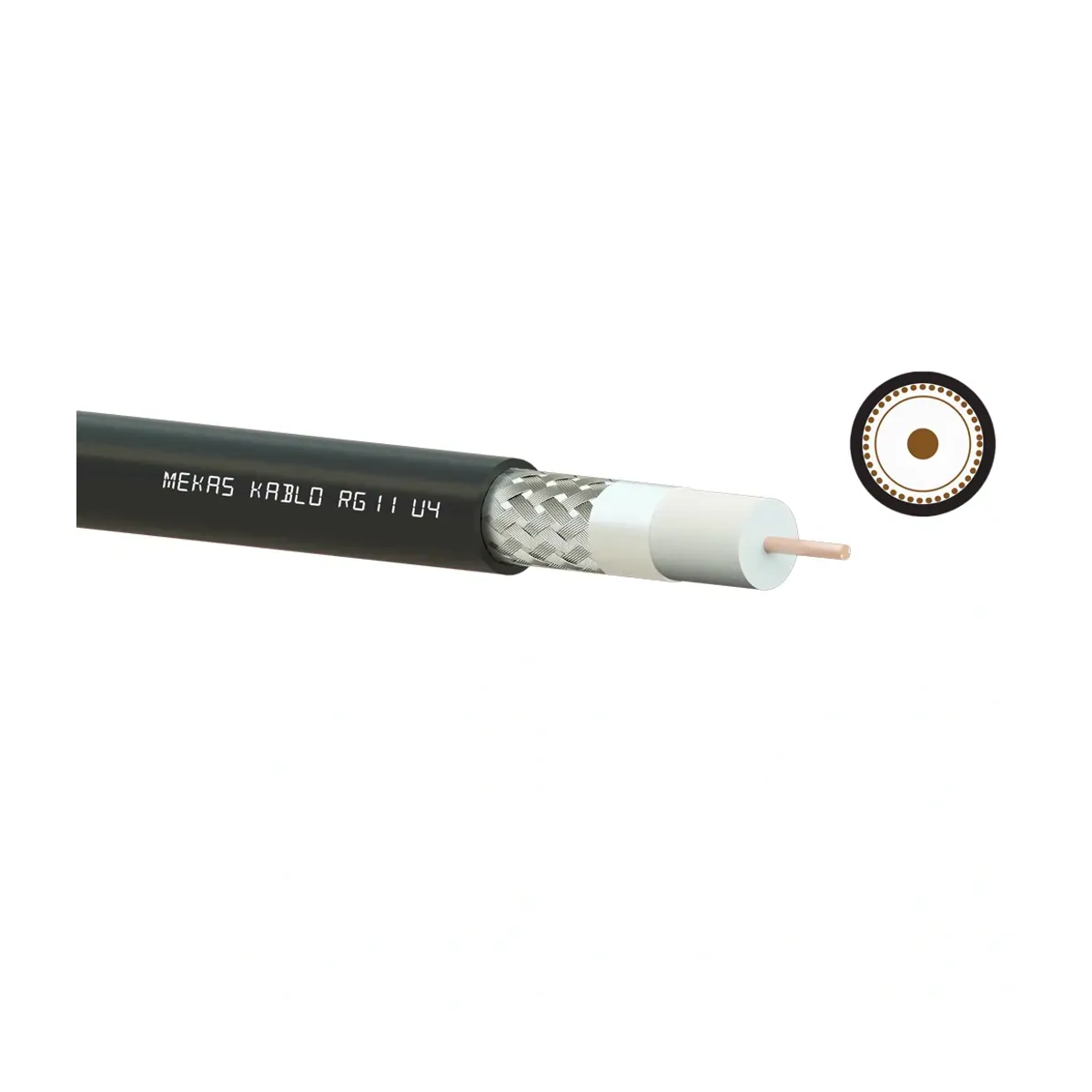

Mekas 1.63 mm RG11 U4 Coaxial Satellite Antenna TV Cable
- Brand: Mekas Kablo
- SKU: 50911
- MPN: 50911
- Price: 1958.15 TRY + VAT · incl. VAT 2349.78 TRY
- Availability: In stock
- Satellite-TV Broadcast Cables
- Mekas Kablo Satellite-TV Broadcast Cables
- Selection guide: Satellite-TV Broadcast Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Mekas 1.63 mm RG11 U4 Coaxial Satellite Antenna TV Cable. Satellite-TV Broadcast Cables are used in panel control, intercom, coaxial and silicone heat-resistant lines. Technical data: Core Cross-Section 1.63mm2, Cable Type RG11 U4. The product is sold per meter; the minimum order is 50 meters. Stock code: 50911.
| Core Cross-Section | 1.63 mm² |
|---|---|
| Cable Type | RG11 U4 |
| Conductor | 1,63 mm Elektrolitik Bakır Tel |
| Insulation Material | Fiziksel Köpüklü PE (7,10 mm Ø) |
| Outer Sheath Colour | Black |
| Capacitance | 52 ± 2 pF/m |
| Impedance | 75 ± 3 Ω |
| Velocity of Propagation | %82 |
| Insulation Resistance | >2000 MΩ·km |
| Operating Temperature | -40 °C … +70 °C |
| Minimum Bending Radius | 10 x D |
| Attenuation (20 °C, max.) | 50 MHz: 3.15 dB/100 m; 200 MHz: 6.18 dB/100 m; 470 MHz: 9.60 dB/100 m; 860 MHz: 13.40 dB/100 m; 1000 MHz: 14.60 dB/100 m; 2150 MHz: 22.32 dB/100 m; 2400 MHz: 24.02 dB/100 m; 3000 MHz: 27.20 dB/100 m |
| Standards | EN 50117-2-4 |
| Cable Shield | AL-PES Bant %100 - Alüminyum Tel Örgü |
