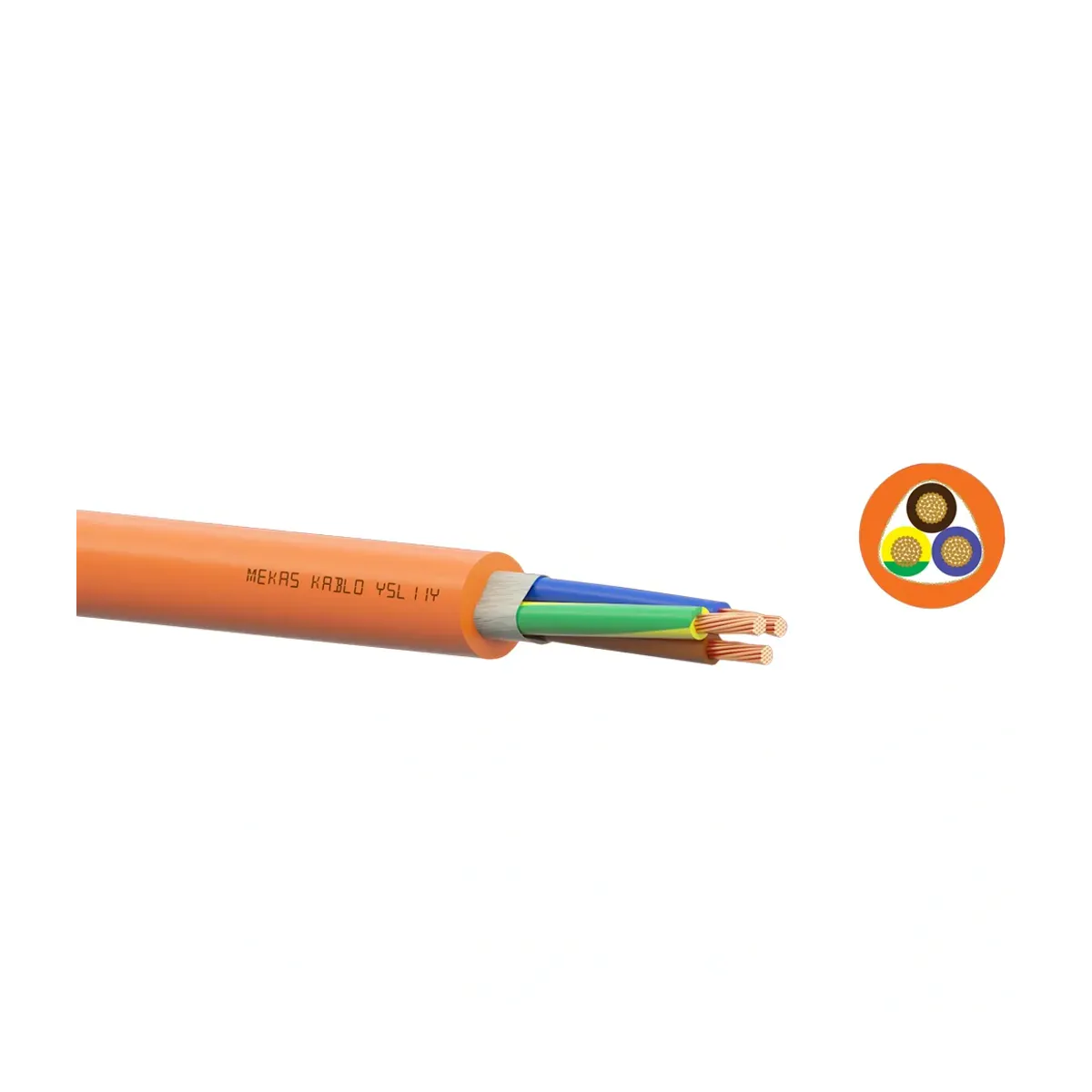

Mekas 2x1 mm2 PVC-PUR YSL11Y Oil and Chemical Resistant Flexible PUR Cable
- Brand: Mekas Kablo
- SKU: 86202
- MPN: 86202
- Price: 1630.60 TRY + VAT · incl. VAT 1956.72 TRY
- Availability: In stock
- PUR Control Cables (YSL11Y / 11YSL11Y)
- Mekas Kablo PUR Control Cables (YSL11Y / 11YSL11Y)
- Selection guide: PUR Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Mekas 2x1 mm2 PVC-PUR YSL11Y Oil and Chemical Resistant Flexible PUR Cable. Technical data: Core Cross-Section 2x1mm2, Cable Type PVC-PUR. The product is sold per meter; the minimum order is 50 meters. Stock code: 86202.
| Core Cross-Section | 2x1 mm² |
|---|---|
| Cable Type | PVC-PUR |
| Conductor | Bükülü Bakır Tel Class 5 |
| Insulation Material | PVC Kompaund |
| Core Colour Code | DIN 47100 Renk Kodlu |
| Separator Tape | PP Non Woven Bant |
| Outer Sheath Material | PUR |
| Outer Sheath Colour | Orange |
| Operating Temperature | -30 °C … +70 °C |
| Minimum Bending Radius | 10 x D |
| Operating Voltage | 300/500 V |
| Standards | EN 60228, EN 50290-2-21, EN 50290-2-22 |
| Flame Retardance / Fire Performance | EN 60332-1-2 |
| Conductor Resistance | 19,50 Ω/km |
| Test Voltage | 1200 V |
