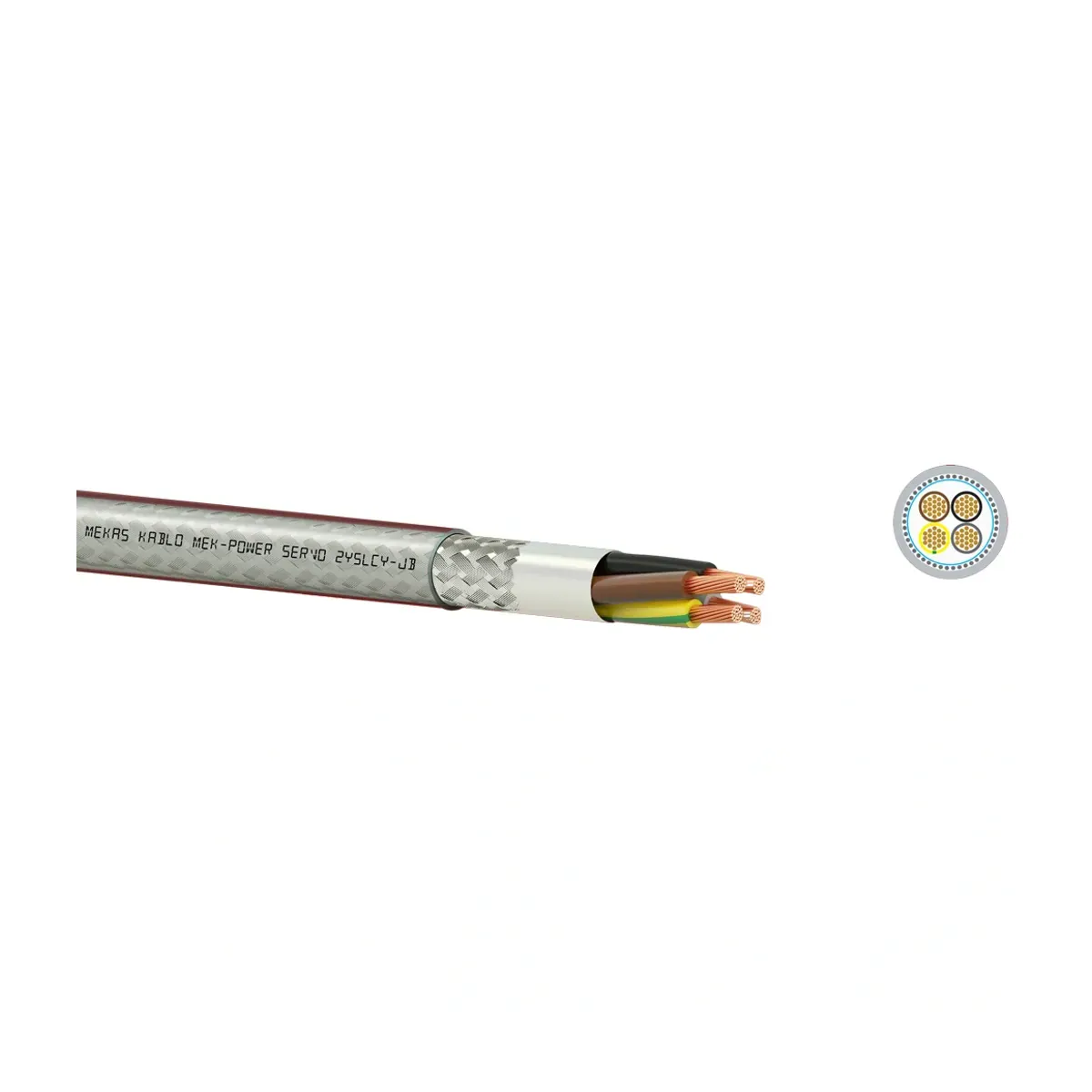

Mekas 2YSLCY-J 4x1.5 mm2 Shielded Servo Motor Power Cable
- Brand: Mekas Kablo
- SKU: 87950
- MPN: 87950
- Price: 5615.25 TRY + VAT · incl. VAT 6738.30 TRY
- Availability: Made to order
- Servo Motor Cables
- Selection guide: Servo Motor Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Mekas 2YSLCY-J 4x1.5 mm2 Shielded Servo Motor Power Cable. Technical data: Core Cross-Section 4x1.5mm2, Cable Type 2YSLCY-J. The product is sold per meter; the minimum order is 50 meters. Stock code: 87950.
| Core Cross-Section | 4x1,5 mm² |
|---|---|
| Cable Type | 2YSLCY-J |
| Conductor | Bükülü Elektrolitik Tavlı Bakır |
| Insulation Material | DIN VDE 0207 Bölüm-2 PE Kompaund |
| Core Colour Code | DIN VDE 0293; TS HD 308 S2 |
| Outer Sheath Material | EN 50363-4-1 PVC Kompaund |
| Minimum Bending Radius | 10 x kablo çapı (Ø) |
| Operating Temperature | Flexible: +5 °C … +70 °C; Fixed: -40 °C … +70 °C |
| Flame Retardance / Fire Performance | IEC 60332-1-2, DIN EN 60332-1-2, EN 60332-1-2 |
| Insulation Resistance | 200 MΩ·km |
| Operating Voltage | Uo/U(Umax): 0,6/1(1,2) kV |
| Test Voltage | 4000 V |
| Conductor Resistance | 13,3 Ω/km |
| Current Carrying Capacity | 20 A |
| Cable Shield | Pes Bant + Al-Pes Bant + Kalaylı Bakır Örgü |
