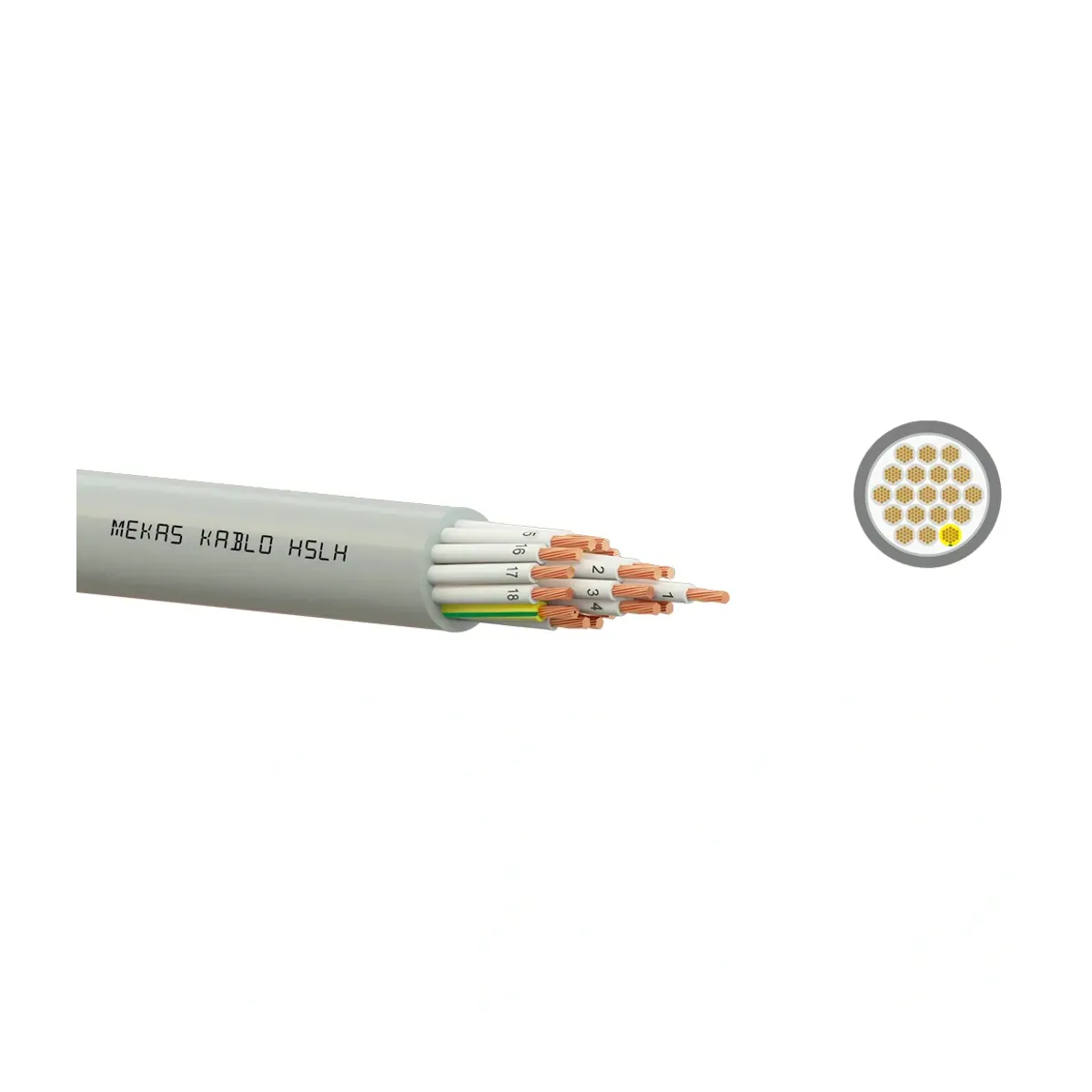

Mekas 8x0.50 mm2 HSLH-JZ Halogen-Free Control Cable
- Brand: Mekas Kablo
- SKU: 88108
- MPN: 88108
- Price: 2775.70 TRY + VAT · incl. VAT 3330.84 TRY
- Availability: Made to order
- HSLH Control Cables
- Mekas Kablo HSLH Control Cables
- Selection guide: HSLH Control Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Mekas 8x0.50 mm2 HSLH-JZ Halogen-Free Control Cable. Control cables are multi-core cables that carry signals in machine and panel control circuits; the YSLY-JZ type is common. Technical data: Core Cross-Section 8x0.50mm2, Cable Type HSLH-JZ. The product is sold per meter; the minimum order is 50 meters. Stock code: 88108.
| Core Cross-Section | 8x0,50 mm² |
|---|---|
| Cable Type | HSLH-JZ |
| Conductor | Flexible bare copper conductors, EN 60228 Class 5 |
| Insulation Material | HFFR compound, EN 50363-7 / TI6 |
| Core Colour Code | Black cores with white numbers acc. to EN 50334 and one yellow-green core (G) |
| Separator Tape | Talk Pudralı |
| Outer Sheath Material | HFFR compound, EN 50363-8 / TM7 |
| Outer Sheath Colour | RAL 7035, Grey |
| Operating Temperature | Fixed: -40 °C … +80 °C; Flexible: -15 °C … +70 °C |
| Minimum Bending Radius | Fixed: 6 x D; Flexible: 15 x D |
| Rated Voltage | Uo/U: 300/500 V |
| Insulation Resistance | Min. 20 MΩ·km |
| Test Voltage | 2000 V (AC 50 Hz) |
| Flame Retardance / Fire Performance | Alev geciktirici testi: EN 60332-1-2 & IEC 60332-1-2; Alev yayılım testi: EN IEC 60332-3-24 Cat C; Duman yoğunluğu testi: EN 61034-2 & IEC 61034-2; Halojensizlik özelliği testi: EN 60754-1/-2 & IEC 60754-1/-2 |
| Outer Diameter | 7,50 mm (±%5) |
