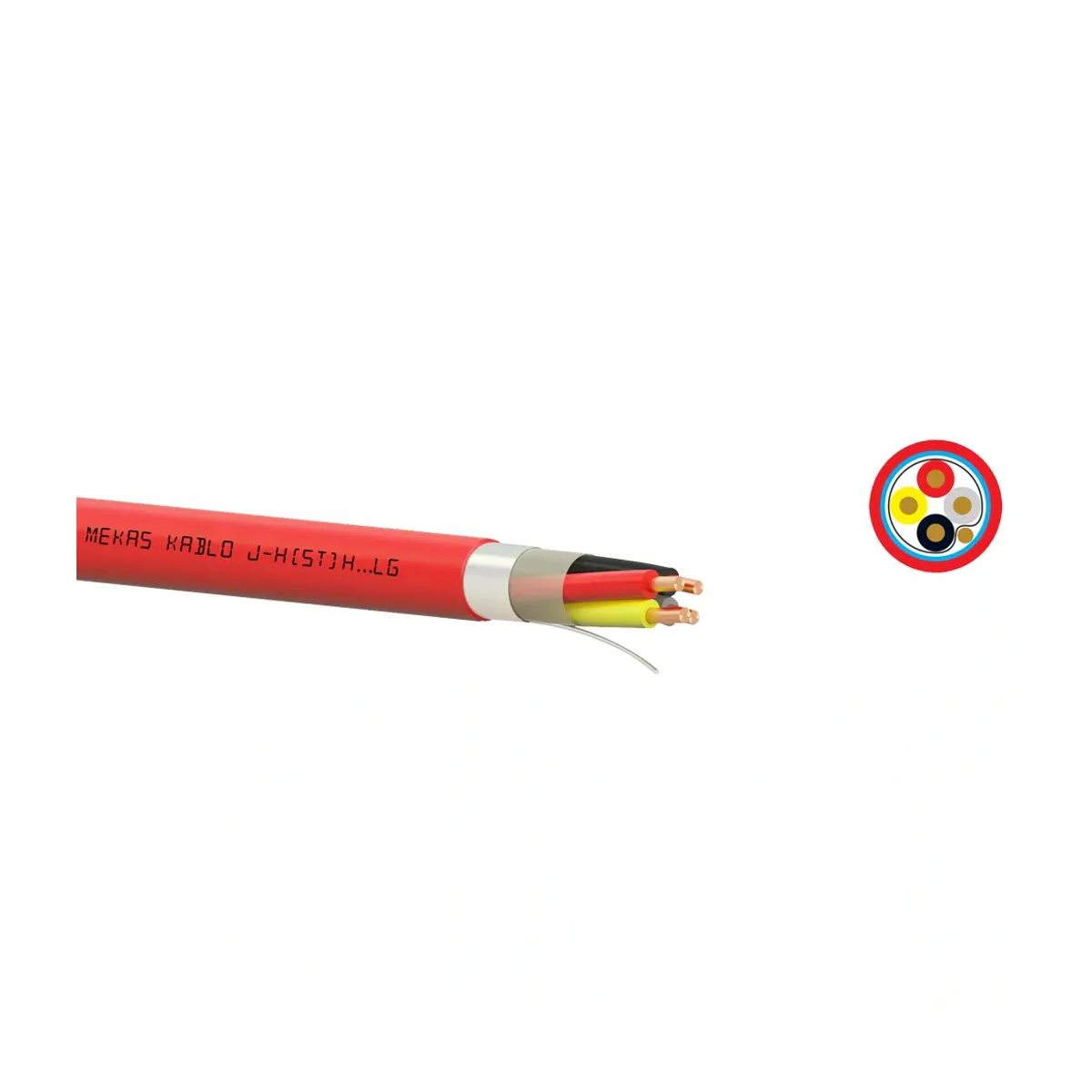

Mekas J-H(St)H Lg 1x2x1.5 mm2 + 0.80 mm Halogen-Free Shielded Fire Alarm Cable
- Brand: Mekas Kablo
- SKU: 30682
- MPN: 30682
- Price: 3615.30 TRY + VAT · incl. VAT 4338.36 TRY
- Availability: Made to order
- Fire Alarm Cables
- Mekas Kablo Fire Alarm Cables
- Selection guide: Fire Alarm Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Mekas J-H(St)H Lg 1x2x1.5 mm2 + 0.80 mm Halogen-Free Shielded Fire Alarm Cable. Fire alarm cables are shielded low-current cables used in detection and notification loops. Technical data: Core Cross-Section 2x2x1.50mm2 + 0.80mm, Cable Type J-H(St)H Lg. The product is sold per meter; the minimum order is 50 meters. Stock code: 30682.
| Core Cross-Section | 1x2x1,5 mm² |
|---|---|
| Cable Type | J-H(St)H Lg |
| Conductor | Elektrolitik bakır tel |
| Insulation Material | HFFR kompaund |
| Core Colour Code | TS 13767 Uygun Renk Kodlaması |
| Stranding | İkili katlar halinde büküm |
| Separator Tape | PES Bant |
| Outer Sheath Material | HFFR |
| Outer Sheath Colour | Red |
| Operating Temperature | -30 °C … +70 °C |
| Minimum Bending Radius | 10 x D |
| Operating Voltage | 300 V |
| Test Voltage | 800 V |
| Capacitance | 100 nF / km |
| Capacitance Unbalance | 300 pF / 100 m |
| Standards | TS 13767; EN 60228; EN 50290-2-26; EN 50290-2-27 |
| Flame Retardance / Fire Performance | EN 60332-1-2 (LSZH); EN 60754-1/2 (LSZH); EN 61034-2 (LSZH) |
| Conductor Loop Resistance | 24,2 Ω/km |
| Cable Shield | Toprak Teli - AL-PES Bant %100 |
