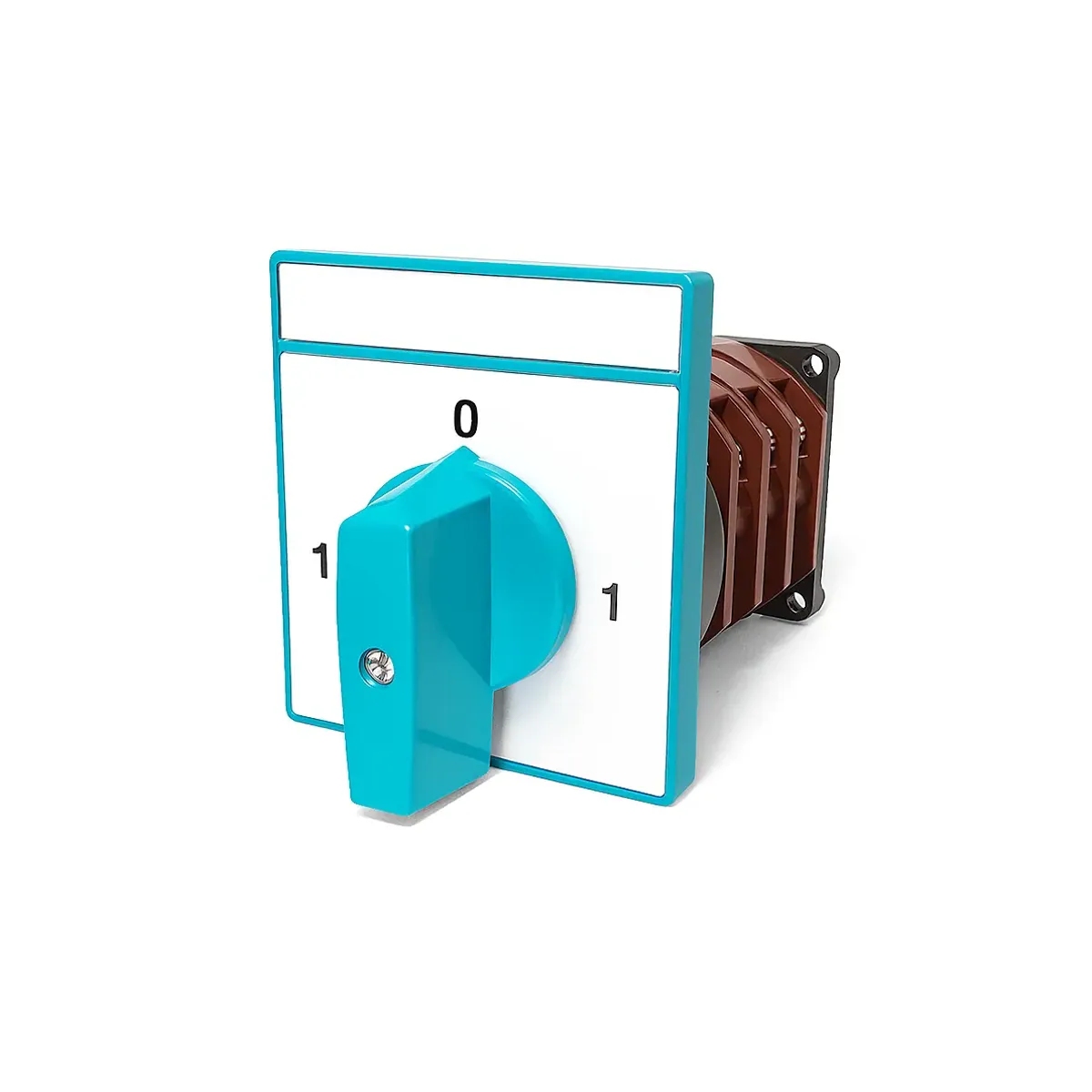

Metop 10A Continuous-Rotation 1-Phase On-Off Switch
- Brand: Metop
- SKU: MT037 - 10A
- Price: 196.56 TRY + VAT · incl. VAT 235.87 TRY
- Availability: In stock
- On-Off Switches
- Metop On-Off Switches
- Selection guide: On-Off Cam Switches (0-1) Selection Guide
Metop 10A Continuous-Rotation 1-Phase On-Off Switch. On-Off Switches are used for local selection in machines, panel doors, welding equipment and motor starting. Technical values: Current 10A, Phase Type 1-Phase. Stock code: MT037 - 10A.
| Current | 10 A |
|---|---|
| Number of Poles | 1P |
| Rated Insulation Voltage (Ui) | 660 V |
| Ambient Temperature | -25... +50 °C |
| Front Panel Protection Rating | IP55 |
| Standards | EN 60947-3, VDE0660, TS EN 60947-3 |
| Switch Positions | 0–1 |
| Housing Size | M1 |
| Length (L) | 33.9 mm |
| Front Plate Size (A x B) | 44.5 x 56.7 mm |
| Housing Diameter | Ø40 mm |
| Nominal Thermal Current (Ith) | 16 A |
| AC-3 / AC-23 Power (Single-Phase Motors) | 110 V~: 0.8 kW; 220 V~: 1.7 kW; 380 V~: 2.8 kW (30 on-off/h) |
| Terminal Bolt Size | M3 |
| Conductor Cross-Section | 1/1.5 mm² (AWG 18) |
| Nominal Breaking Capacity (10 Ie x 1.1 Ue) | 110 V~: 13000 VA; 220 V~: 15000 VA; 380 V~: 14000 VA; 660 V~: 17000 VA |
| Fuse Current | 32 A (Ieff 10 kA); 32 A (Ieff 40 kA) |
