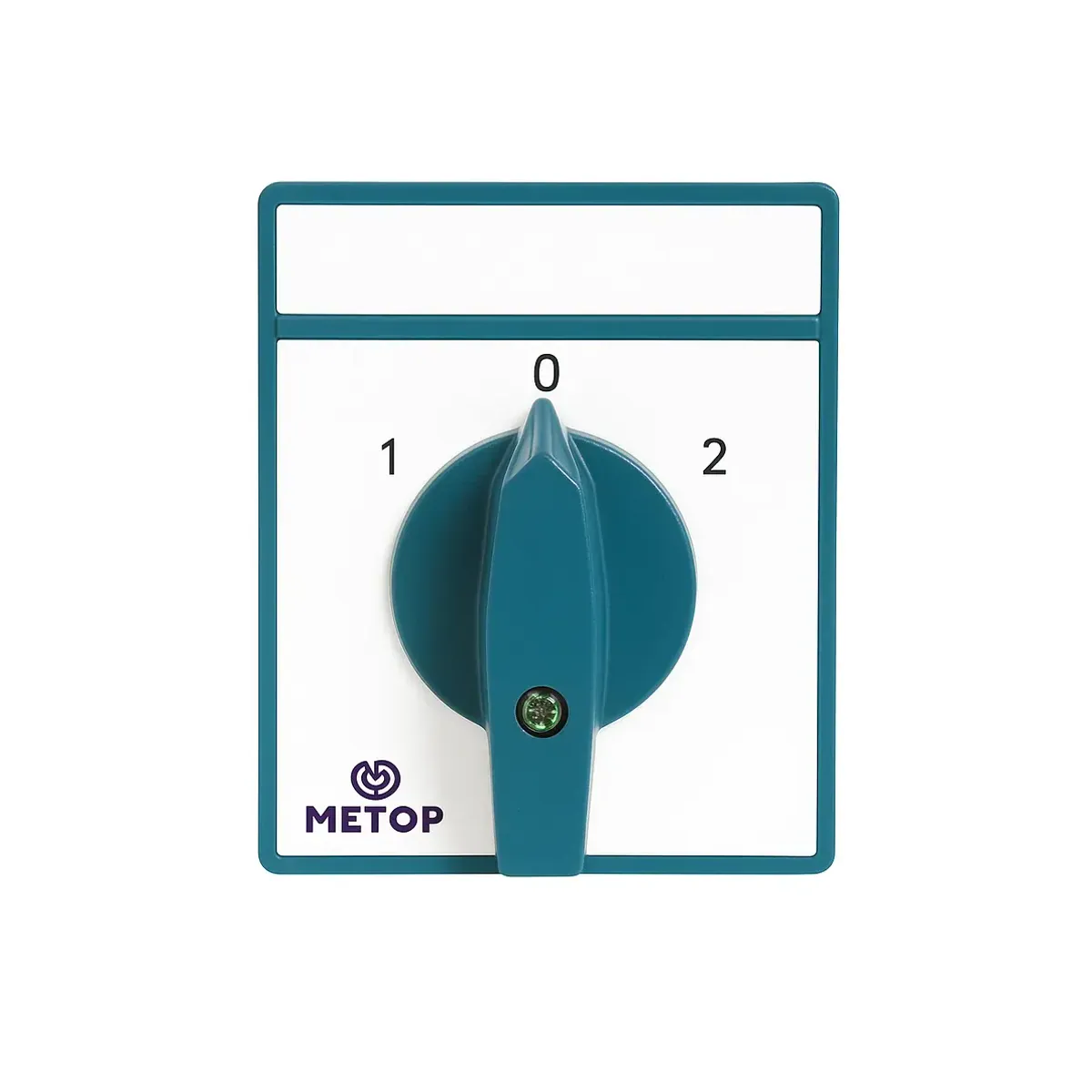

Metop 16A Single-Phase Reversing Right-Left Switch
- Brand: Metop
- SKU: MT080 - 16A
- Price: 403.20 TRY + VAT · incl. VAT 483.84 TRY
- Availability: In stock
- Pole-Changing Reversing Switches
- Metop Pole-Changing Reversing Switches
- Selection guide: Pole-Changing and Reversing Cam Switches Selection Guide
Metop 16A Single-Phase Reversing Right-Left Switch. Pole-Changing Reversing Switches are used for local selection in machines, panel doors, welding equipment and motor starting. Technical values: Current 16A, Phase Type 1-Phase. Stock code: MT080 - 16A.
| Current | 16 A |
|---|---|
| Number of Poles | 1P |
| Rated Insulation Voltage (Ui) | 660 V |
| Ambient Temperature | -25... +50 °C |
| Front Panel Protection Rating | IP55 |
| Standards | EN 60947-3, VDE0660, TS EN 60947-3 |
| Switch Positions | 1-0-2 |
| Housing Size | M2 |
| Front Plate Size (A x B) | 61.8 x 76.7 mm |
| Housing Diameter | Ø54.3 mm |
| Nominal Thermal Current (Ith) | 20 A |
| Terminal Bolt Size | M4 |
| Conductor Cross-Section | 1.5/2.5 mm² (AWG 18) |
| Length (L) | 53.6 mm |
| Fuse Current | 50 A (Ieff 10 kA); 50 A (Ieff 40 kA) |
