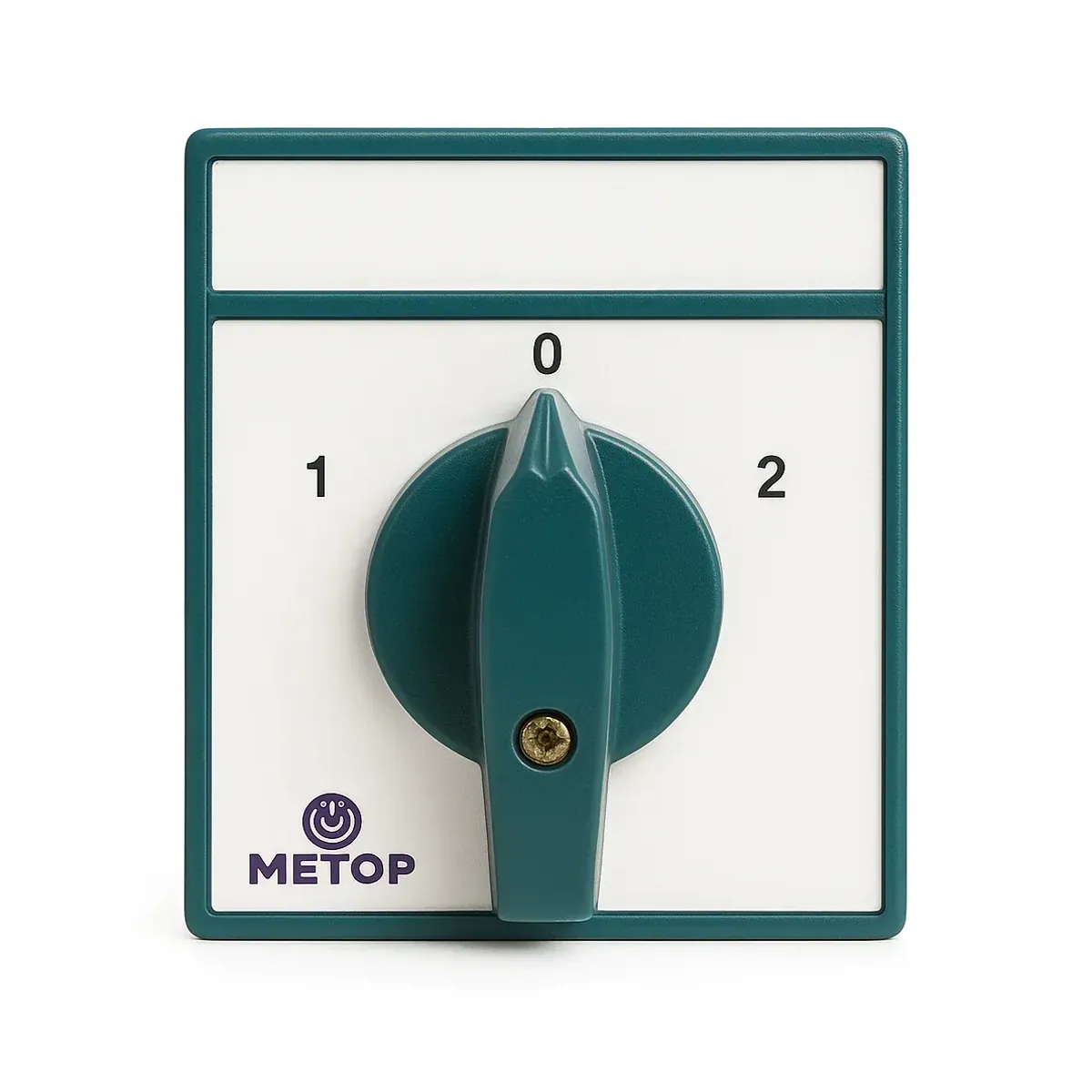

Metop 200A Three-Phase Pole-Changing Switch 1-0-2
- Brand: Metop
- SKU: MT029 - 200A
- Price: 11954.88 TRY + VAT · incl. VAT 14345.86 TRY
- Availability: In stock
- Pole-Changing Reversing Switches
- Metop Pole-Changing Reversing Switches
- Selection guide: Pole-Changing and Reversing Cam Switches Selection Guide
Metop 200A Three-Phase Pole-Changing Switch 1-0-2. Pole-Changing Reversing Switches are used for local selection in machines, panel doors, welding equipment and motor starting. Technical values: Current 200A, Phase Type 3-Phase. Stock code: MT029 - 200A.
| Current | 200 A |
|---|---|
| Number of Poles | 3P |
| Rated Insulation Voltage (Ui) | 660 V |
| Ambient Temperature | -25... +50 °C |
| Front Panel Protection Rating | IP55 |
| Standards | EN 60947-3, VDE0660, TS EN 60947-3 |
| Switch Positions | 1-0-2 |
| Housing Size | M4 |
| Length (L) | 230 mm |
| Front Plate Size (A x B) | 85 x 104 mm |
| Nominal Thermal Current (Ith) | 250 A |
| AC-1 / AC-21 Power (Resistive Circuits) | 3x220 V~: 50 kW; 3x380 V~: 80 kW; 3x500 V~: 120 kW; 3x660 V~: 185 kW (30 on-off/h) |
| AC-3 / AC-23 Power (Three-Phase Motors) | 3x220 V~: 28 kW; 3x380 V~: 47 kW; 3x500 V~: 65 kW; 3x660 V~: 80 kW (30 on-off/h) |
| Terminal Bolt Size | M10 |
| Conductor Cross-Section | 50/70 mm² |
| Fuse Current | 250 A (Ieff 10 kA); 200 A (Ieff 40 kA) |
