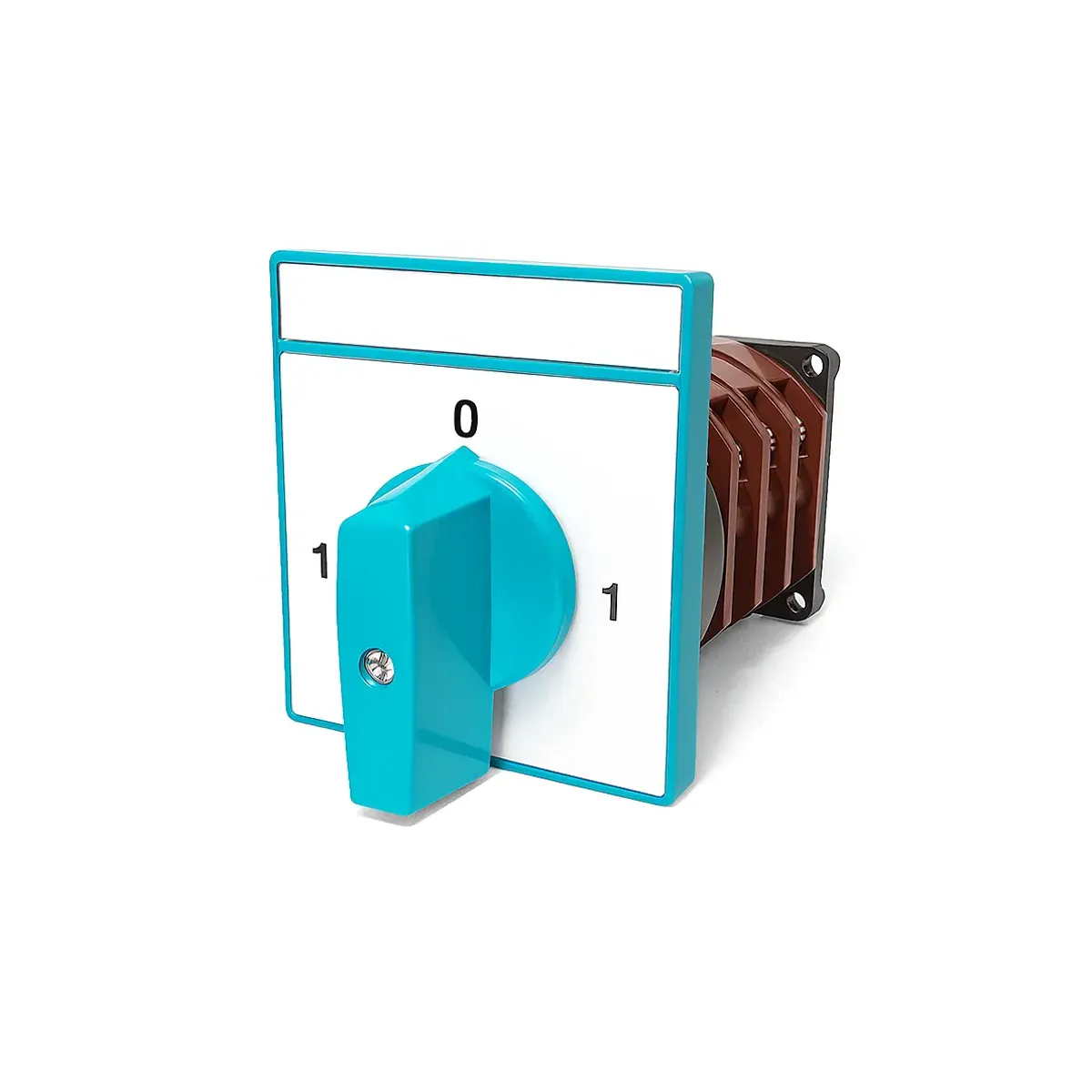

Metop 25A Continuous-Rotation 1-Phase On-Off Switch
- Brand: Metop
- SKU: MT037 - 25A
- Price: 273.28 TRY + VAT · incl. VAT 327.94 TRY
- Availability: In stock
- On-Off Switches
- Metop On-Off Switches
- Selection guide: On-Off Cam Switches (0-1) Selection Guide
Metop 25A Continuous-Rotation 1-Phase On-Off Switch. On-Off Switches are used for local selection in machines, panel doors, welding equipment and motor starting. Technical values: Current 25A, Phase Type 1-Phase. Stock code: MT037 - 25A.
| Current | 25 A |
|---|---|
| Number of Poles | 1P |
| Rated Insulation Voltage (Ui) | 660 V |
| Ambient Temperature | -25... +50 °C |
| Front Panel Protection Rating | IP55 |
| Standards | EN 60947-3, VDE0660, TS EN 60947-3 |
| Switch Positions | 0–1 |
| Housing Size | M2 |
| Length (L) | 39 mm |
| Front Plate Size (A x B) | 61.8 x 76.7 mm |
| Housing Diameter | Ø54.3 mm |
| Nominal Thermal Current (Ith) | 32 A |
| AC-3 / AC-23 Power (Single-Phase Motors) | 110 V~: 1.3 kW; 220 V~: 2.6 kW; 380 V~: 4.6 kW (30 on-off/h) |
| Terminal Bolt Size | M4 |
| Conductor Cross-Section | 1.5/2.5 mm² (AWG 18) |
| Nominal Breaking Capacity (10 Ie x 1.1 Ue) | 110 V~: 24000 VA; 220 V~: 48000 VA; 380 V~: 66000 VA; 660 V~: 58000 VA |
| Fuse Current | 63 A (Ieff 10 kA); 63 A (Ieff 40 kA) |
