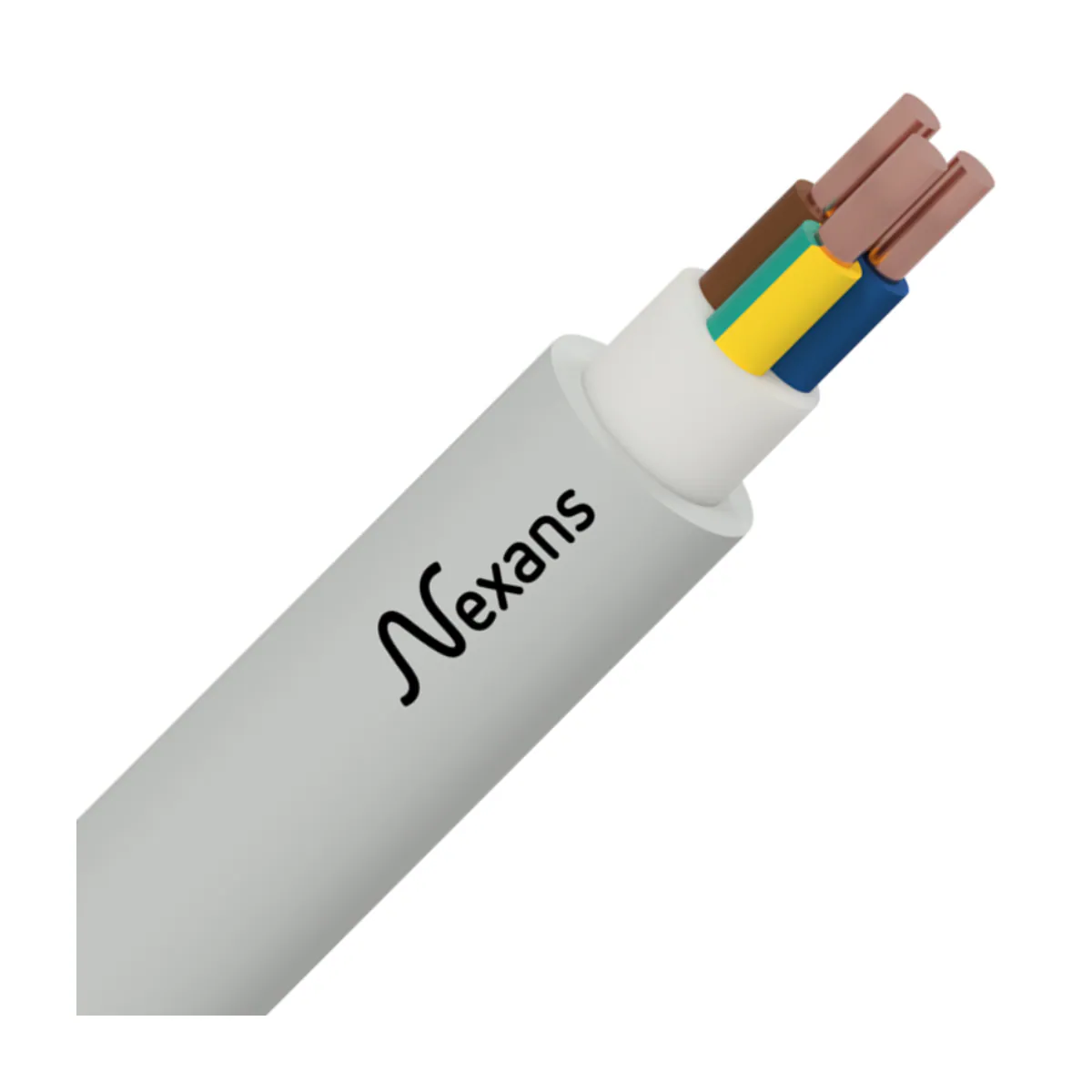

Nexans NHXMH 4x10 mm2 Halogen Free Cable
- Brand: Nexans Kablo
- SKU: NEXWB0626
- Price: 35768.90 TRY + VAT · incl. VAT 42922.68 TRY
- Availability: In stock
- NHXMH Cables
- Nexans Kablo NHXMH Cables
- Selection guide: NHXMH Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Nexans NHXMH 4x10 mm2 Halogen-Free Cable is a product in the NHXMH halogen-free installation cable product family of the Nexans Kablo brand. Key technical features: Low fire hazard product; Halogen-free and low-smoke construction; Nexans Türkiye NHXMH family; Core cross-section: 4x10 mm2.
| Core Cross-Section | 4x10 mm² |
|---|---|
| Conductor | Copper |
| Insulation Material | XLPE |
| Filler | LSZH |
| Outer Sheath Material | LSZH |
| Rated Voltage | 300/500 V |
| Operating Temperature | -20 °C … +90 °C |
| Short-Circuit Temperature | Max. 250 °C |
| Minimum Bending Radius | 4 x D (D ≤ 8 mm); 5 x D (D ≤ 12 mm); 6 x D (D > 12 mm) |
| Standards | TS EN IEC 60228; TSE K 328; TS 13936 |
| Flame Retardance / Fire Performance | Alev dayanımı: TS EN IEC 60332-3-24 (CAT C); Halojensiz: TS EN IEC 60754-1/2; Duman yoğunluğu: TS EN IEC 61034-1/2 |
