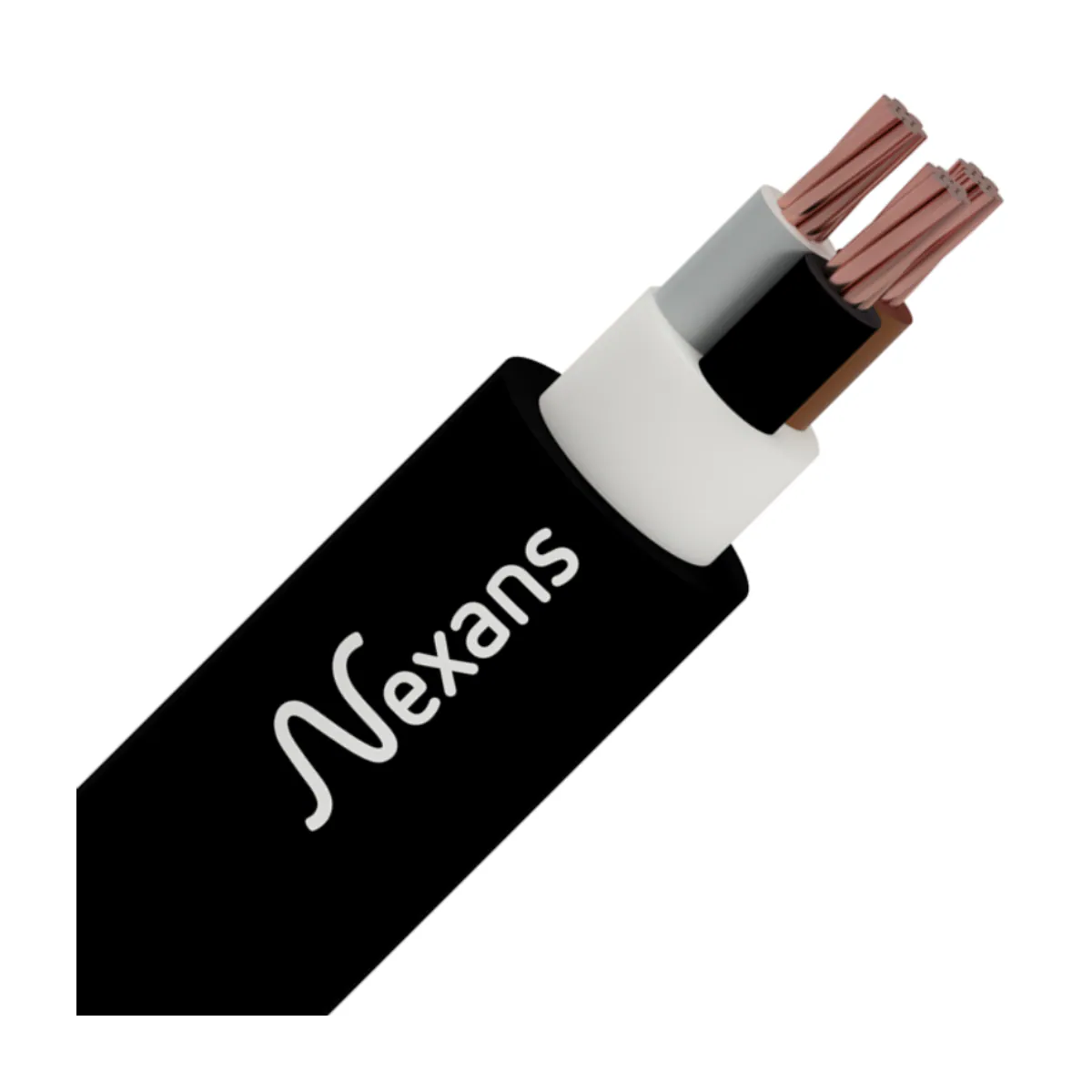

Nexans NYY 2x10 mm2 YVV Underground Power Cable
- Brand: Nexans Kablo
- SKU: NEXWB0438
- Price: 18752.40 TRY + VAT · incl. VAT 22502.88 TRY
- Availability: In stock
- NYY Cables
- Nexans Kablo NYY Cables
- Selection guide: NYY Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Nexans NYY 2x10 mm2 YVV Underground Power Cable is a product in the NYY underground power cable product family of the Nexans Kablo brand. Key technical features: Core cross-section: 2x10 mm2.
| Core Cross-Section | 2x10 mm² |
|---|---|
| Conductor | Bakır; tavlanmış örgülü yuvarlak bakır (Class 2) |
| Insulation Material | PVC |
| Filler | PVC |
| Outer Sheath Material | PVC |
| Rated Voltage | 0,6/1 kV |
| Operating Temperature | -20 °C … +70 °C |
| Short-Circuit Temperature | Max. 160 °C |
| Minimum Bending Radius | 8 x D |
| Standards | TS EN IEC 60228; TS EN IEC 60502-1 |
| Flame Retardance / Fire Performance | CPR sınıfı: Eca (TS EN 50575); Alev dayanımı: TS EN IEC 60332-1-2 |
| Outer Diameter | Yaklaşık 16,8 mm |
| Conductor Resistance (20 °C) | Max. 1,83 Ω/km (DC) |
| Current Carrying Capacity | Havada (30 °C, düz aralıklı, yatay): 70 A; Toprakta (20 °C, trefoil, toprak ısıl özdirenci 1 K.m/W, gömme derinliği 0,7 m): 96 A |
