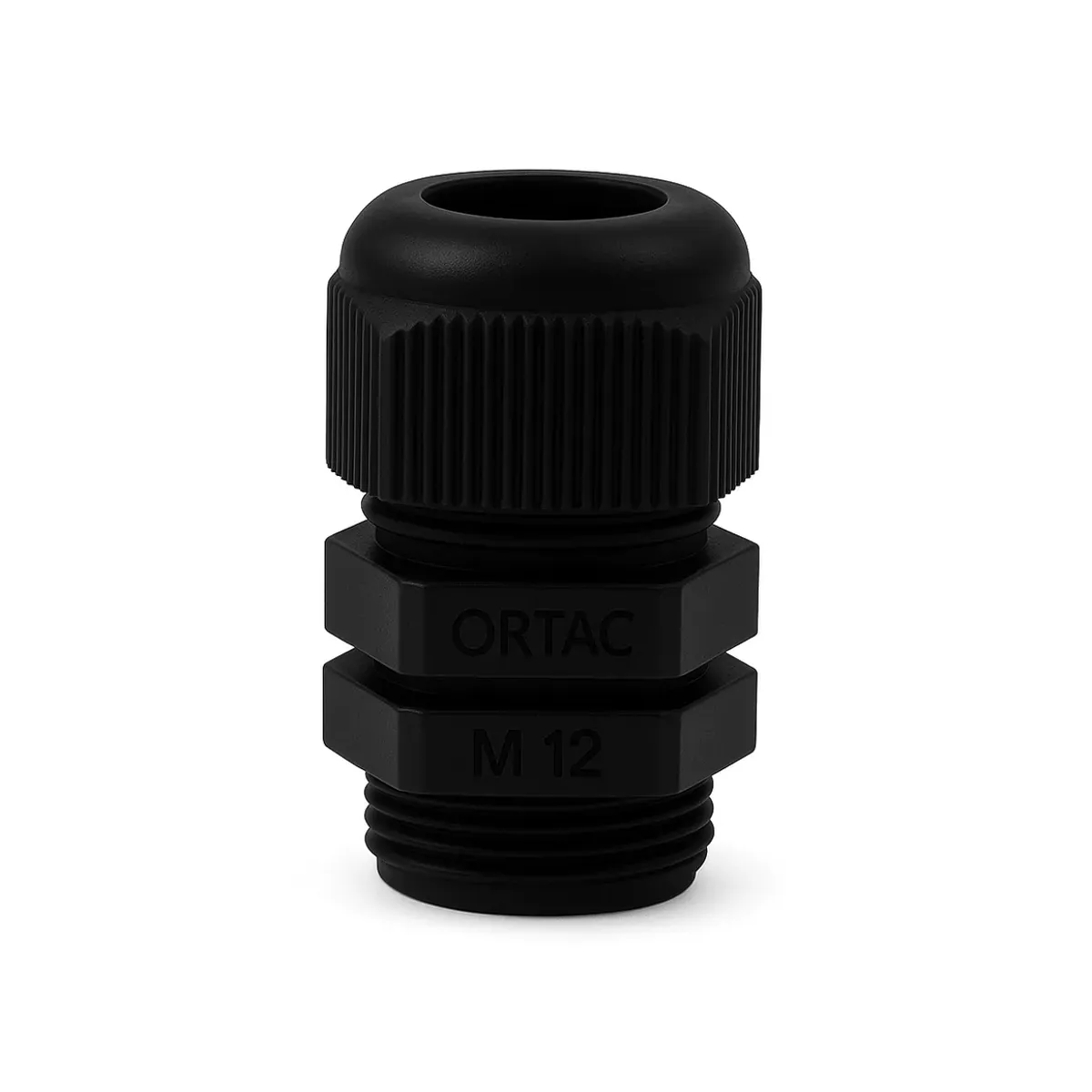

Ortaç M 12 Standard Watertight Type Cable Gland Black (400 pcs/box)
- Brand: Ortaç
- SKU: OMRB01
- MPN: OMRB01
- Model: Siyah
- Price: 2046.40 TRY + VAT · incl. VAT 2455.68 TRY
- Availability: In stock
- Euro-Metric Sealed Type Glands
- Ortaç Euro-Metric Sealed Type Glands
- Selection guide: Euro-Metric Sealed Type Glands Selection Guide: Technical Criteria and Engineering Practice
Ortaç M 12 Standard Watertight Type Cable Gland Black (400 pcs/box). Standard Sealed Type Glands are used for sealing and strain relief at panel walls, machine housings and installation routes. Technical values: Gland Size Type Metric 12, Color Black. The product is sold in packs of 400. Stock code: OMRB01.
| Cable Gland Thread Type | Metrik 12 |
|---|---|
| Color | Black |
| Mounting Diameter | 12.5 mm |
| Thread Length | 8 mm |
| Clamping Diameter | 3–6.5 mm |
| Thread Size | M 12 x 1,5 |
| Wrench Size | 15 mm |
| RAL Number | RAL 9005 |
| Cover Material | Polyamid PA6 V2 |
| Housing Material | Polyamid PA6 V2 |
| Seal Material | TPV |
| Connection Thread | Metrik (EN 60423) |
| IP Rating | IP68 5 bar (o-ring ile) |
| Temperature Range | -20 °C +100 °C / -30 °C +150 °C (kısa süreli ısıya direnci) |
| Halogen Free | Yes |
