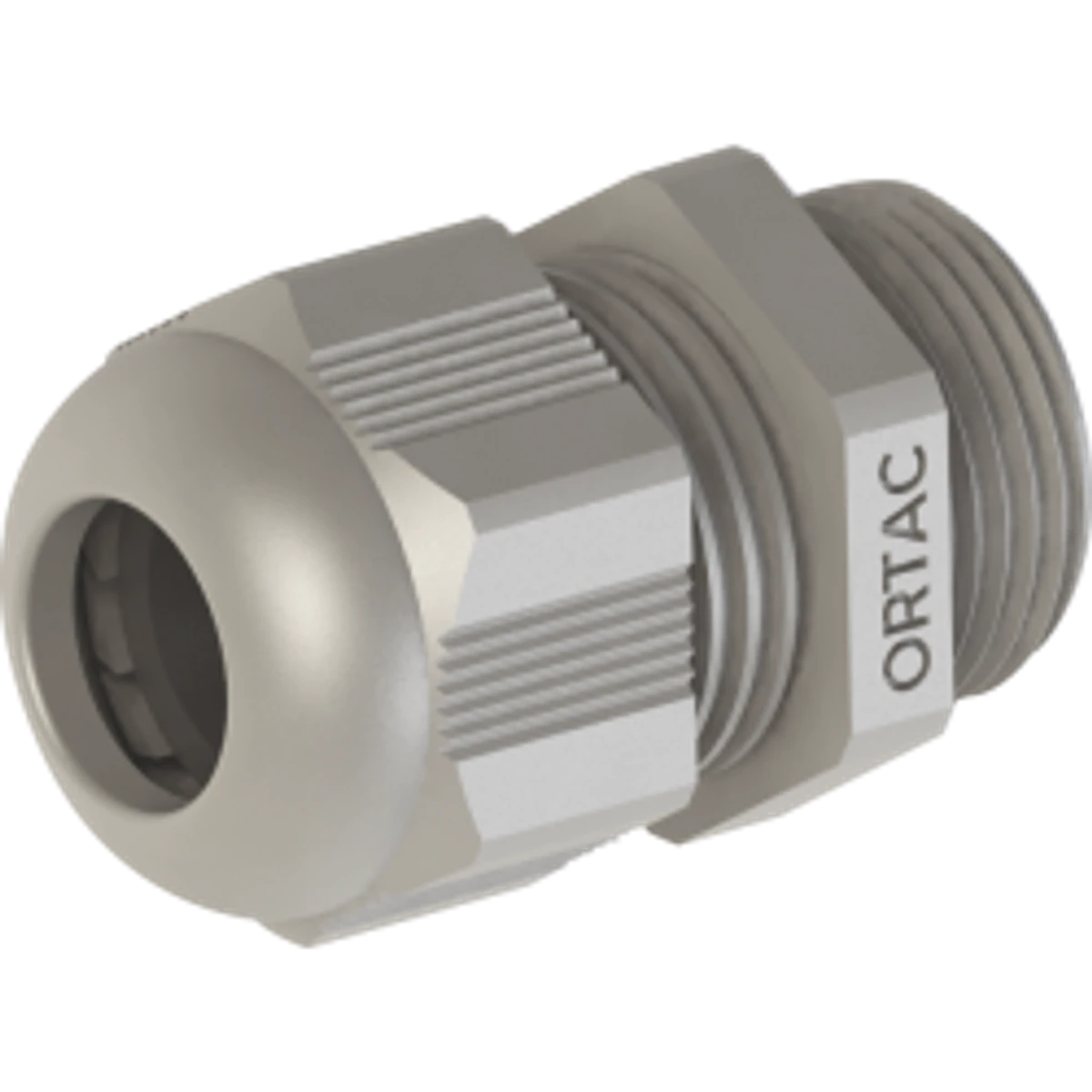

Ortaç M 20 Long Thread Watertight Type Cable Gland Gray (125 pcs/box)
- Brand: Ortaç
- SKU: OMRG13
- MPN: OMRG13
- Model: Gri
- Price: 1400.13 TRY + VAT · incl. VAT 1680.16 TRY
- Availability: In stock
- Long Thread Sealed Type Glands
- Selection guide: Long Thread Sealed Type Glands Selection Guide: Technical Criteria & Application Standards
Ortaç M 20 Long Thread Watertight Type Cable Gland Gray (125 pcs/box). Long Thread Sealed Type Glands are used for sealing and strain relief at panel walls, machine housings and installation routes. The product is sold in packs of 125. Stock code: OMRG13.
| Mounting Diameter | 20.5 mm |
|---|---|
| Thread Length | 15 mm |
| Clamping Diameter | 10–14 mm |
| Thread Size | M 20 x 1,5 |
| Wrench Size | 27 mm |
| RAL Number | RAL 7001 |
| Color | Grey |
| Cover Material | Polyamid PA6 V2 |
| Housing Material | Polyamid PA6 V2 |
| Seal Material | TPV |
| Connection Thread | Metrik (EN 60423) |
| IP Rating | IP68 5 bar (o-ring ile) |
| Temperature Range | -20 °C +100 °C / -30 °C +150 °C (kısa süreli ısıya direnci) |
| Halogen Free | Yes |
