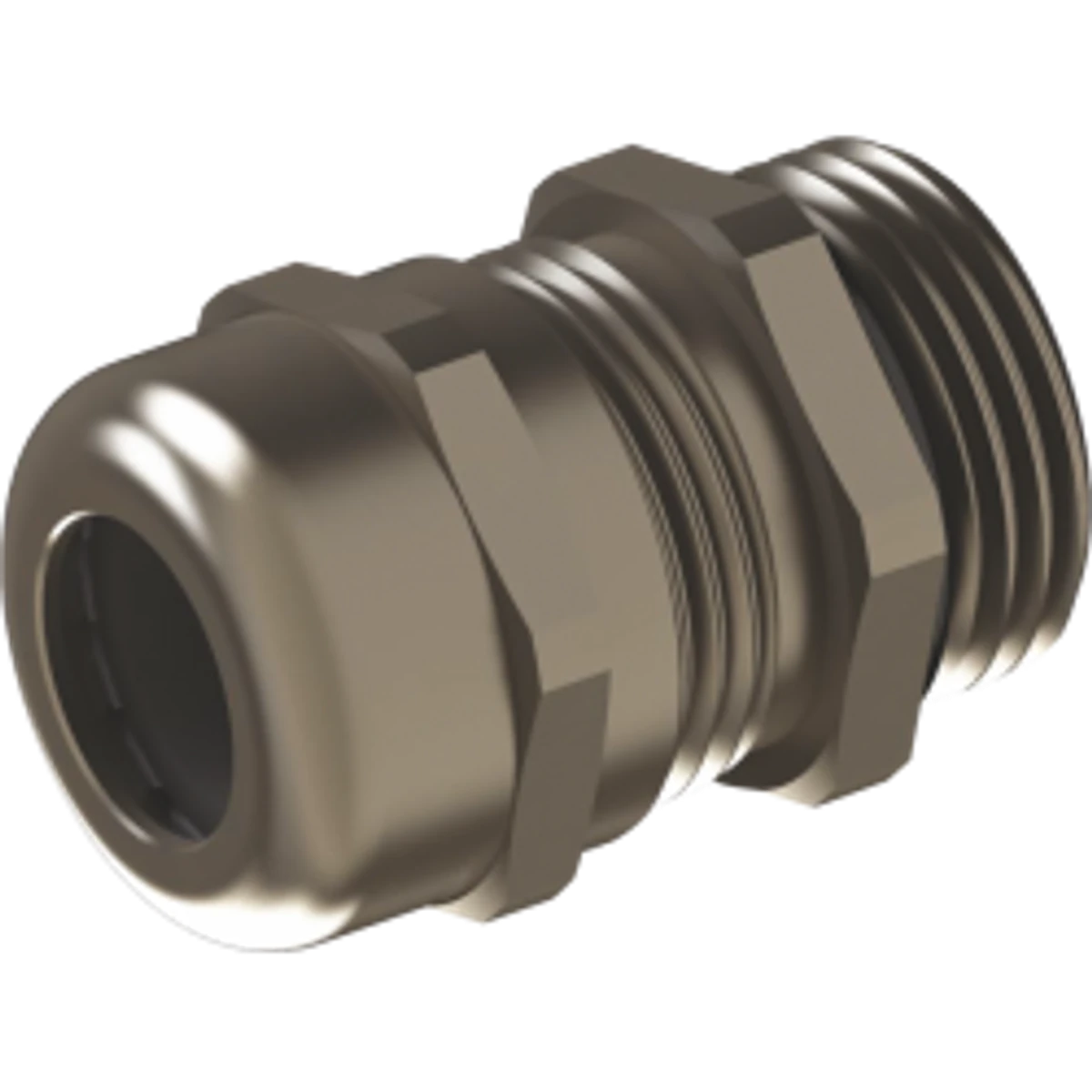

Ortaç M 25 Nickel-Plated Brass Cable Gland (25 pcs/box)
- Brand: Ortaç
- SKU: OMBG04/06
- MPN: OMBG04/06
- Price: 3457.48 TRY + VAT · incl. VAT 4148.98 TRY
- Availability: Made to order
- Nickel-Plated Brass Glands
- Ortaç Nickel-Plated Brass Glands
- Selection guide: Nickel-Plated Brass Glands Selection Guide: Technical Criteria and Engineering Practice
Ortaç M 25 Nickel-Plated Brass Cable Gland (25 pcs/box). Nickel-Plated Brass Glands are used for sealing and strain relief at panel walls, machine housings and installation routes. The product is sold in packs of 25. Stock code: OMBG04/06.
| Mounting Diameter | 25.5 mm |
|---|---|
| Thread Length | 8 mm |
| Clamping Diameter | 13–18 mm |
| Thread Size | M 25 x 1,5 |
| Cover Material | Nikel Kaplı Pirinç |
| Clamping Insert Material | Polyamide PA6 V2 |
| Seal Material | TPV |
| Housing Material | Nikel Kaplı Pirinç |
| O-ring Material | NBR |
| Connection Thread | Metrik (EN 60423) |
| IP Rating | IP68 - 5 bar |
| Temperature Range | -20 °C +100 °C / -40 °C +150 °C |
