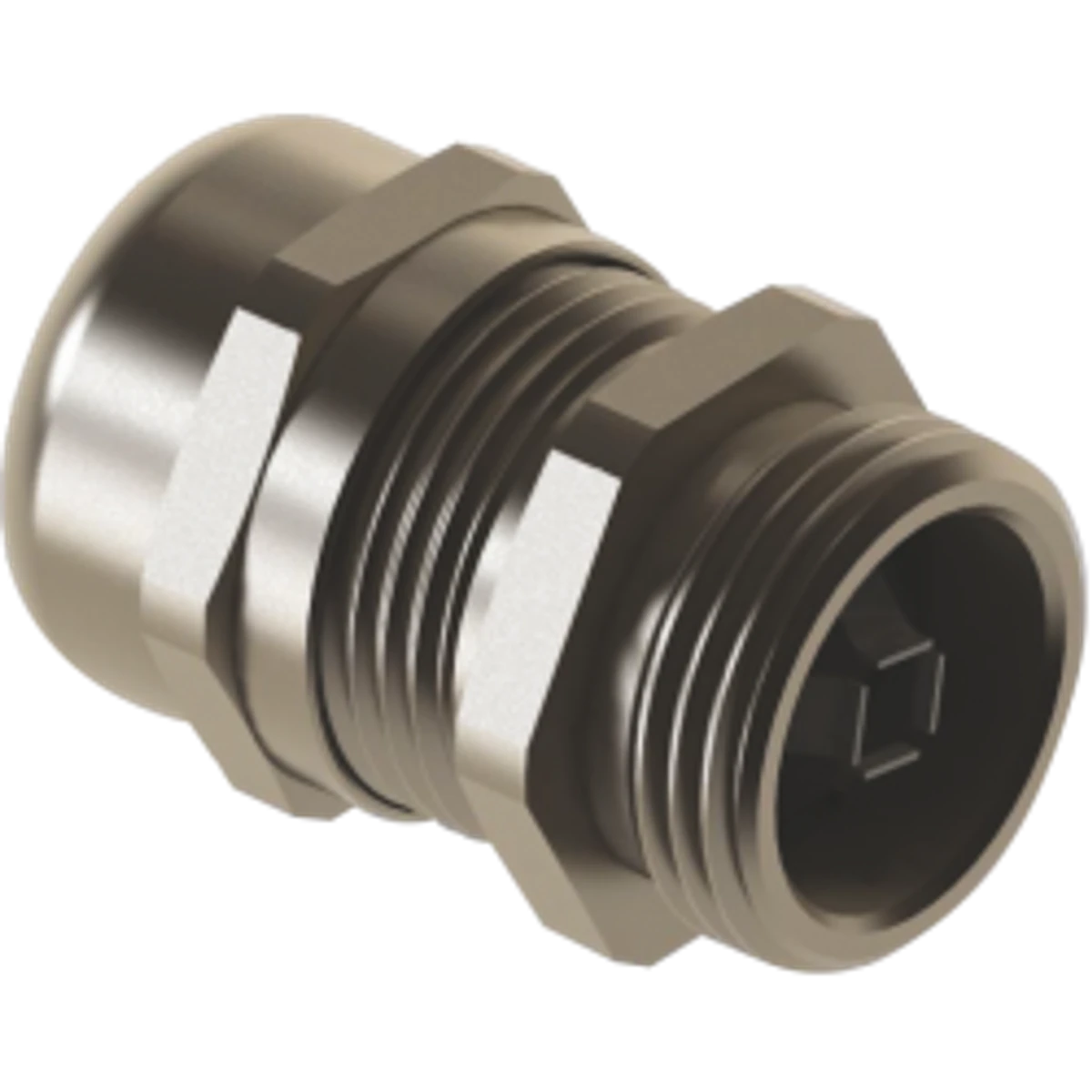

Ortaç M 50 EMC Type Grounded Nickel-Plated Brass Cable Gland (5 pcs/box)
- Brand: Ortaç
- SKU: OMBT07
- MPN: OMBT07
- Price: 72.89 TRY + VAT · incl. VAT 87.47 TRY
- Availability: Made to order
- EMC Type Grounded Nickel-Plated Brass Glands
- Selection guide: EMC Type Grounded Nickel-Plated Brass Glands Selection Guide: Technical Criteria & Application Standards
Ortaç M 50 EMC Type Grounded Nickel-Plated Brass Cable Gland (5 pcs/box). EMC Type Grounded Nickel-Plated Brass Glands are used for sealing and strain relief on panel walls, machine housings and installation routes. The product is sold in packs of 5. Stock code: OMBT07.
| Mounting Diameter | 50.5 mm |
|---|---|
| Thread Length | 9 mm |
| Clamping Diameter | 22–32 mm |
| Thread Size | M 50 x 1,5 |
| Cover Material | Nikel Kaplı Pirinç |
| Clamping Insert Material | Polyamid PA6 V2 |
| Seal Material | TPV |
| EMC Spring Material | AISI301 |
| Housing Material | Nikel Kaplı Pirinç |
| O-ring Material | NBR |
| Connection Thread | Metrik (EN 60423) |
| IP Rating | IP68 - 5 bar |
| Temperature Range | -20 °C +100 °C / -40 °C +150 °C |
