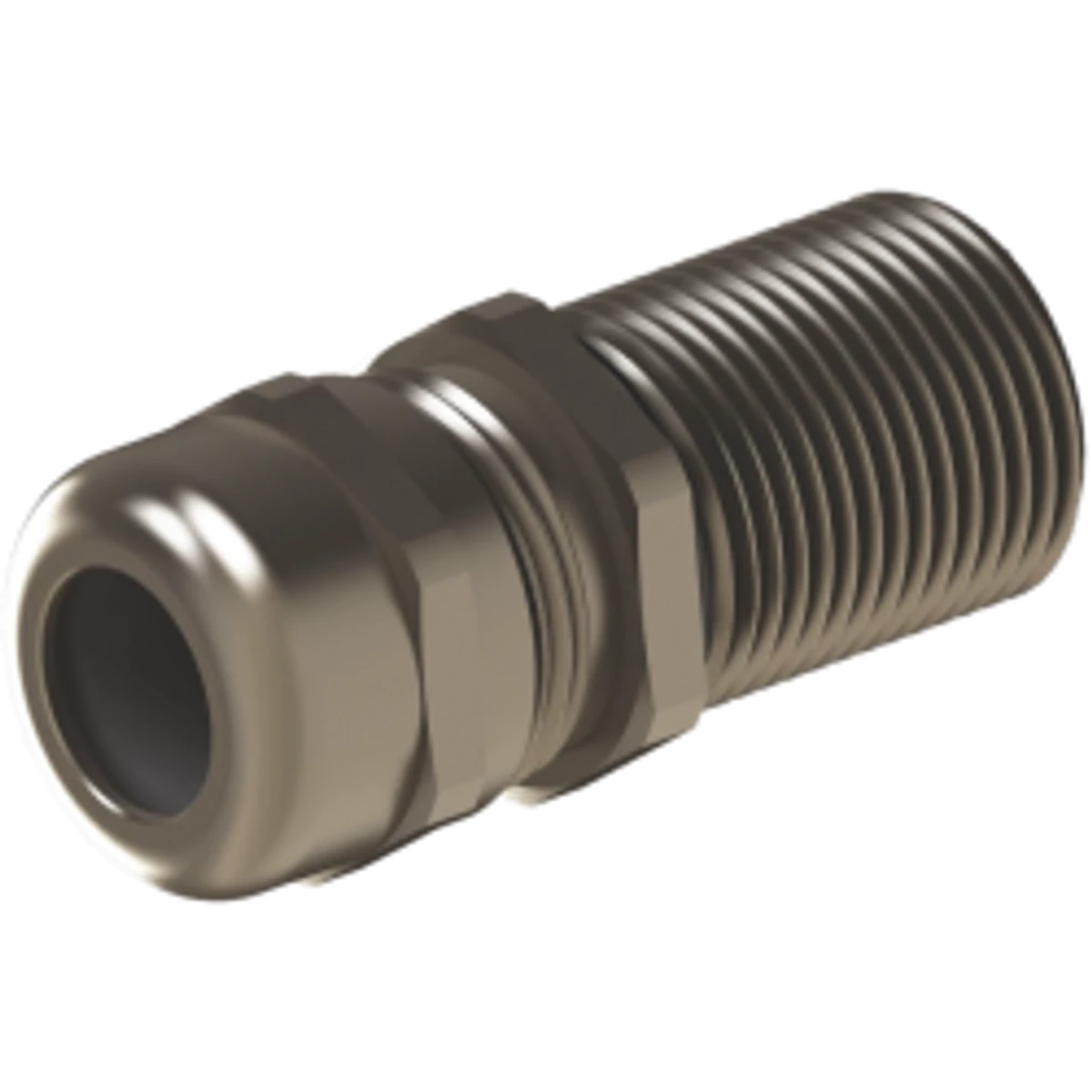

Ortaç PG 13.5 Nickel-Plated Brass Long Thread Cable Gland (50 pcs/box)
- Brand: Ortaç
- SKU: OPBG14
- MPN: OPBG14
- Price: 4036.25 TRY + VAT · incl. VAT 4843.50 TRY
- Availability: Made to order
- Nickel-Plated Brass Glands
- Ortaç Nickel-Plated Brass Glands
- Selection guide: Nickel-Plated Brass Glands Selection Guide: Technical Criteria and Engineering Practice
Ortaç PG 13.5 Nickel-Plated Brass Long Thread Cable Gland (50 pcs/box). Nickel-Plated Brass Glands are used for sealing and strain relief at panel walls, machine housings and installation routes. The product is sold in packs of 50. Stock code: OPBG14.
| Mounting Diameter | 21 mm |
|---|---|
| Thread Length | 10 mm |
| Clamping Diameter | 6–12 mm |
| Thread Size | PG 13,5 |
| Wrench Size | 22 mm |
| Cover Material | Nikel Kaplı Pirinç |
| Clamping Insert Material | Polyamide PA6 V2 |
| Seal Material | TPV |
| Housing Material | Nikel Kaplı Pirinç |
| O-ring Material | NBR |
| Connection Thread | PG (DIN 40430) |
| IP Rating | IP68 - 5 bar |
| Temperature Range | -20 °C +100 °C / -40 °C +150 °C (kısa süreler için) |
