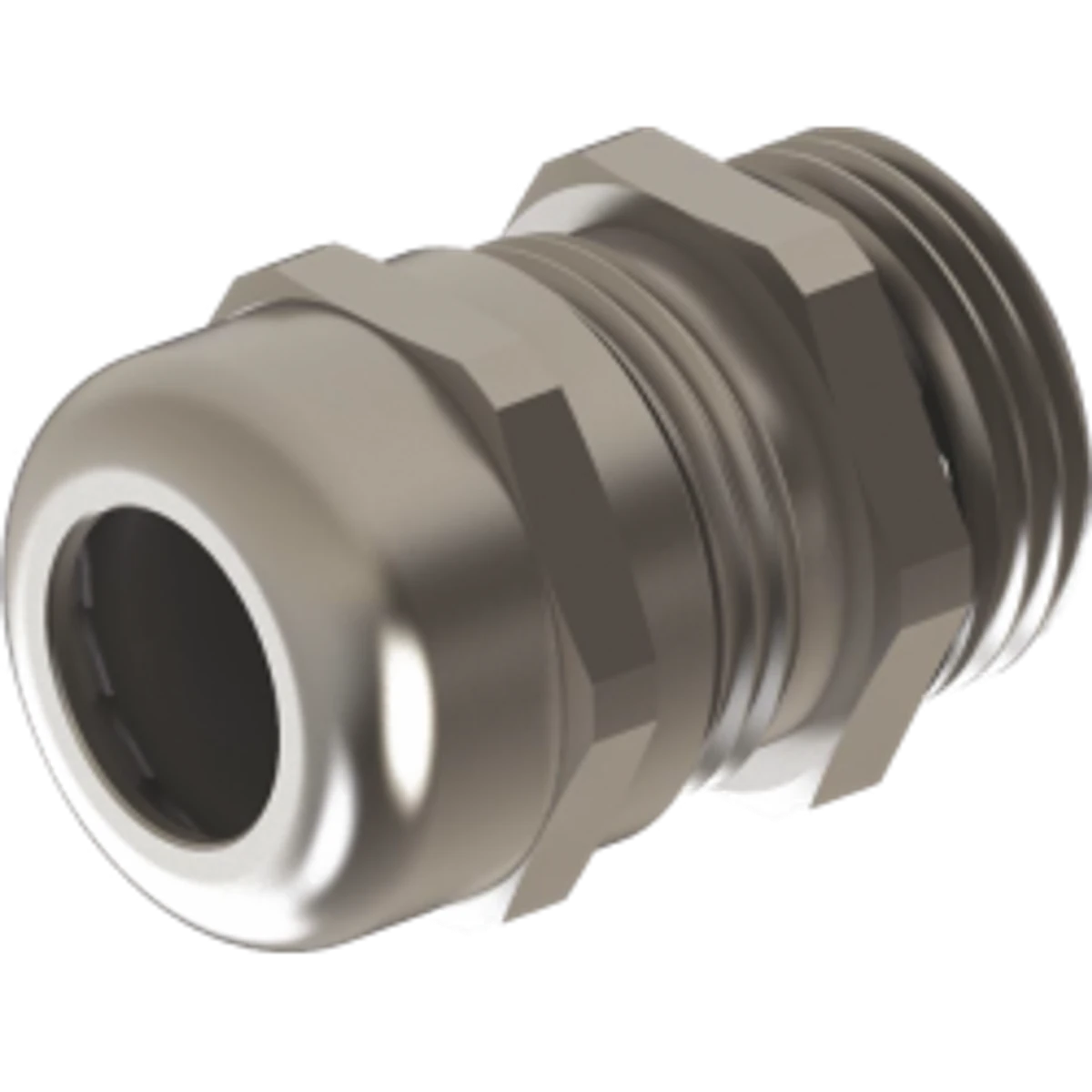

Ortaç PG 7 Nickel-Plated Brass Cable Gland (50 pcs/box)
- Brand: Ortaç
- SKU: OPBG01
- MPN: OPBG01
- Price: 1643.35 TRY + VAT · incl. VAT 1972.02 TRY
- Availability: Made to order
- Nickel-Plated Brass Glands
- Ortaç Nickel-Plated Brass Glands
- Selection guide: Nickel-Plated Brass Glands Selection Guide: Technical Criteria and Engineering Practice
Ortaç PG 7 Nickel-Plated Brass Cable Gland (50 pcs/box). Nickel-Plated Brass Glands are used for sealing and strain relief at panel walls, machine housings and installation routes. The product is sold in packs of 50. Stock code: OPBG01.
| Mounting Diameter | 13 mm |
|---|---|
| Thread Length | 6 mm |
| Clamping Diameter | 3–6.5 mm |
| Thread Size | PG 7 |
| Wrench Size | 14 mm |
| Cover Material | Nikel Kaplı Pirinç |
| Clamping Insert Material | Polyamide PA6 V2 |
| Seal Material | TPV |
| Housing Material | Nikel Kaplı Pirinç |
| O-ring Material | NBR |
| Connection Thread | PG (DIN 40430) |
| IP Rating | IP68 - 5 bar |
| Temperature Range | -20 °C +100 °C / -40 °C +150 °C (kısa süreler için) |
