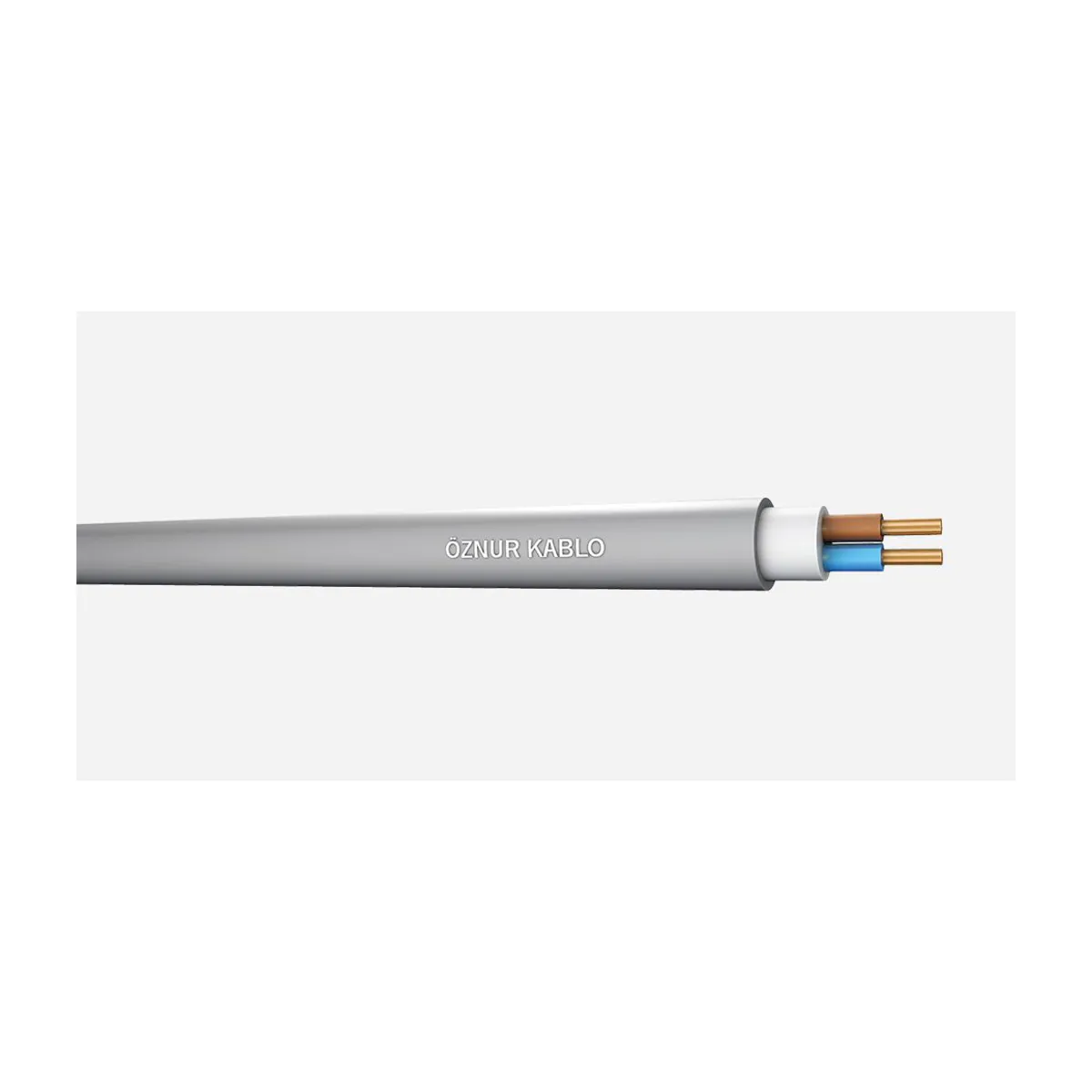

Öznur NHXMH 3x1.5 mm2 Halogen Free Cable
- Brand: Öznur Kablo
- SKU: NP-1443
- Price: 4699.60 TRY + VAT · incl. VAT 5639.52 TRY
- Availability: In stock
- NHXMH Cables
- Öznur Kablo NHXMH Cables
- Selection guide: NHXMH Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Öznur NHXMH 3x1.5 mm2 Halogen Free Cable. Cable with 300/500 V rated voltage, XLPE insulation and HFFR sheath. Conductor: Solid copper conductor (re). Halogen-free, flame-retardant. Technical data: Outer diameter approx. 9.0 mm, Current carrying capacity in air: 22 A, Conductor resistance (20 °C) Max. 12.1 Ω/km (DC), Minimum bending radius 12 x D, Operating temperature Max. 90 °C, Short-circuit temperature Max. 250 °C, Core color code Blue-Brown-Yellow/Green, Filler HFFR, Standards DIN VDE 0250-214, TSE K 328. The product is sold per meter; the minimum order is 100 meters. Stock code: NP-1443.
| Conductor | Tek telli bakır iletken (re) |
|---|---|
| Insulation Material | XLPE |
| Filler | HFFR |
| Outer Sheath Material | HFFR |
| Rated Voltage | 300/500 V |
| Operating Temperature | Max. 90 °C |
| Short-Circuit Temperature | Max. 250 °C |
| Minimum Bending Radius | 12 x D |
| Standards | DIN VDE 0250-214, TSE K 328 |
| Flame Retardance / Fire Performance | Halojensiz, alev iletmeyen |
| Core Colour Code | Mavi-Kahverengi-Sarı/Yeşil |
| Outer Diameter | Yaklaşık 9,0 mm |
| Conductor Resistance (20 °C) | Max. 12,1 Ω/km (DC) |
| Current Carrying Capacity | Havada: 22 A |
