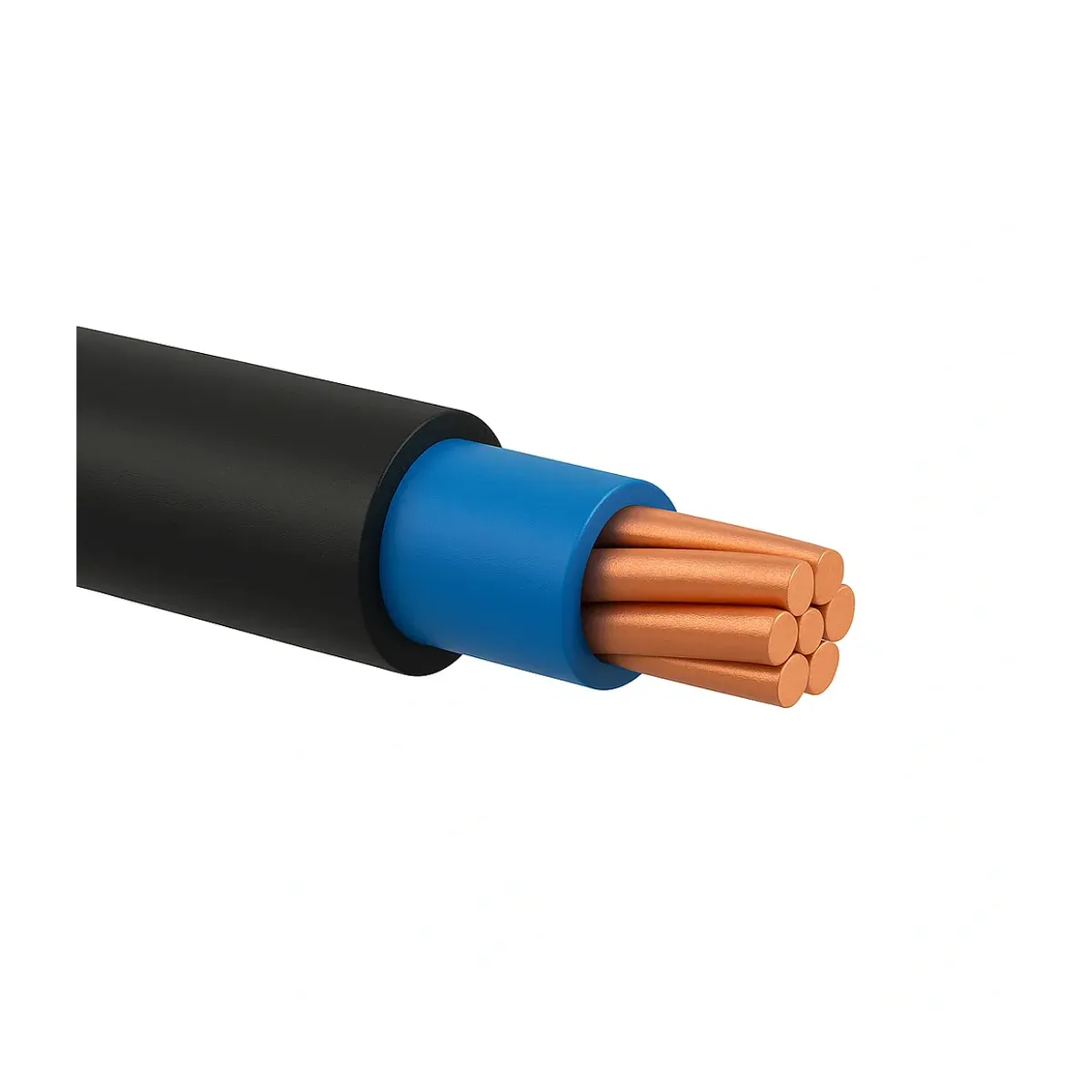

Öznur NYY 1x4 mm2 YVV Underground Power Cable
- Brand: Öznur Kablo
- SKU: NP-1218
- Price: 4144.60 TRY + VAT · incl. VAT 4973.52 TRY
- Availability: Made to order
- NYY Cables
- Öznur Kablo NYY Cables
- Selection guide: NYY Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Öznur NYY 1x4 mm2 YVV Underground Power Cable. NYY cables are underground power cables with copper conductors, PVC insulation and a PVC sheath; in Turkey they are also known as YVV. Technical data: Core Cross-Section 1x4mm2. The product is sold per meter; the minimum order is 100 meters. Stock code: NP-1218.
| Core Cross-Section | 1x4 mm² |
|---|---|
| Conductor | Tek telli bakır iletken (re) |
| Insulation Material | PVC |
| Outer Sheath Material | PVC |
| Rated Voltage | 0,6/1 kV |
| Operating Temperature | Max. 70 °C |
| Short-Circuit Temperature | Max. 160 °C |
| Minimum Bending Radius | 15 x D |
| Standards | TS IEC 60502-1, VDE 0276 |
| Outer Diameter | Yaklaşık 7,5 mm |
| Conductor Resistance (20 °C) | Max. 4,61 Ω/km (DC) |
| Current Carrying Capacity | Toprakta (yan yana): 56 A; Toprakta (üçgen demet): 48 A; Havada (yan yana): 45 A; Havada (üçgen demet): 32 A |
