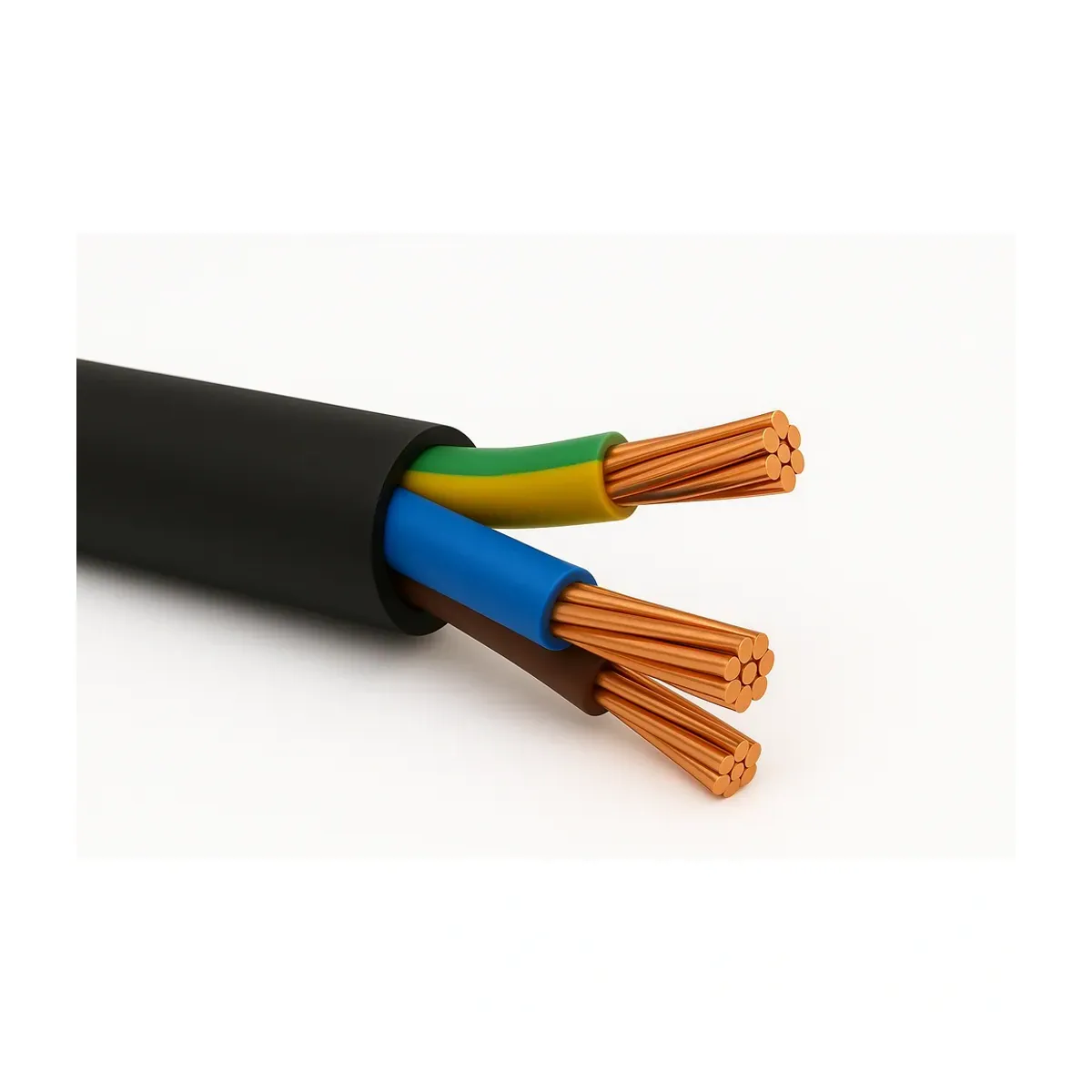

Öznur NYY 3x1.5 mm2 YVV Underground Power Cable
- Brand: Öznur Kablo
- SKU: NP-1237
- Price: 2697.90 TRY + VAT · incl. VAT 3237.48 TRY
- Availability: In stock
- NYY Cables
- Öznur Kablo NYY Cables
- Selection guide: NYY Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Öznur NYY 3x1.5 mm2 YVV Underground Power Cable. NYY cables are underground power cables with copper conductors, PVC insulation and a PVC sheath; in Turkey they are also known as YVV. Technical data: Core Cross-Section 3x1.5mm2. The product is sold per meter; the minimum order is 50 meters. Stock code: NP-1237.
| Core Cross-Section | 3x1,5 mm² |
|---|---|
| Conductor | Tek telli bakır iletken (re) |
| Insulation Material | PVC |
| Filler | PVC |
| Outer Sheath Material | PVC |
| Rated Voltage | 0,6/1 kV |
| Operating Temperature | Max. 70 °C |
| Short-Circuit Temperature | Max. 160 °C |
| Minimum Bending Radius | 12 x D |
| Standards | TS IEC 60502-1, VDE 0276 |
| Core Colour Code | Kahverengi-Black-Grey |
| Outer Diameter | Yaklaşık 11,0 mm |
| Conductor Resistance (20 °C) | Max. 12,1 Ω/km (DC) |
| Current Carrying Capacity | Toprakta: 27 A; Havada: 19 A |
