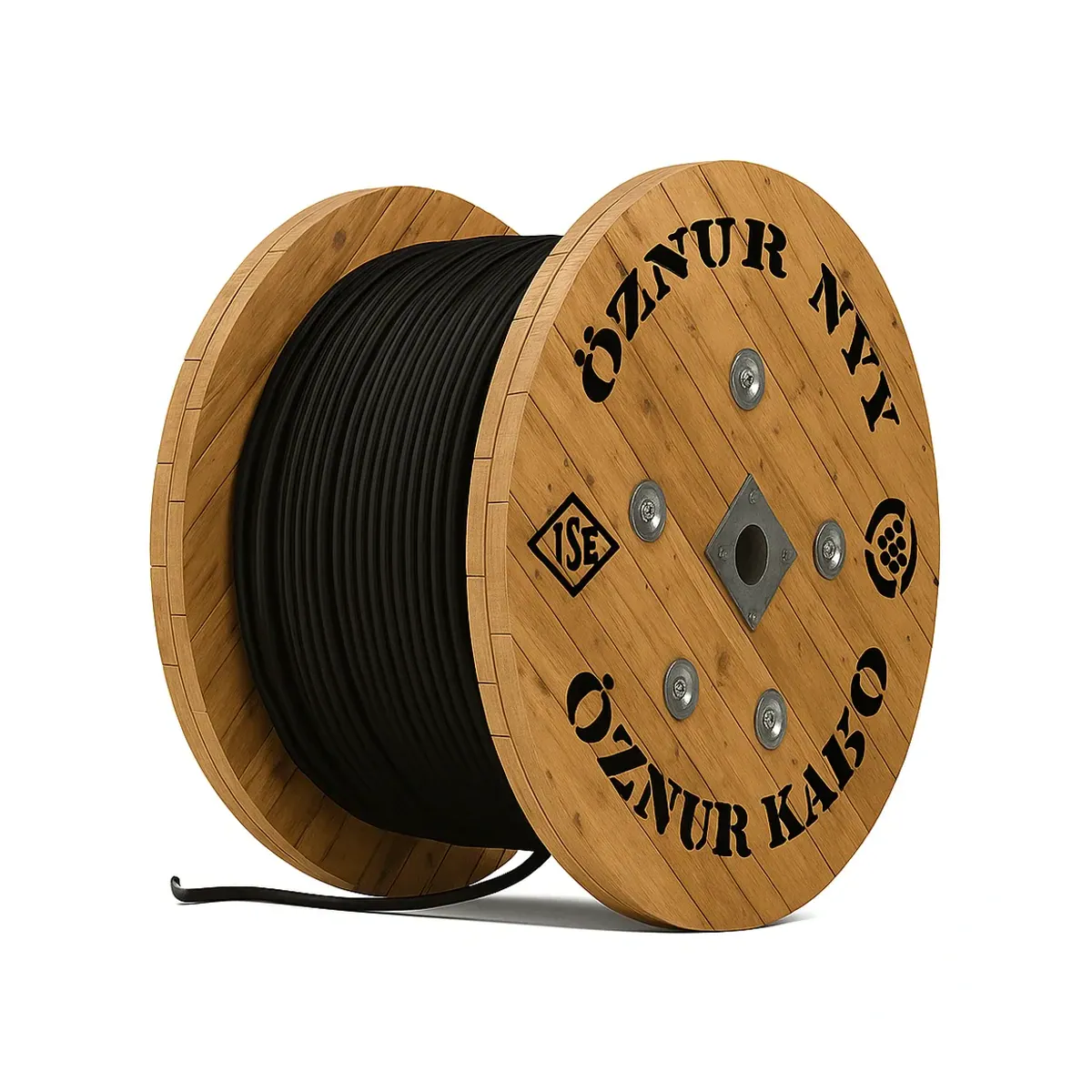

Öznur NYY 4x150 mm2 YVV Underground Power Cable
- Brand: Öznur Kablo
- SKU: NP-1265
- Price: 248952.00 TRY + VAT · incl. VAT 298742.40 TRY
- Availability: Made to order
- NYY Cables
- Öznur Kablo NYY Cables
- Selection guide: NYY Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Öznur NYY 4x150 mm2 YVV Underground Power Cable. NYY cables are underground power cables with copper conductors, PVC insulation and a PVC sheath; in Turkey they are also known as YVV. Technical data: Core Cross-Section 4x150mm2. The product is sold per meter; the minimum order is 50 meters. Stock code: NP-1265.
| Core Cross-Section | 4x150 mm² |
|---|---|
| Conductor | Bükülü bakır iletken (rm) |
| Insulation Material | PVC |
| Filler | PVC |
| Outer Sheath Material | PVC |
| Rated Voltage | 0,6/1 kV |
| Operating Temperature | Max. 70 °C |
| Short-Circuit Temperature | Max. 160 °C |
| Minimum Bending Radius | 12 x D |
| Standards | TS IEC 60502-1, VDE 0276 |
| Core Colour Code | Mavi-Kahverengi-Black-Grey |
| Outer Diameter | Yaklaşık 51,0 mm |
| Conductor Resistance (20 °C) | Max. 0,124 Ω/km (DC) |
| Current Carrying Capacity | Toprakta: 359 A; Havada: 320 A |
