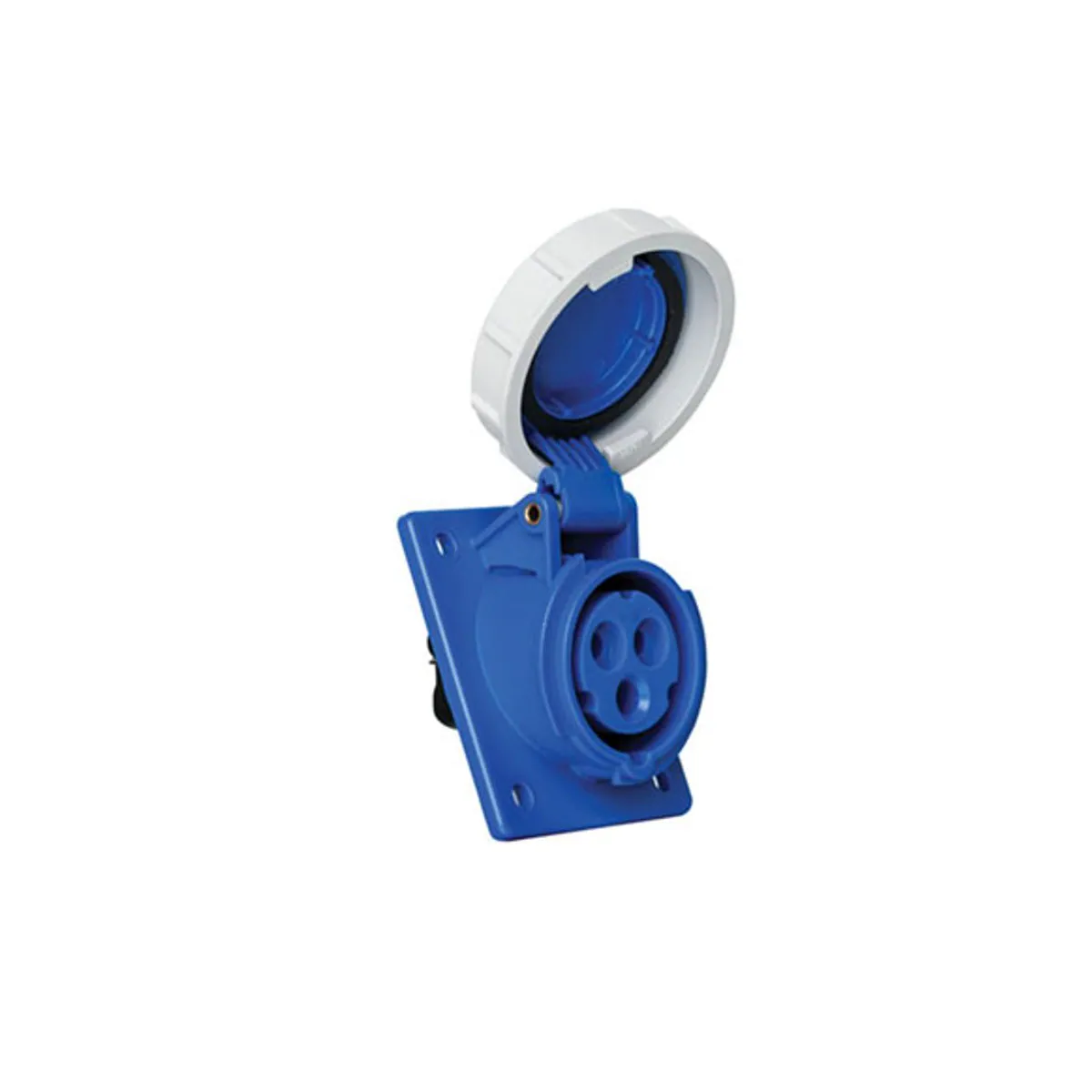

PCE 406503V 3x16A Machine Socket Angled IP67 Screw Type
- Brand: PCE
- SKU: 406503V
- MPN: 406503V
- Price: 652.50 TRY + VAT · incl. VAT 783.00 TRY
- Availability: In stock
- CEE Angled Panel Sockets
- PCE CEE Angled Panel Sockets
- Selection guide: CEE Angled Panel Sockets Selection Guide: Technical Criteria and Engineering Practice
PCE 406503V 3x16A Industrial Socket Angled IP67 Screw-Type; features 16 A rated current, 2P+PE contact arrangement, 220-240 V rated voltage, 6 h clock position, IP67 degree of protection and screw connection.
| Degree of Protection | IP67 |
|---|---|
| Rated Current | 16 A |
| Connection Type | Screw |
| Clock Position | 6h |
| Number of Poles | 3P |
| Product Type | Eğik Makine Prizi |
| Rated Voltage | 220–240 V |
| Contact Configuration | 2P+PE |
| Horizontal Flange Size | 70 mm |
| Vertical Flange Size | 85 mm |
| Operating Frequency | 50–60 Hz |
| Manufacturer Voltage Range | 200–250 V |
