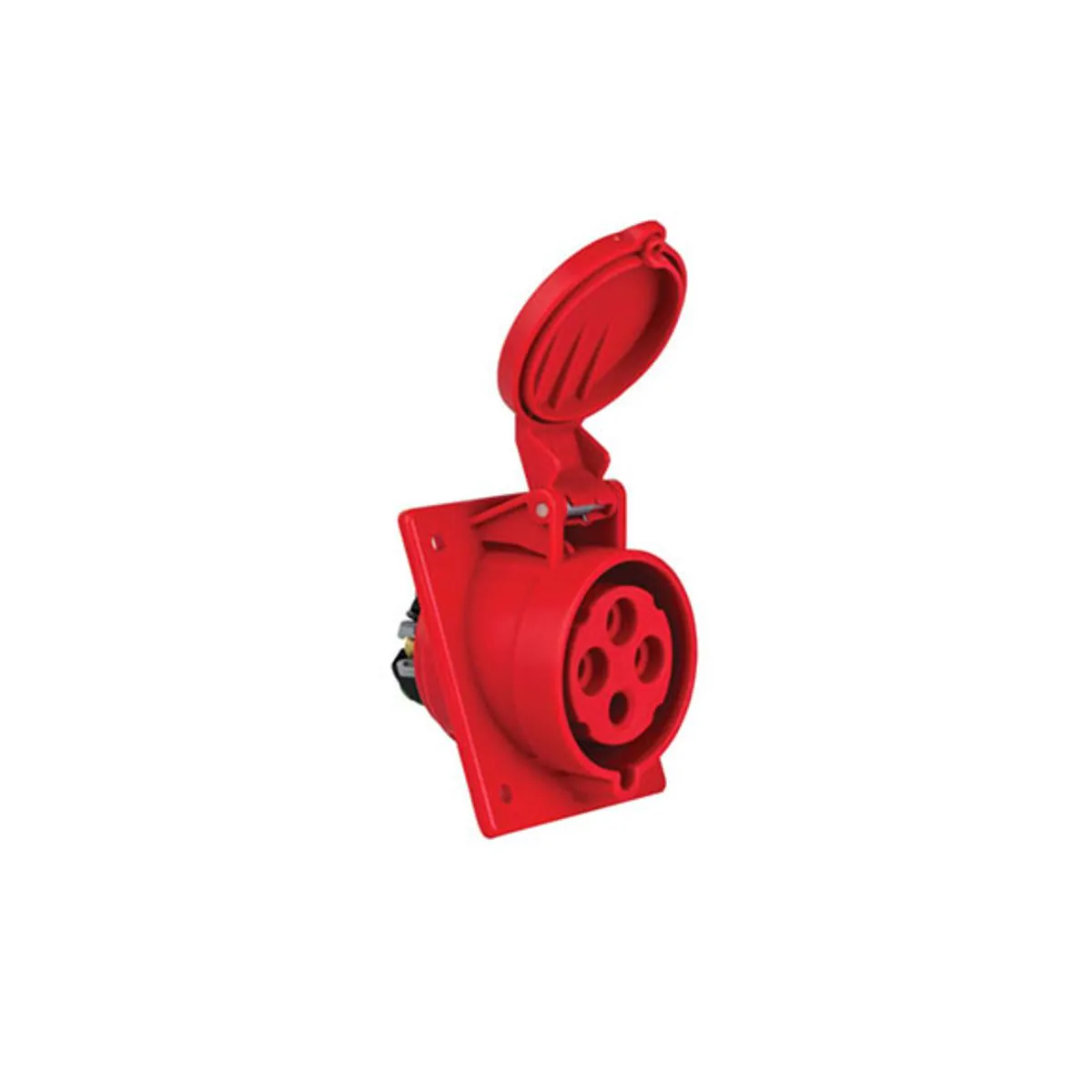

PCE 406517 4x32A Machine Socket IP44 Angled
- Brand: PCE
- SKU: 406517
- MPN: 406517
- Price: 790.10 TRY + VAT · incl. VAT 948.12 TRY
- Availability: In stock
- CEE Angled Panel Sockets
- PCE CEE Angled Panel Sockets
- Selection guide: CEE Angled Panel Sockets Selection Guide: Technical Criteria and Engineering Practice
PCE 406517 4x32A Machine Socket IP44 Angled; features 32 A rated current, 3P+PE contact arrangement, 380-415V rated voltage, 6 h clock position, IP44 degree of protection and quick connection.
| Degree of Protection | IP44 |
|---|---|
| Rated Current | 32 A |
| Connection Type | Hızlı |
| Clock Position | 6h |
| Number of Poles | 4P |
| Product Type | Eğik Makine Prizi |
| Rated Voltage | 380–415 V |
| Contact Configuration | 3P+PE |
| Horizontal Flange Size | 80 mm |
| Vertical Flange Size | 97 mm |
| Operating Frequency | 50–60 Hz |
