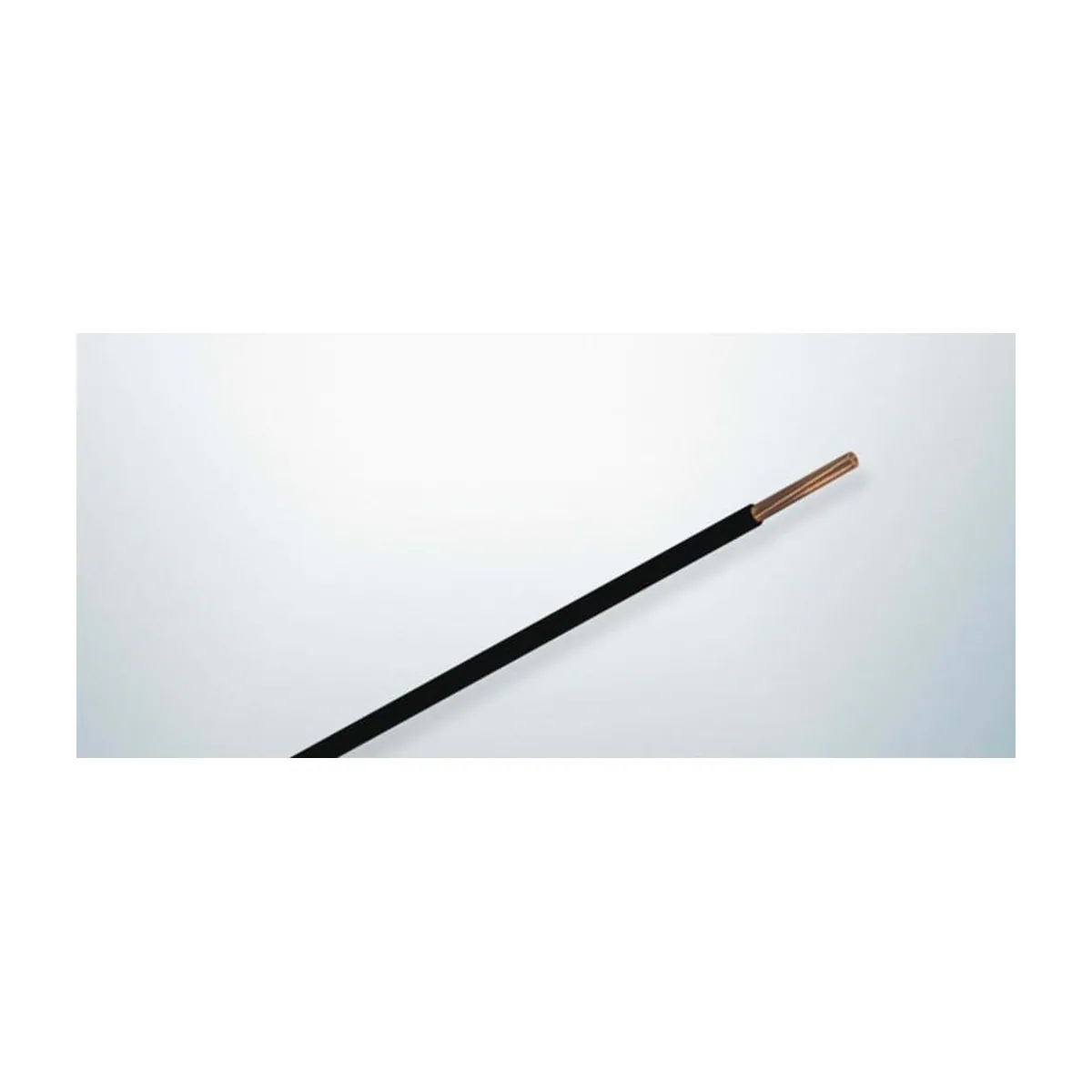

Prysmian NYAF 1x6 mm2 H07V-K Black Cable
- Brand: Prysmian Kablo
- SKU: PRYWB0136
- Price: 4830.90 TRY + VAT · incl. VAT 5797.08 TRY
- Availability: In stock
- NYAF Cables
- Prysmian Kablo NYAF Cables
- Selection guide: NYAF Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Prysmian NYAF 1x6 mm2 H07V-K Black Cable. Key technical features: Core cross-section: 1x6 mm2.
| Core Cross-Section | 1x6 mm² |
|---|---|
| Color | Black |
| Conductor | Fine-stranded copper conductor |
| Insulation Material | PROTODUR® (PVC) |
| Rated Voltage | 450/750 V (şalt ve kumanda panolarındaki mekanik korumalı sabit tesisatlarda kullanıldığında anma gerilimi 600/1000 V) |
| Test Voltage | 2 kV-2,5 kV (AC) |
| Operating Temperature | Max. 70 °C |
| Short-Circuit Temperature | Max. 160 °C |
| Installation Temperature | Min. 0 °C |
| Standards | TS EN 50525-2-31 |
| Flame Retardance / Fire Performance | Aleve dayanıklılık: IEC 60332-1-2; CPR sınıfı: Eca (EN 60332-1-2) |
| Outer Diameter | 4,4 mm (yaklaşık) |
| Conductor Resistance (20 °C) | 3,3 Ω/km (DA) |
| Current Carrying Capacity | Boru içinde: 34 A; Havada: 54 A (30 °C ortam sıcaklığında) |
