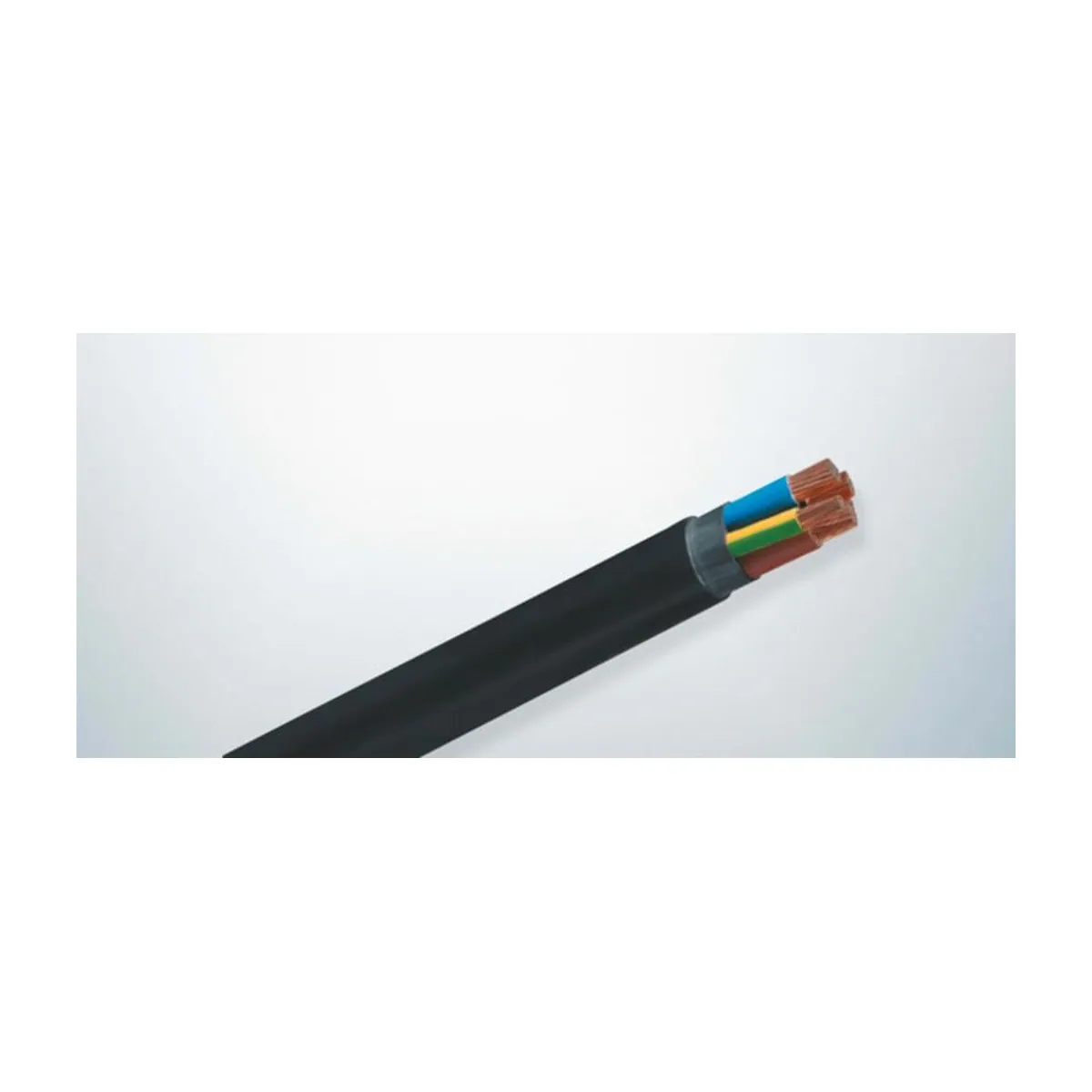

Prysmian NYY 5x2.5 mm2 YVV Underground Power Cable
- Brand: Prysmian Kablo
- SKU: PRYWB0305
- Price: 12091.90 TRY + VAT · incl. VAT 14510.28 TRY
- Availability: In stock
- NYY Cables
- Prysmian Kablo NYY Cables
- Selection guide: NYY Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Prysmian NYY 5x2.5 mm2 YVV Underground Power Cable is a product in the NYY underground power cable product family of the Prysmian Kablo brand. Key technical features: Core cross-section: 5x2.5 mm2.
| Core Cross-Section | 5x2,5 mm² |
|---|---|
| Conductor | Tek veya çok telli, bakır iletken |
| Insulation Material | PROTODUR® (PVC) |
| Outer Sheath Material | PROTODUR® (PVC) |
| Outer Sheath Colour | Black |
| Rated Voltage | 0,6/1 kV |
| Test Voltage | 3,5 kV (AC) |
| Operating Temperature | Max. 70 °C |
| Short-Circuit Temperature | Max. 160 °C (kısa devre zamanı t ≤ 5 sn. için) |
| Installation Temperature | Min. 0 °C |
| Standards | TS IEC 60502-1 |
| Flame Retardance / Fire Performance | Aleve dayanıklılık: IEC 60332-1-2; CPR sınıfı: Eca (EN 60332-1-2) |
| Conductor Resistance (20 °C) | 7,41 Ω/km (DA) |
