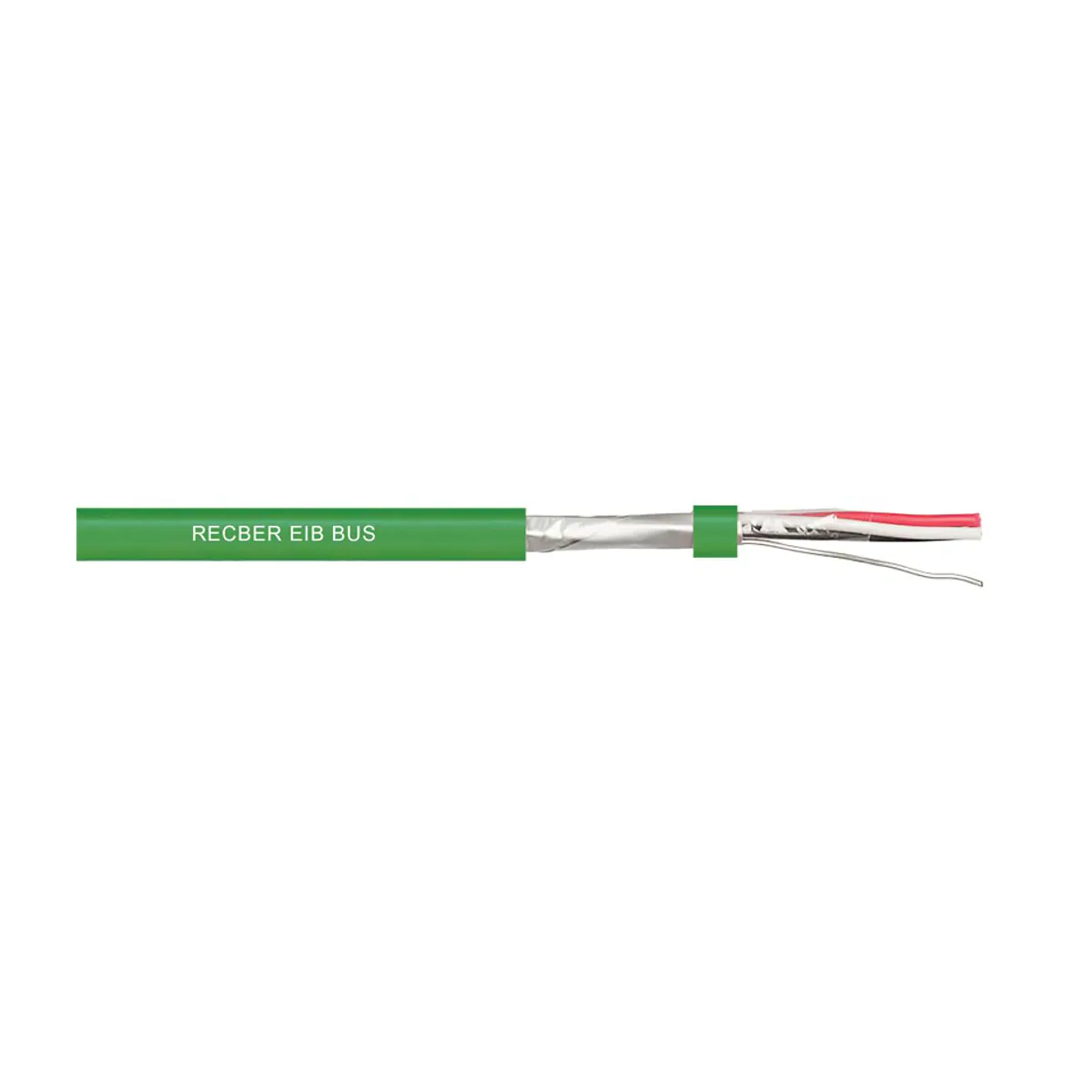

Reçber EIB BUS LSZH 1x2x0.80mm+0.40mm Cable
- Brand: Reçber Kablo
- SKU: 501003
- MPN: 501003
- Price: 2254.20 TRY + VAT · incl. VAT 2705.04 TRY
- Availability: In stock
- EIB-BUS Cables
- Selection guide: Industrial and Fieldbus Communication Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Reçber EIB BUS LSZH 1x2x0.80mm+0.40mm Cable is a product in the Reçber Kablo brand's EIB-BUS cable product family. Key technical features: Cable type: EIB BUS.
| Cable Type | EIB BUS |
|---|---|
| Conductor | Elektrolitik bakır tel |
| Insulation Material | HFFR, 70°C EN 50290-2-26 |
| Core Colour Code | DIN VDE 0815 izole renk kodlamasına uygun |
| Cable Shield | Pet bant min. %100 kapama; Kalaylı bakır tel, toprak teli; Al-Pet bant min. %100 kapama |
| Outer Sheath Material | HFFR, 70°C, EN 50290-2-27 |
| Outer Sheath Colour | Green |
| Operating Voltage | Max. 300 V |
| Operating Temperature | -20 °C … +70 °C |
| Minimum Bending Radius | 10 x D |
| Insulation Resistance | Min. 100 MΩ·km |
| Standards | DIN VDE 0815 |
| Flame Retardance / Fire Performance | Düşey alev yayılma: EN 60332-1-2; Korozif gaz: EN 60754-1/2; Duman yoğunluğu: EN 61034-2 |
