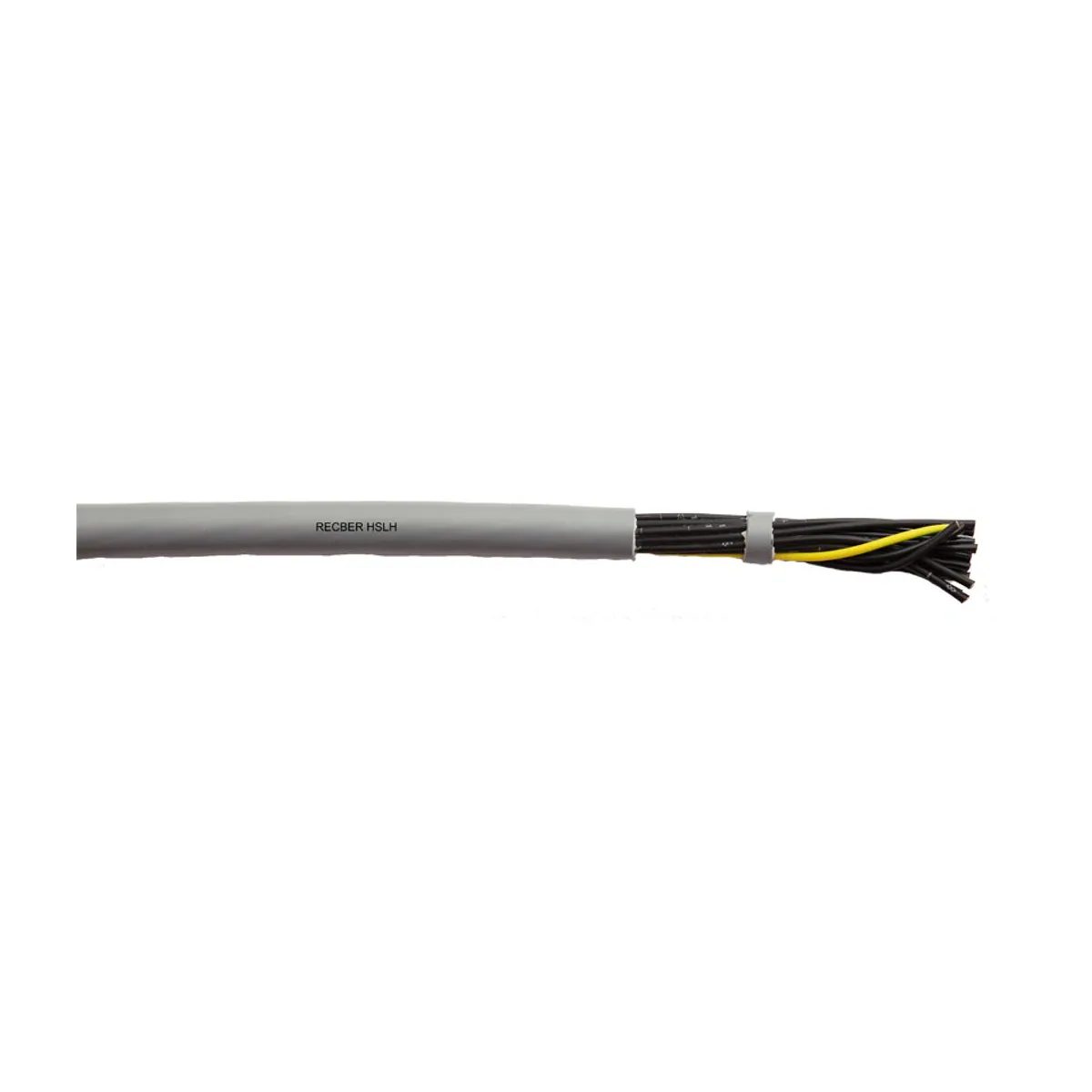

Reçber HSLH-JZ 14G0.75 mm2 Cable
- Brand: Reçber Kablo
- SKU: 220284
- MPN: 220284
- Price: 15160.60 TRY + VAT · incl. VAT 18192.72 TRY
- Availability: In stock
- HSLH Control Cables
- Reçber Kablo HSLH Control Cables
- Selection guide: HSLH Control Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Reçber HSLH-JZ 14G0.75 mm2 Cable is a product in the Reçber Kablo brand's control cable product family. Key technical features: Core cross-section: 0.75 mm2.
| Core Cross-Section | 14x0,75 mm² |
|---|---|
| Conductor | Stranded copper wire, Class 5, IEC 60228 |
| Insulation Material | HFFR (TI6 EN 50363-7) |
| Core Colour Code | EN 50334 izole kodlamasına uygun; toprak koruma damarlı (sarı/yeşil), siyah damar beyaz numara kodlu |
| Outer Sheath Material | HFFR (TM7 EN 50363-8) |
| Outer Sheath Colour | Grey (RAL 7001) |
| Operating Voltage | Max. 300/500 V |
| Test Voltage | 2500 V |
| Operating Temperature | Fixed: -30 °C … +70 °C; Flexible: 0 °C … +50 °C |
| Minimum Bending Radius | Fixed: 7,5 x D; Flexible: 15 x D |
| Conductor Resistance | Max. 26,0 Ω/km |
| Insulation Resistance | Min. 20 MΩ·km |
| Standards | EN 50525-2-51 |
| Flame Retardance / Fire Performance | Düşey alev yayılma: EN 60332-1-2; Korozif gaz: EN 60754-1/2; Duman yoğunluğu: EN 61034-2 |
