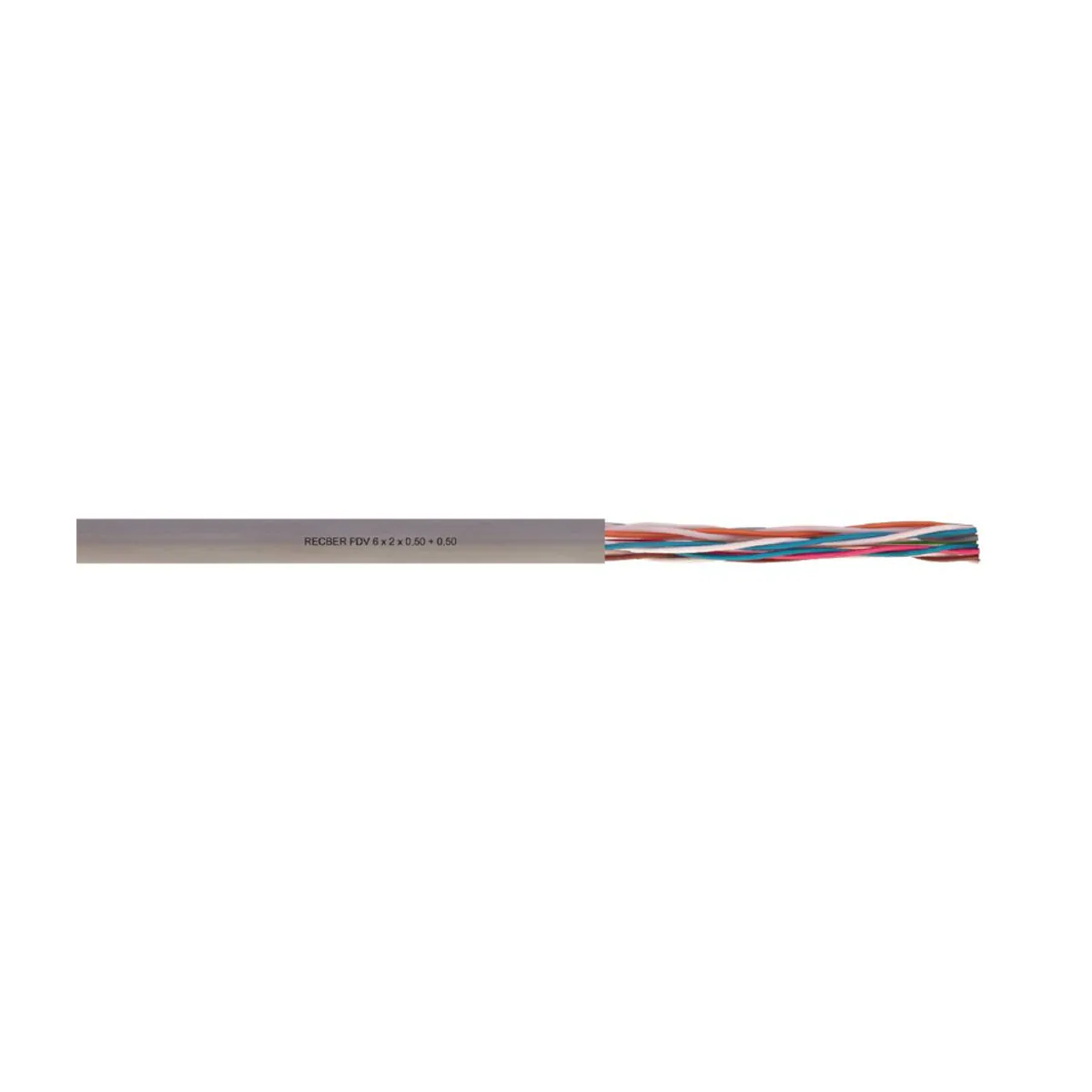

Reçber PDH 30x2x0.50mm+0.50mm Cable
- Brand: Reçber Kablo
- SKU: 402029
- MPN: 402029
- Price: 18400.80 TRY + VAT · incl. VAT 22080.96 TRY
- Availability: In stock
- Telephone Cables
- Selection guide: Telephone Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Reçber PDH 30x2x0.50mm+0.50mm Cable is a product in the Reçber Kablo brand's PDH/PDH-K telephone cable product family. Key technical features: Internal telephone and subscriber distribution applications; Reçber PDH/PDH-K product family.
| Conductor | Elektrolitik bakır tel, Ø 0,50mm |
|---|---|
| Insulation Material | HDPE, 80°C, EN 50290-2-23 |
| Core Colour Code | IEC 60708 izole renk kodlamasına uygun |
| Stranding | 10 çifte kadar damarlar ikili, 10 çift 5 dörtlü (grup), 10 çift üzeri gruplar biraraya getirilerek kablo özü oluşturulur |
| Outer Sheath Material | LSZH/LS0H, 70°C EN 50290-2-27, HM2 DIN VDE 0207-24 |
| Outer Sheath Colour | RAL 7001 Grey |
| Operating Temperature | -30 °C … +70 °C |
| Minimum Bending Radius | 10 x D |
| Conductor Resistance | Max. 97,8 Ω/km |
| Insulation Resistance | Min. 5000 MΩ·km |
| Capacitance Unbalance | Max. 400 pF/500 m |
| Test Voltage | 1000 V |
| Operating Voltage | Max. 250 V |
| Standards | TSE K 116, IEC 60708, IEC 60189-2 |
| Flame Retardance / Fire Performance | Düşey alev yayılma: EN 60332-1-2; Korozif gaz: EN 60754-1/2; Duman yoğunluğu: EN 61034-2 |
| Outer Diameter | 10.9 mm |
| Copper Weight | 108 kg/km |
