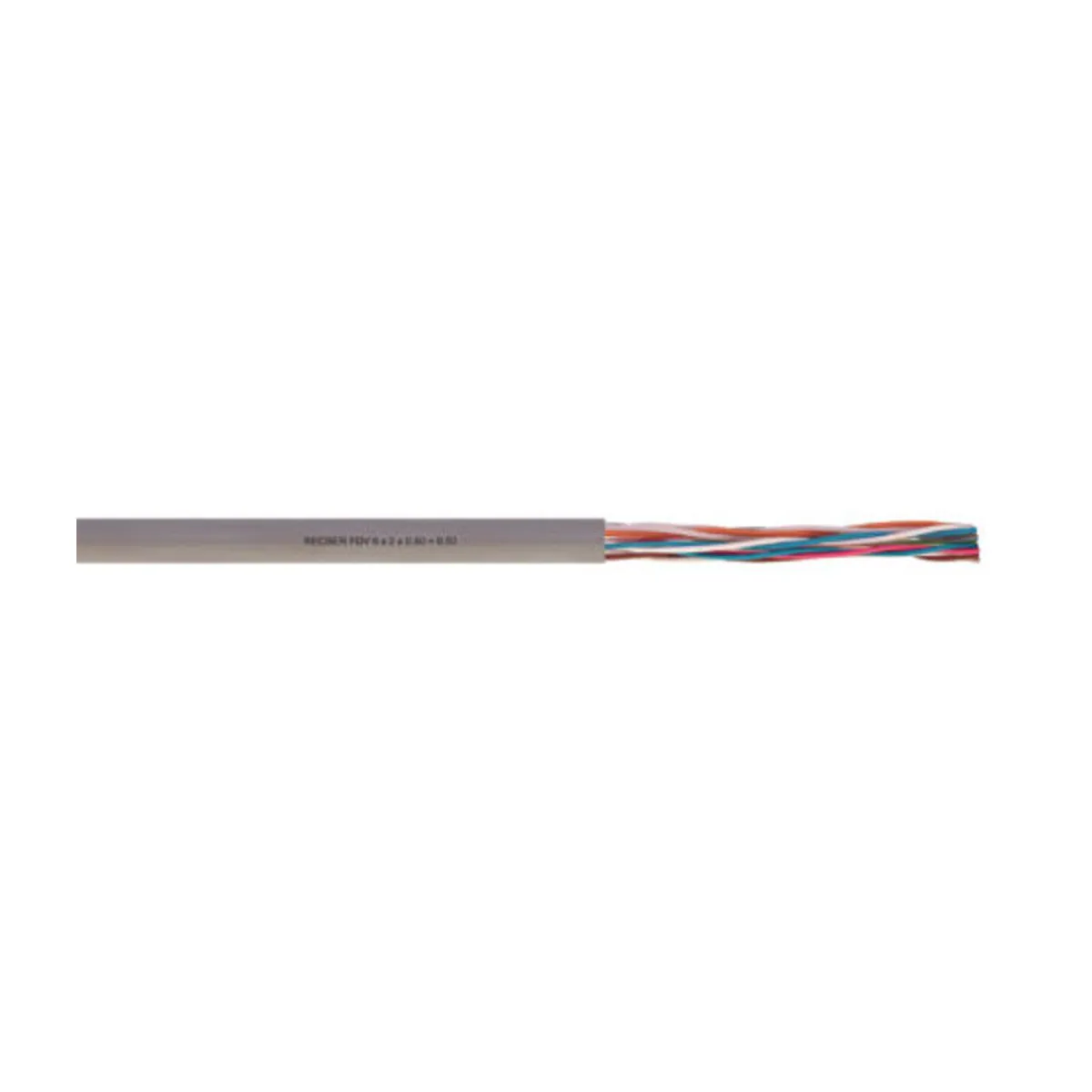

Reçber PDV 1x2x0.50mm+0.50mm Cable
- Brand: Reçber Kablo
- SKU: 401018
- MPN: 401018
- Price: 1023.40 TRY + VAT · incl. VAT 1228.08 TRY
- Availability: In stock
- Telephone Cables
- Selection guide: Telephone Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Reçber PDV 1x2x0.50mm+0.50mm Cable is a product in the Reçber Kablo brand's telephone cable product family.
| Conductor | Elektrolitik bakır tel, Ø 0,50mm |
|---|---|
| Insulation Material | HDPE (80°C, EN 50290-2-23) |
| Core Colour Code | IEC 60708 izole renk kodlamasına uygun |
| Stranding | 10 çifte kadar damarlar ikili, 10 çift 5 dörtlü (grup), 10 çift üzeri gruplar biraraya getirilirek kablo özü oluşturulur. |
| Outer Sheath Material | PVC (TM51 EN 50290-2-22, YM1 DIN VDE 0207-5) |
| Outer Sheath Colour | Grey (RAL 7001) |
| Operating Voltage | Max. 250 V |
| Test Voltage | 1000 V |
| Operating Temperature | -30 °C … +70 °C |
| Minimum Bending Radius | 10 x D |
| Conductor Resistance | Max. 97,8 Ω/km |
| Insulation Resistance | Min. 5000 MΩ·km |
| Standards | ISO/IEC 11801 2nd ed., IEC 61156-5, EN 50173-1, EN 50288-3-1, ANSI EIA/TIA 568-C.2 |
| Flame Retardance / Fire Performance | Düşey alev yayılma: EN 60332-1-2 |
| Outer Diameter | 3 mm |
| Copper Weight | 5 kg/km |
| Capacitance | Max. 56 nF/km |
| Capacitance Unbalance | Max. 400 pF/500 m |
