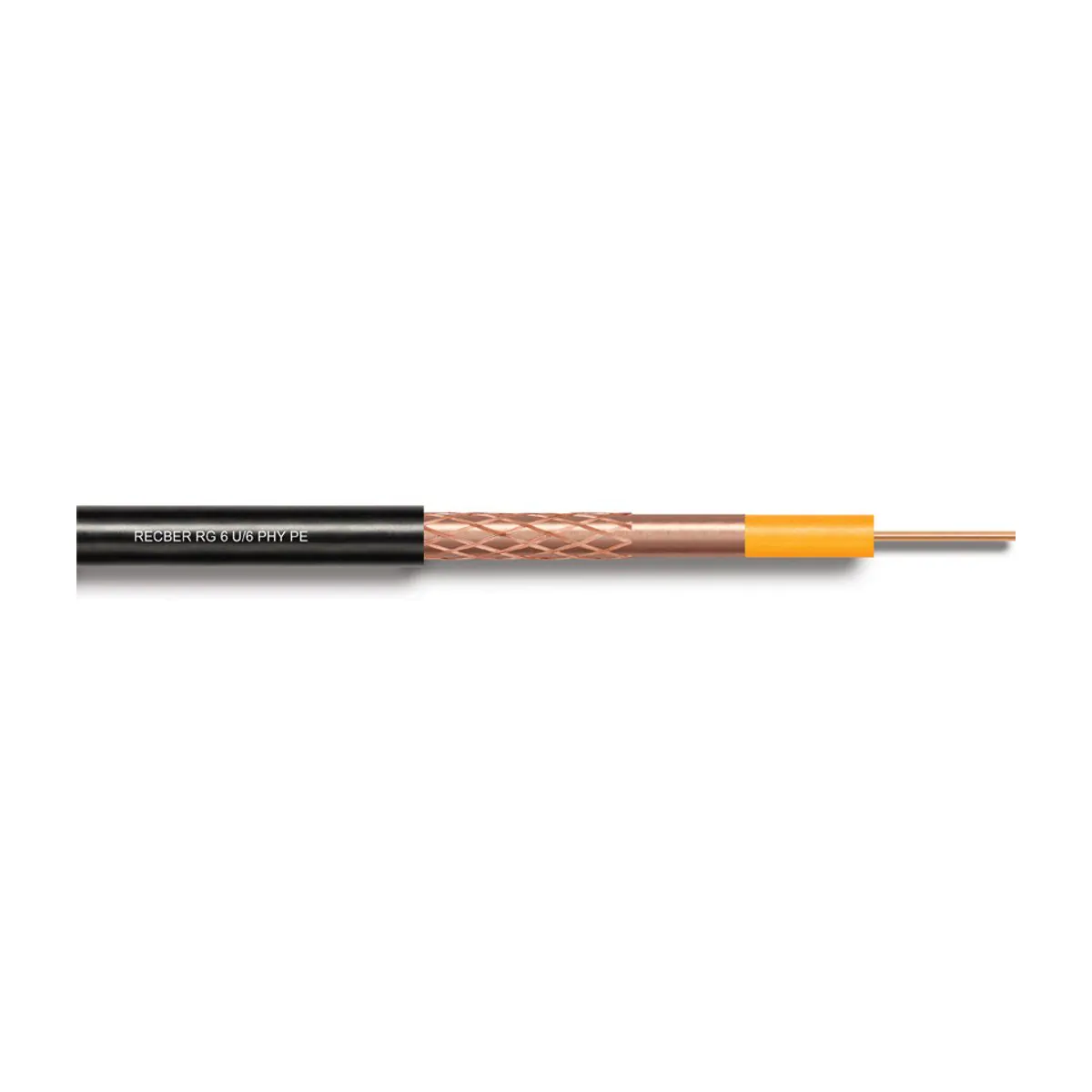

Reçber RG 6 U/6 PHY-PE Class B Cu/Cu Cable
- Brand: Reçber Kablo
- SKU: 307070
- MPN: 307070
- Price: 3083.80 TRY + VAT · incl. VAT 3700.56 TRY
- Availability: In stock
- Satellite-TV Broadcast Cables
- Reçber Kablo Satellite-TV Broadcast Cables
- Selection guide: Satellite-TV Broadcast Cables Selection Guide: Technical Criteria and Engineering Practice
- Calculate cable current-carrying capacity
- Calculate voltage drop
Reçber RG 6 U/6 PHY-PE Class B Cu/Cu Cable is a product in the Reçber Kablo brand's coaxial cable product family.
| Conductor | Elektrolitik bakır tel, Ø 1,02mm (AWG18) |
|---|---|
| Insulation Material | Fiziksel köpüklü PE, Ø 4,60mm (70°C, EN 50290-2-23) |
| Cable Shield | Cu-Pet folyo min. %100 kapama; Elektrolitik bakır tel örgü |
| Outer Sheath Material | PE (80°C, EN 50290-2-24) |
| Outer Sheath Colour | Black (RAL 9011) |
| Operating Voltage | Max. 1300 V |
| Test Voltage | 3000 V |
| Operating Temperature | -40 °C … +70 °C |
| Minimum Bending Radius | 10 x D |
| Insulation Resistance | Min. 2 GΩ·km |
| Standards | EN 50117-2-5, EN 50117, IEC 61196 |
| Flame Retardance / Fire Performance | Düşey alev yayılma: EN 60332-1-2 |
| Outer Diameter | 6.8 mm |
| Copper Weight | 17 kg/km |
| Impedance | 75 ± 3 Ω |
| Capacitance | 52 ± 2 pF/m |
| Velocity of Propagation | %84 ± 2 |
| Attenuation (20 °C, max.) | 50 MHz: 4,74 dB/100m; 200 MHz: 9,29 dB/100m; 470 MHz: 14,35 dB/100m; 860 MHz: 19,72 dB/100m; 1000 MHz: 21,37 dB/100m; 2150 MHz: 32,52 dB/100m; 2400 MHz: 34,59 dB/100m; 3000 MHz: 39,26 dB/100m |
| Return Loss | 5-470 MHz: > 20 dB; 470-1000MHz: > 18 dB; 1000-2000 MHz: > 16 dB; 2000-3000 MHz: > 15 dB |
| Segregation Class | c (EN 50174-2) |
