Reçber SL200 U24 LSZH Category 5e U/UTP 4x2x24AWG Cable
- Brand: Reçber Kablo
- SKU: 505004
- MPN: 505004
- Price: 2495.60 TRY + VAT · incl. VAT 2994.72 TRY
- Availability: In stock
- CAT5e Cables
- Selection guide: CAT5e Cables Selection Guide: Technical Criteria & Application Standards
- Calculate cable current-carrying capacity
- Calculate voltage drop

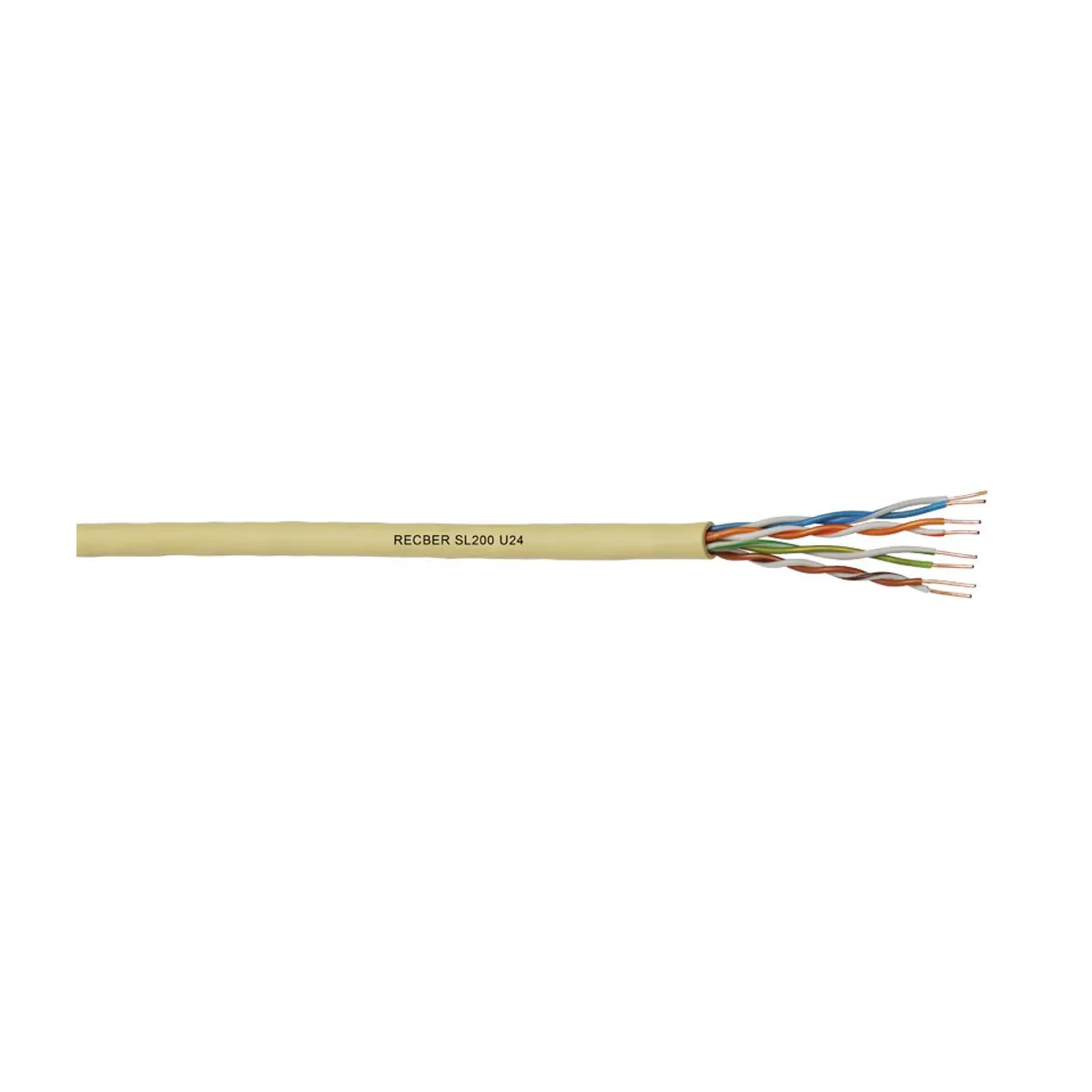

Reçber SL200 U24 LSZH Category 5e U/UTP 4x2x24AWG Cable is a Reçber CAT5e U/UTP Ethernet data cable product used in Ethernet and local area network connections. Product features Model: SL200 U24 Category: Category 5e Shielding: U/UTP Outer sheath: LSZH Core size: 4x2x24 AWG The image is the manufacturer's representative family image; select the product according to the model and size information above.
| Core Cross-Section | 4x2x24 AWG |
|---|---|
| Cable Type | CAT5e U/UTP |
| Conductor | Elektrolitik bakır tel, Ø 24AWG |
| Insulation Material | HDPE, 80°C, EN 50290-2-23 |
| Core Colour Code | TIA 568 izole renk kodlamasına uygun |
| Outer Sheath Material | LSZH/LS0H, 70°C, EN 50290-2-27 |
| Outer Sheath Colour | RAL 1015 Krem |
| Test Voltage | 1000 V |
| Operating Temperature | Fixed: -20 °C … +60 °C; Flexible: 0 °C … +50 °C |
| Minimum Bending Radius | Fixed: 4 x D; Flexible: 8 x D |
| Conductor Resistance | Max. 95 Ω/km |
| Insulation Resistance | Min. 5000 MΩ·m |
| Standards | ISO/IEC 11801 2nd ed., IEC 61156-5, EN 50173-1, EN 50288-3-1, ANSI EIA/TIA 568-C.2 |
| Flame Retardance / Fire Performance | Düşey alev yayılma: EN 60332-1-2; Korozif gaz: EN 60754-1/2; Duman yoğunluğu: EN 61034-2 |
| Outer Diameter | 5 mm |
| Copper Weight | 15 kg/km |
| Impedance | 100 ± 5 Ω @100MHz |
| Capacitance | Nom. 50 pF/m |
| Velocity of Propagation | 67-69% |
| Capacitance Unbalance | Max. 1600 pF/km |
| Tensile Strength | Max. 85 N |
| Crush Resistance | Min. 1000 N/10cm |
| Shock resistance | Min. 10 darbe |
| Resistance Unbalance | Max. 2% |
| Propagation Delay | Max. 537 ns/100m |
| Signal Delay | Max. 45 ns/100m |
| TCL | Min. “Seviye 2” |
| Coupling Attenuation | “Tip III” |
| Segregation Class | “b” EN 50174-2 |
| Attenuation (max.) | 1 MHz: 2,1 dB/100m; 4 MHz: 4 dB/100m; 10 MHz: 6,3 dB/100m; 16 MHz: 8 dB/100m; 31,25 MHz: 11,4 dB/100m; 62,50 MHz: 16,5 dB/100m; 100 MHz: 21,3 dB/100m |
