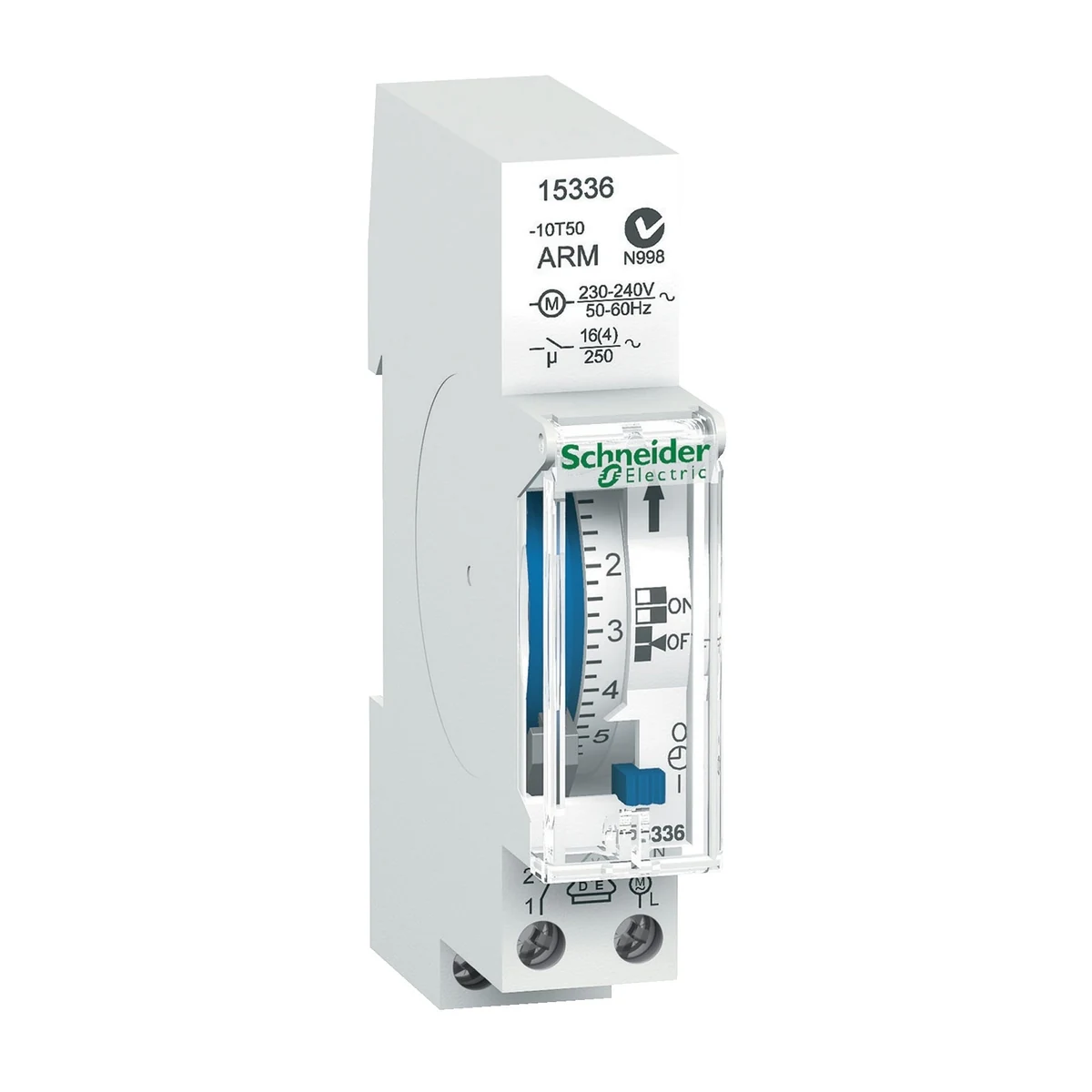

Schneider Electric 15336 IH, 24 hours, 1 ON-OFF contact outputs, 100 hours reserve

• Brand: Schneider Electric
• SKU: 15336
• MPN: 15336
• Price: 3280.38 TRY + VAT · incl. VAT 3936.46 TRY
• Availability: In stock
• Programmable Timer Relays
• Selection guide: Programmable Timer Relays Selection Guide: Technical Criteria & Application Standards
• Schneider Electric 15336 Teknik Veri Föyü (PDF)

Schneider Electric 15336 IH, 24 hours, 1 ON-OFF contact outputs, 100 hours reserve. Technical specifications of this model: Short Device Name: IH Backup Time: clock and program retention for 150 hours Adjustment Type: MANUAL TIME CHANGEOVER Product Type: Mechanical time clock Mounting Support: DIN rail Power Consumption: 0.5 W Height: 90 mm Device Application: BUILDING Product Weight: 0.101 kg Measurement Accuracy: +/- 1 S/DAY 20 °C 9 mm Number of Module Pitches: 2 Minimum Interval Time: 15 MIN Series: ACTI9 Manufacturer Product Name: ACTI9 IH Product Family: Acti9 Maximum Number of Switching Operations: 48 ON - 48 OFF IP Rating: Terminals: IP20 B Operating Ambient Temperature: -10…50 °C Rated Operational Voltage: 230...240 V AC AT 50...60 Hz Cycle Time: 24 H Battery Life: 10 YEAR(S) Load Type: PARALLEL-CORRECTED FLUORESCENT TUBE 5 X 58 W 4.7 µFPARALLEL-CORRECTED FLUORESCENT TUBE 7 X 40 W 7 µFPARALLEL-CORRECTED FLUORESCENT TUBE 2 X 100 W 18 µF230 V AC HALOGEN LAMP 1000 W230 V AC INCANDESCENT LAMP 1000 WFLUOCOMPACT LAMP 700 VACOMPACT FLUORESCENT LAMP 150 WLED LAMP < 2 W 30 WLED LAMP >= 2 W 300 W Channel Count: 1 Width: 18 mm Maximum Switching Current: 16 A - 250 V AC PF = 14 A - 250 V AC PF = 0.6 Available functions: MANUAL TIME CHANGEOVER Depth: 66 mm Connection Terminals: Screw terminals Color Tone: White (RAL 9003)
