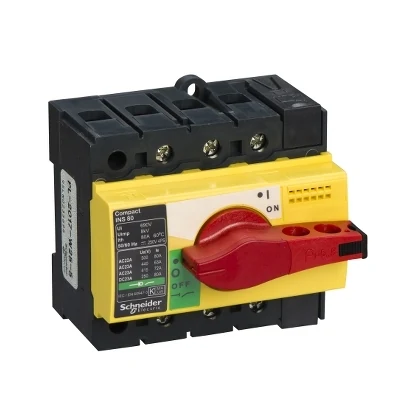

Schneider Electric 28920 ComPacT, yellow-red, safety load disconnector, INS80
- Brand: Schneider Electric
- SKU: 28920
- MPN: 28920
- Price: 6477.37 TRY + VAT · incl. VAT 7772.84 TRY
- Availability: Made to order
- Load Break Switches
- Schneider Electric Load Break Switches
- Selection guide: Load Break Switches Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric 28920 Teknik Veri Föyü (PDF)
Schneider Electric 28920 ComPacT, yellow-red, safety load disconnector, INS80.
| Series | Compact |
|---|---|
| Product Type | Bağlantı kesici |
| Pole Arrangement | 3P |
| Current Type | DC; AC |
| Mains Frequency | 50/60 Hz |
| Rated Insulation Voltage (Ui) | 690 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Conventional Free Air Thermal Current (Ith) | 80 A @ 60 °C |
| Rated Short-Circuit Making Capacity (Icm) | 15 kA sadece load ayırıcı 500 V AC @ 50/60 Hz; 75 kA şebeke tarafı koruma devre kesicisi ile 500 V AC @ 50/60 Hz |
| Rated Operational Voltage (Ue) | 125 V DC; 500 V AC 50/60 Hz |
| Suitable for Isolation | Yes |
| Contact Position Indication | Yes |
| Apparent Breaking | None |
| Pollution Degree | 3 |
| Control Type | Döner kol |
| Handle Color | Red |
| Mounting Type | Fixed |
| Mounting Support | DIN rayı; Plaka |
| Top Connection | Front |
| Bottom Connection | Front |
| Cable Cross-Section | 1.5–50 mm² |
| Maximum Power | AC-23: 22 kW @ 500/525 V AC 50/60 Hz; AC-23: 22 kW @ 220/240 V AC 50/60 Hz; AC-23: 37 kW @ 380/415 V AC 50/60 Hz; AC-23: 37 kW @ 440 V AC 50/60 Hz |
| Rated Duty | Kesintisiz |
| Intermittent Duty Class | Sınıf % 120 - 60 |
| Rated Short-time Withstand Current Low Voltage (Icw) | 0,67 kA süresince 20 s (IEC 60947-3); 1,73 kA süresince 3 s (IEC 60947-3); 3 kA süresince 1 sn (IEC 60947-3); 0,55 kA süresince 30 s (IEC 60947-3) |
| Mechanical Endurance | 20000 cycles |
| Connection Range | 18 mm |
| Height | 85 mm |
| Width | 90 mm |
| Depth | 62.5 mm |
| Product Weight | 0.5 kg |
| Standards | IEC 60947-3; IEC 60947-1 |
| Certifications | KEMA-KEUR; CCC |
| IP Rating | IP40 |
| IK Impact Protection | IK07 (EN 50102) |
| Operating Ambient Temperature | -25…70 °C |
| Storage Temperature | -50…85 °C |
