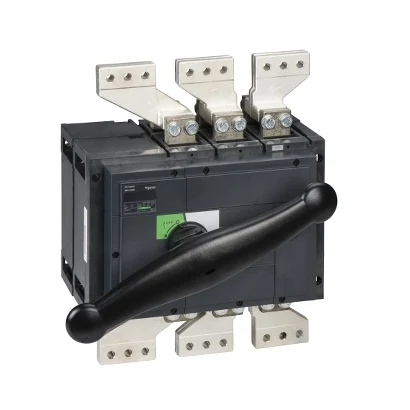

Schneider Electric 31340 ComPacT, INS2500
- Brand: Schneider Electric
- SKU: 31340
- MPN: 31340
- Price: 247029.47 TRY + VAT · incl. VAT 296435.36 TRY
- Availability: In stock
- Horizontal Type Load Break Switches
- Schneider Electric Horizontal Type Load Break Switches
- Selection guide: Horizontal Type Load Break Switches Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric 31340 Teknik Veri Föyü (PDF)
Schneider Electric 31340 ComPacT, INS2500.
| Series | Compact |
|---|---|
| Product Type | Bağlantı kesici |
| Pole Arrangement | 3P |
| Current Type | AC; DC |
| Mains Frequency | 50/60 Hz |
| Rated Insulation Voltage (Ui) | 1000 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Conventional Free Air Thermal Current (Ith) | 2500 A @ 60 °C |
| Rated Short-Circuit Making Capacity (Icm) | 105 kA sadece load ayırıcı 690 V AC @ 50/60 Hz; 330 kA şebeke tarafı koruma devre kesicisi ile 690 V AC @ 50/60 Hz |
| Rated Operational Voltage (Ue) | 125 V DC; 690 V AC 50/60 Hz |
| Suitable for Isolation | Yes |
| Contact Position Indication | Yes |
| Apparent Breaking | None |
| Pollution Degree | 3 |
| Control Type | Doğrudan ön makaralı kol |
| Handle Color | Black |
| Mounting Type | Fixed |
| Mounting Support | Plaka; Ray |
| Top Connection | Front |
| Bottom Connection | Front |
| Rated Duty | Kesintisiz |
| Intermittent Duty Class | Sınıf % 120 - 60 |
| Mechanical Endurance | 3000 cycles |
| Connection Range | 70 mm |
| Height | 440 mm |
| Width | 347.5 mm |
| Depth | 227.5 mm |
| Product Weight | 35 kg |
| Standards | IEC 60947-1; IEC 60947-3 |
| Certifications | KEMA-KEUR |
| IP Rating | IP40 |
| IK Impact Protection | IK07 (EN 50102) |
| Operating Ambient Temperature | -25…70 °C |
| Storage Temperature | -50…85 °C |
