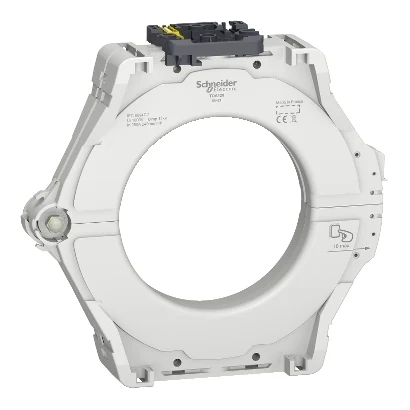

Schneider Electric 50421 SPLIT TOROID TOA DIA. 120 mm
- Brand: Schneider Electric
- SKU: 50421
- MPN: 50421
- Price: 96020.68 TRY + VAT · incl. VAT 115224.82 TRY
- Availability: In stock
- Toroidal Current Transformers
- Selection guide: Toroidal Current Transformers Selection Guide: Technical Criteria & Application Standards
- Schneider Electric 50421 Teknik Veri Föyü (PDF)
Schneider Electric 50421 SPLIT-CORE TOROID TOA DIA. 120 mm.
| Series | VigiPacT |
|---|---|
| Product Type | Toprak kaçağı akım sensörü |
| Device Application | Ekipman izleme ve kontrolü |
| Current Sensor Type | OA-tipi parçalı toroid |
| Rated Operational Current (Ie) | 250 A |
| Mains Frequency | 50/60 Hz; 400 Hz |
| Rated Short-Circuit Withstand Current (Ik) | 85 kA için 0,5 sn |
| Residual Short-Circuit Withstand Current | 85 kA / 0,5 sn (IEC 60947-2) |
| Rated Insulation Voltage (Ui) | 1000 V |
| Overvoltage category | IV |
| Rated Lightning Impulse Withstand Voltage (Up) | 12 kV |
| Mounting Method | Sabit (kablolar); Sabit (düz devre kartı); Sabit (profilli metal levha); Sabit (slotlu devre kartı) |
| Connection Terminals | Vidalı bağlantı 0,22…2,5 mm² |
| Diameter | Dahili: 120 mm |
| Product Weight | 1.5 kg |
| Height | 205 mm |
| Width | 225 mm |
| Depth | 50 mm |
| IP Rating | Gövde: IP40; Konnektörler: IP20 |
| Pollution Degree | Seviye 3 (IEC 60664-1) |
| Operating Ambient Temperature | -35…70 °C |
| Storage Temperature | -55…85 °C |
| Standards | IEC60947-2 |
| Certifications | CE |
