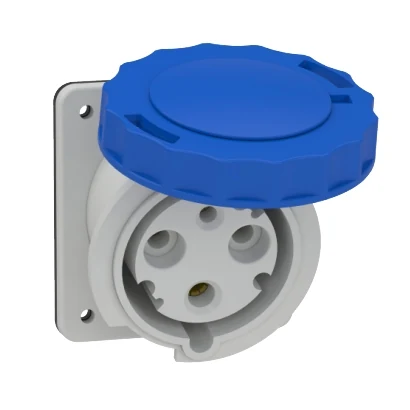

Schneider Electric 81278 Angled machine socket
- Brand: Schneider Electric
- SKU: 81278
- MPN: 81278
- Price: 4920.57 TRY + VAT · incl. VAT 5904.68 TRY
- Availability: Made to order
- CEE Angled Panel Sockets
- Schneider Electric CEE Angled Panel Sockets
- Selection guide: CEE Angled Panel Sockets Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric 81278 Teknik Veri Föyü (PDF)
Schneider Electric 81278 Angled machine socket. Technical specifications of this model: Series: PK-Pratika
| Series | PK-Pratika |
|---|---|
| Product Type | Soket |
| Plug / Socket Category | Düşük gerilim |
| Pole Arrangement | 2P+E |
| Current Type | AC |
| Socket Standard | Endüstriyel |
| Mounting Type | Panel montajlı |
| Rated Current (Ir) | 63 A |
| Rated Operational Voltage (Ue) | 200–250 V |
| Mains Frequency | 50/60 Hz |
| Earth Lug Clock Position | 6 saat |
| Plug / Socket Material | Muhafaza: kendiliğinden sönen mühendislik polimeri |
| Contact Material | Pimler: paslanmaz çelik; Bilezikler: nikel kaplı pirinç; Yaylar: paslanmaz çelik |
| Connection Terminals | Tamamen gevşek halde tutucu vidalar |
| Cable Cross-Section | 6–25 mm² |
| Product Weight | 0.424 kg |
| Base Size | 100 x 107 mm |
| Height | 107 mm |
| Width | 108 mm |
| Depth | 129 mm |
| Color | Grey (RAL 7035) |
| Voltage Color | Blue |
| Standards | TR 60309-2; TR 60309-1 |
| IP Rating | IP67 |
| IK Impact Protection | IK08 (EN 62262) |
| Fire Resistance | 850 °C (IEC 60695-2-11) |
| Relative Humidity | 50 % @ 40 °C; 70 % @ 30 °C; 90 % @ 20 °C |
