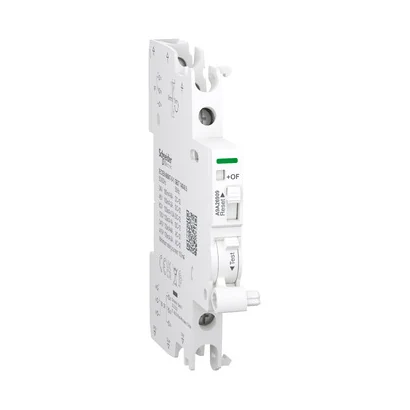

Schneider Electric A9A26909 iOF/SD+OF (OF+OF or SD+OF) NEW
- Brand: Schneider Electric
- SKU: A9A26909
- MPN: A9A26909
- Price: 1009.86 TRY + VAT · incl. VAT 1211.83 TRY
- Availability: Made to order
- Auxiliary Contacts
- Schneider Electric Auxiliary Contacts
- Selection guide: Switchgear Auxiliary and Trip Alarm Contacts Selection Guide
- Schneider Electric A9A26909 Teknik Veri Föyü (PDF)
Schneider Electric A9A26909 iOF/SD+OF (OF+OF or SD+OF) NEW.
| Series | Acti9 |
|---|---|
| Product Type | Çift AK veya hata kontağı |
| Signalling Contact Arrangement | 2 K/A |
| Rated Current (In) | 0,1…6 A at 24…240 V, AC 50/60 Hz; 0,1…3 A at 415 V, AC 50/60 Hz; 0,1…6 A at 24 V, DC; 0,1…2 A at 48 V, DC; 0,1…1,5 A at 60 V, DC; 0,1…1 A at 130 V, DC |
| Number of 9 mm Pitches | 1 |
| Standards | EN/IEC 60947-5-1; GB/T 14048,5 |
| Certifications | CE; UKCA |
| Quality Labels | EAC; CCC; CMIM |
| Compatible Series | Acti9 iC60; Acti9 iID; Acti9 ARA; Acti9 RCA; Acti9 iDPN Vigi; Acti9 iC40; Acti9 iSW-NA; Acti9 iCVm40; Acti9 iCVr40; Acti9 iDDm40 |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| On-device Signalling | Mekanik gösterge |
| Mounting Type | Takılabilir |
| Mounting Position | Devre kesicinin sol tarafı |
| Mounting Support | DIN rayı |
| Comb Busbar Compatibility | NA |
| Height | 90 mm |
| Width | 9 mm |
| Depth | 73 mm |
| Product Weight | 43 g |
| Color | White |
| Cable Stripping Length | 10 mm |
| Tightening Torque | 1 N.m üst ve alt |
| IP Rating | IP20 |
| Pollution Degree | 3 |
| Tropical Climate Resistance | 2 |
| Relative Humidity | 95 % @ 55 °C |
| Operating Ambient Temperature | -35…70 °C |
| Storage Temperature | -40…85 °C |
