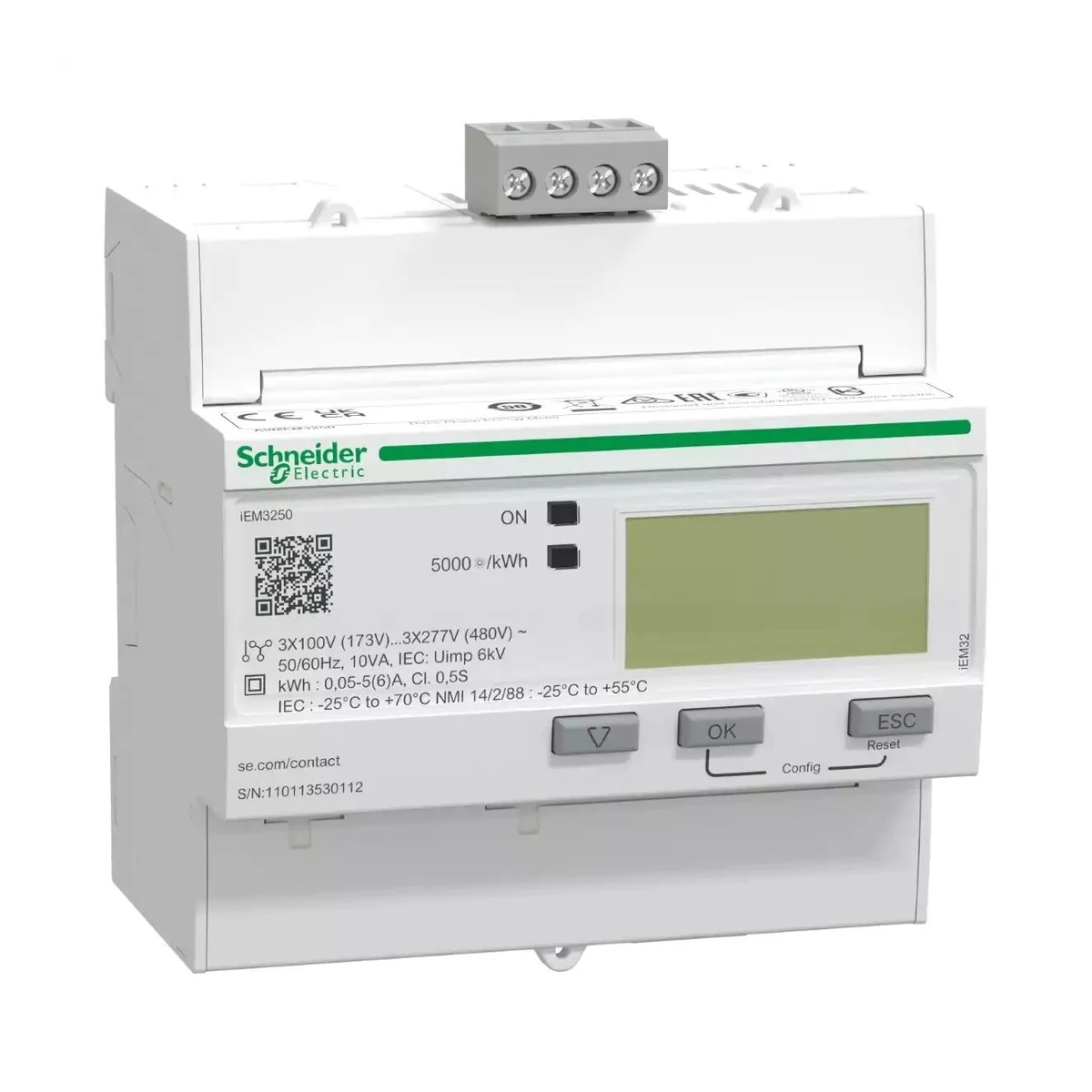

Schneider Electric A9MEM3250 iEM3250, Current Transformer-Connected 3-Phase kWh Meter, Modbus
- Brand: Schneider Electric
- SKU: A9MEM3250
- MPN: A9MEM3250
- Price: 15345.52 TRY + VAT · incl. VAT 18414.62 TRY
- Availability: Made to order
- Current Transformers
- Schneider Electric Current Transformers
- Selection guide: Current Transformers Selection Guide
- Schneider Electric A9MEM3250 Teknik Veri Föyü (PDF)
Schneider Electric A9MEM3250 iEM3250, Current Transformer-Connected 3-Phase kWh Meter, Modbus. Technical specifications of this model: Communication Protocol: Modbus Manufacturer Product Group: kWh meters
| Communication Protocol | Modbus |
|---|---|
| Manufacturer Product Group | kWH ölçerler |
| Series | Acti9 |
| Product Type | Enerji ölçer |
| Pole Arrangement | 1P+N; 3P; 3P+N |
| Measurement Type | Aktif enerji; Akım; Gerilim; Etkin güç |
| Device Application | Alt faturalandırma; Kısmi ölçüm cihazı |
| Accuracy Class | Class 0.5S aktif enerji (IEC 62053-22); Class 0.5S aktif enerji (IEC 61557-12) |
| Input Type | Akım trafosu 1 A veya 5 A |
| Rated Current (Ir) | 5 A; 1 A |
| Rated Voltage | 100…277 V; 173…480 V |
| Mains Frequency | 50 Hz; 60 Hz |
| Technology Type | Elektronik |
| Display Type | LCD ekran |
| Sampling Rate | 32 örnek/döngü |
| Measuring Current | 1–32767000 mA |
| Maximum Measured Value | 99999999 MWh |
| Communication Port Support | Vidalı terminal bloğu: RS485 |
| Local Signalling | Yeşil gösterge ışığı: güç AÇIK; Sarı yanıp sönen LED: doğruluk kontrolü; Sarı gösterge ışığı: haberleşme Modbus portunda etkin (Modbus) |
| Number of Inputs | 0 |
| Number of Outputs | 0 |
| Mounting Type | Takılabilir |
| Mounting Support | DIN rayı |
| Connection Terminals | Akım devresi: vidalı terminaller 6 mm² kablo(lar); Gerilim devresi: vidalı terminaller 2,5 mm² kablo(lar) |
| Overvoltage category | III |
| IP Rating | IP40 ön panel: (IEC 60529); IP20 gövde: (IEC 60529) |
| Pollution Degree | 2 |
| Relative Humidity | 5…95 % @ 50 °C |
| Operating Ambient Temperature | -25…70 °C - IEC |
| Storage Temperature | -40…85 °C |
| Operating Altitude | < 3000 m |
| Color | White |
| Number of 9 mm Pitches | 10 |
| Width | 90 mm |
| Height | 95 mm |
| Depth | 69 mm |
