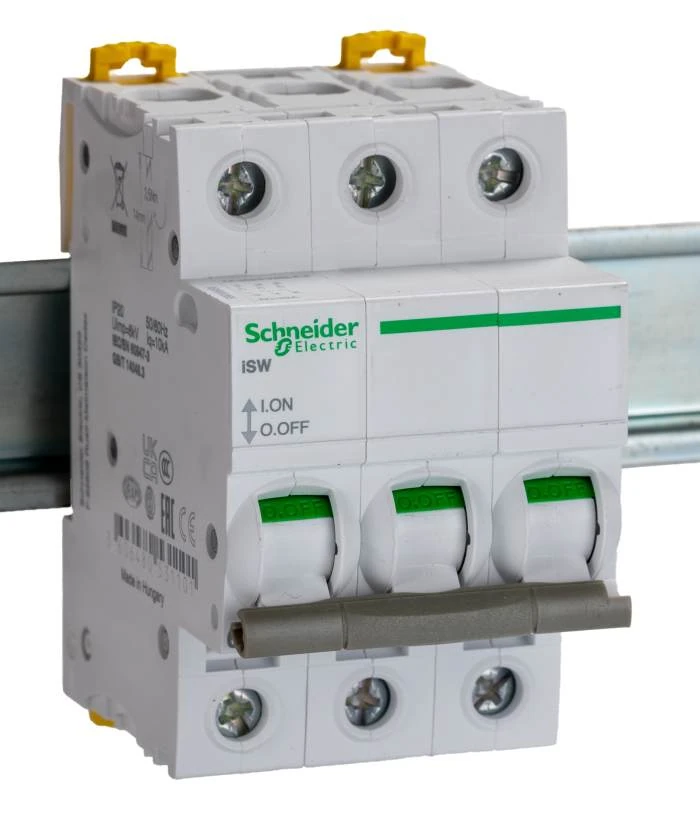

Schneider Electric A9S65363 Load Break Switch iSW, 3P, 63 A
- Brand: Schneider Electric
- SKU: A9S65363
- MPN: A9S65363
- Price: 2590.95 TRY + VAT · incl. VAT 3109.14 TRY
- Availability: Made to order
- Modular Switches
- Selection guide: Switches Selection Guide
- Schneider Electric A9S65363 Teknik Veri Föyü (PDF)
Schneider Electric A9S65363 Load Break Switch iSW, 3P, 63 A. Technical specifications of this model: Series: ACTI9
| Series | Acti9 |
|---|---|
| Product Type | load Ayırıcı |
| Device Application | İzolasyon; Kontrol |
| Pole Arrangement | 3P |
| Utilization Category | AC-22A |
| Suitable for Isolation | Yes |
| Rated Operational Current (Ie) | 63 A @ 415 V AC 50/60 Hz |
| Rated Operational Voltage (Ue) | 415 V AC 50/60 Hz |
| Rated Short-Circuit Making Capacity (Icm) | 5 kA sadece load ayırıcı |
| Rated Short-time Withstand Current Low Voltage (Icw) | 1260 A |
| Rated Insulation Voltage (Ui) | 500 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Control Type | Feed-through |
| On-device Signalling | AÇIK/KAPALI göstergesi |
| Contact Position Indication | Yes |
| Mounting Type | Fixed |
| Mounting Support | DIN rayı |
| Comb Busbar Compatibility | Üst veya alt: EVET |
| Number of 9 mm Pitches | 6 |
| Height | 85 mm |
| Width | 54 mm |
| Depth | 73 mm |
| Color | White |
| Mechanical Endurance | 20000 cycles |
| Electrical Endurance | 15000 cycles |
| Cable Stripping Length | 14 mm |
| Tightening Torque | 3,5 N.m |
| Standards | IEC 60947-3; EN 60947-3 |
| IP Rating | IP20 |
| Pollution Degree | 3 |
| Tropical Climate Resistance | 2 |
| Relative Humidity | 95 % @ 55 °C |
| Operating Ambient Temperature | -25…60 °C |
| Storage Temperature | -40…85 °C |
