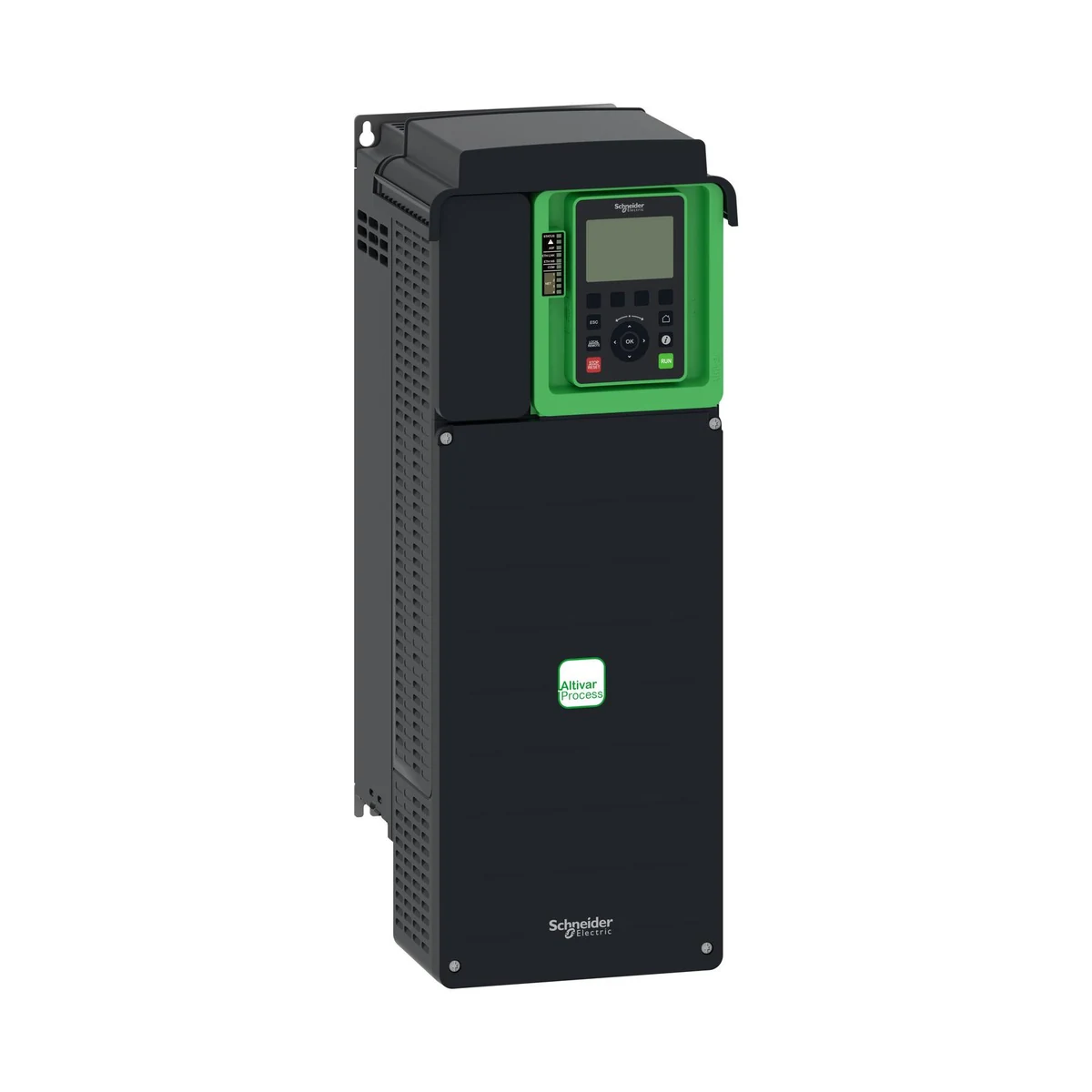

Schneider Electric ATV630D15N4 ATVProcess :VARIABLE SPEED DRIVE IP21 15kW 400V/480V
- Brand: Schneider Electric
- SKU: ATV630D15N4
- MPN: ATV630D15N4
- Price: 166854.70 TRY + VAT · incl. VAT 200225.64 TRY
- Availability: Made to order
- Variable Frequency Drives (Frequency Inverters)
- Schneider Electric Variable Frequency Drives (Frequency Inverters)
- Selection guide: What Is a Frequency Inverter? Drive Selection Guide
Schneider Electric ATV630D15N4 ATVProcess :VARIABLE SPEED DRIVE IP21 15kW 400V/480V. Technical specifications of this model: IP Rating: IP21 Motor Power: 15kW Series: ALTIVAR PROCESS ATV600 Product Type: Frequency Converter Short Device Name: ATV630 Communication Port Protocol: ETHERNETMODBUS SERIALMODBUS TCP Supply Frequency: 50...60 Hz - 5...5 % Number of Digital Inputs: 8 Number of Analog Inputs: 3 Number of Analog Outputs: 2 Number of Relay Outputs: 3 Number of Mains Phases: 3 PHASES Rated Switching Frequency: 4 kHz Mains Frequency: 50...60 Hz Width: 211 mm Height: 546 mm Depth: 232 mm Product Weight: 13.6 kg Storage Temperature: -40…70 °C
| IP Rating | IP21 |
|---|---|
| Motor Power | 15 kW |
| Series | ALTIVAR PROCESS ATV600 |
| Product Type | Frekans Konvertörü |
| Short Device Name | ATV630 |
| Communication Port Protocol | ETHERNETMODBUS SERIALMODBUS TCP |
| Supply Frequency | 50...60 Hz - 5...5 % |
| Number of Digital Inputs | 8 |
| Number of Analog Inputs | 3 |
| Number of Analog Outputs | 2 |
| Number of Relay Outputs | 3 |
| Number of Mains Phases | 3 PHASES |
| Rated Switching Frequency | 4 kHz |
| Mains Frequency | 50–60 Hz |
| Width | 211 mm |
| Height | 546 mm |
| Depth | 232 mm |
| Product Weight | 13.6 kg |
| Storage Temperature | -40…70 °C |
